J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0811)

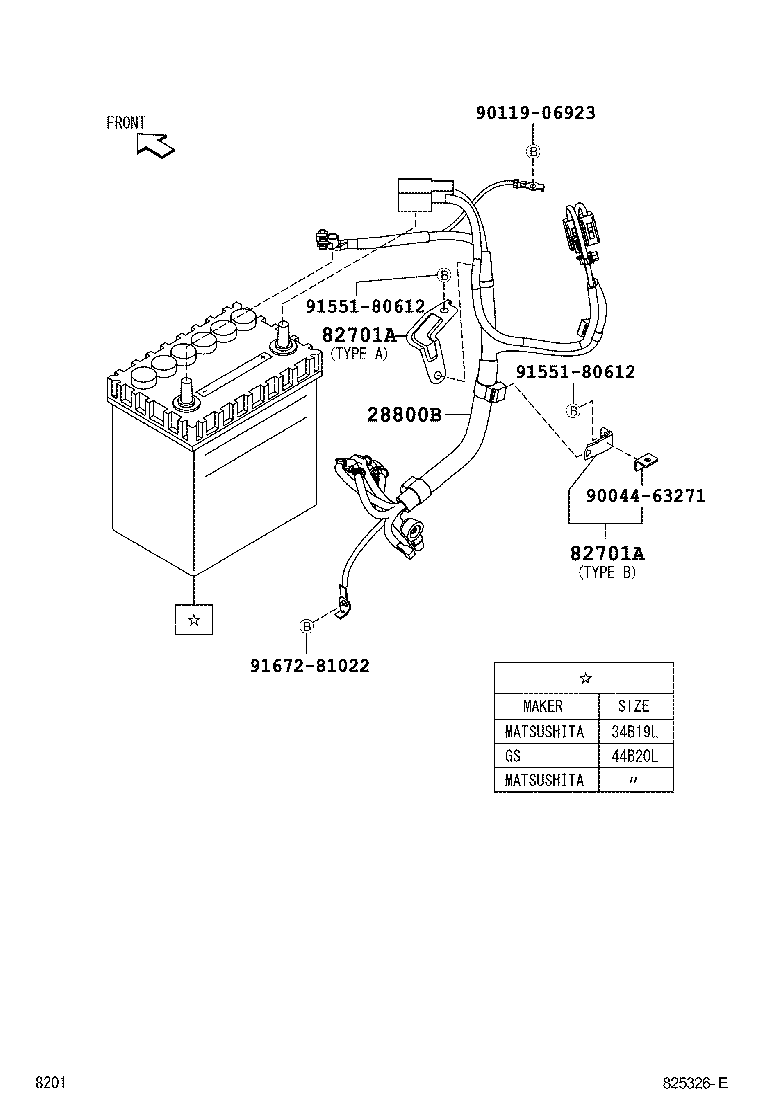

Click highlighted areas on diagram

diagram 28800B 82701A 82701A 9004463271 9011906923 9155180612 9155180612 9167281022
Part # Description Qty Price
28800B - CABLE, BATTERY TO GROUND
82122-B4040

3SZVE..J200,210

寒冷地仕様&ｼｰﾄ ﾋｰﾀｰ 有り

 1
82122-B4020

3SZVE..J200,210

寒冷地 ｽﾍﾟｼｬﾙ

 1
82122-B4030

3SZVE..J200,210

寒冷地 ｽﾍﾟｼｬﾙ&ｼｰﾄ ﾋｰﾀｰ 有り

 1
82122-B4010

3SZVE..J200,210

 1
82701A - BRACKET SUB-ASSY, WIRE HARNESS
82715-B4020

J200,210

ﾀｲﾌﾟ A

 1
82715-B4050

J200,210

ﾀｲﾌﾟ B

 1
82701A - BRACKET SUB-ASSY, WIRE HARNESS
82715-B4020

J200,210

ﾀｲﾌﾟ A

 1
82715-B4050

J200,210

ﾀｲﾌﾟ B

 1
Common parts
90044-63271
90119-06923
91551-80612
91672-81022
