J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

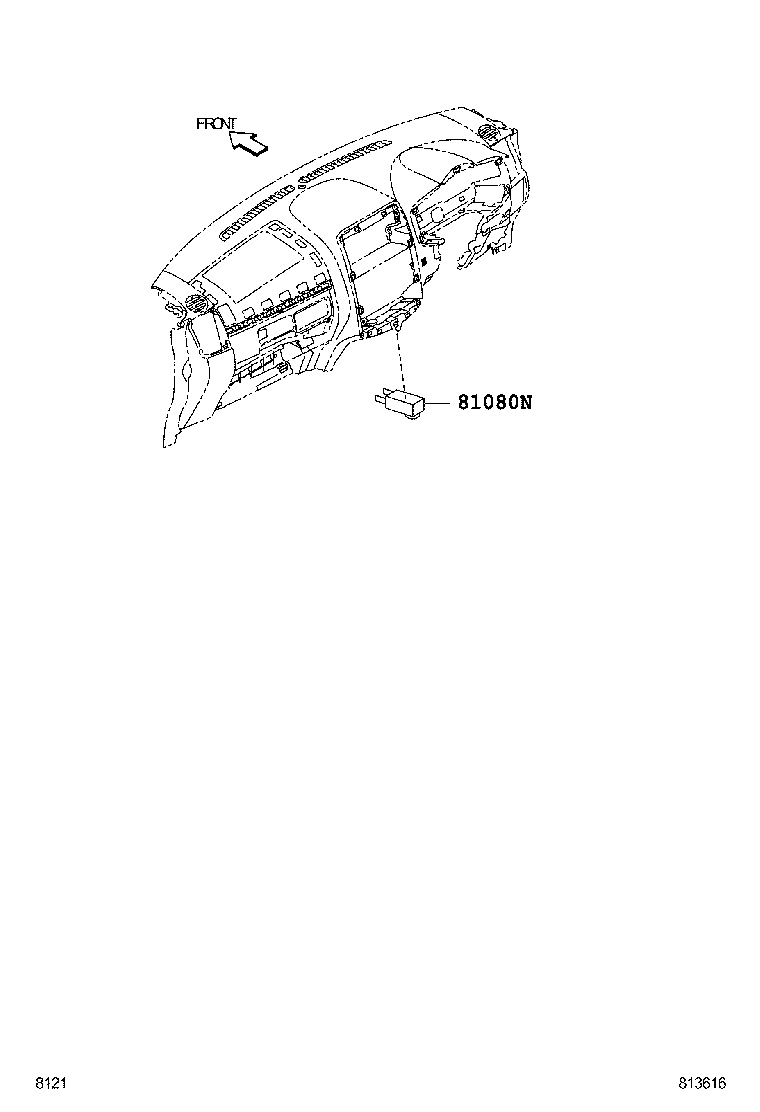

Click highlighted areas on diagram

diagram 81080N
Part # Description Qty Price
81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-48010

J210..5F

 1

(0601-1605)

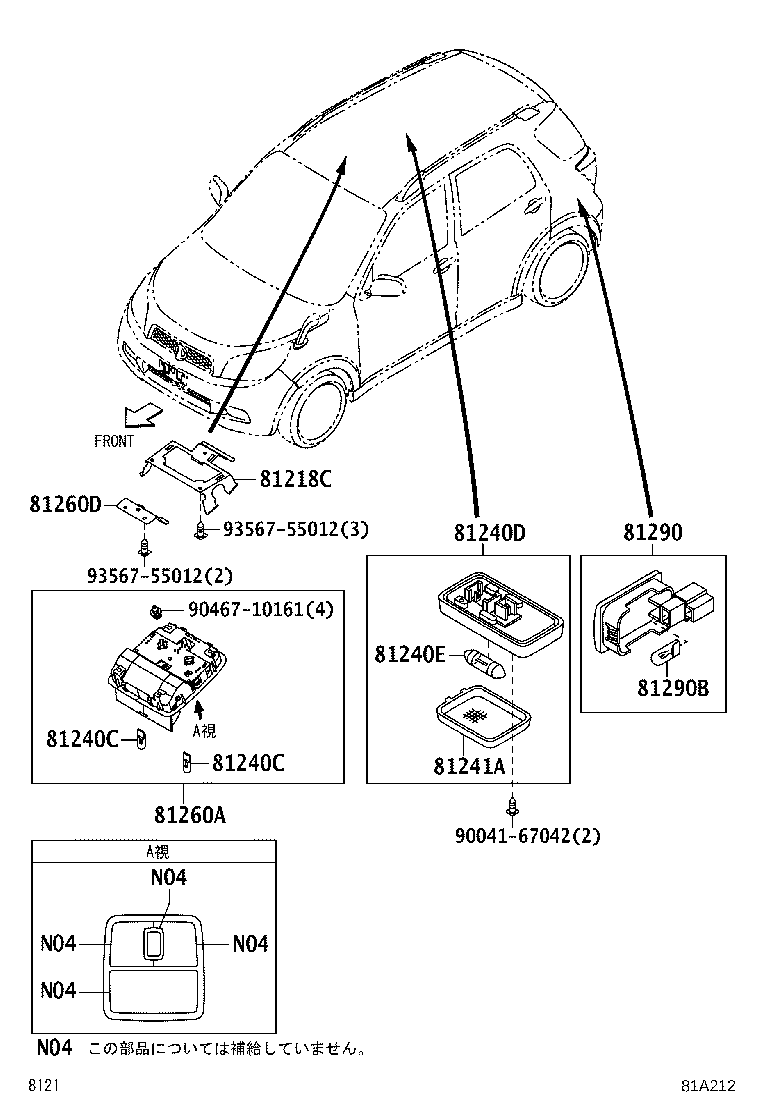

Click highlighted areas on diagram

diagram 81218C 81240C 81240C 81240D 81240E 81241A 81260A 81260D 81290 81290B 9004167042 9046710161 9356755012 9356755012
Part # Description Qty Price
81218C - BRACKET, MAP LAMP
63231-B4010

J200,210

 1
81240C - BULB
90981-11062

J200,210

 2
81240C - BULB
90981-11062

J200,210

 2
81240D - LAMP ASSY, ROOM, NO.2
81240-B2050B0

J200,210

LT.GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90049-51153

J200,210

12V 8W

 1
81241A - LENS, ROOM LAMP, NO.2
81241-97201

J200,210

 1
81260A - LAMP ASSY, MAP
81260-B4020B0

J200,210..G

LT.GRAY,TRIM1#

 1
81260-B4010B0

J200,210..X

LT.GRAY,TRIM1#

 1
81260D - BRACKET, MAP LAMP
63231-B4020

J200,210

 1
81290 - LAMP ASSY, ROOM, NO.3
81240-B1010

J200,210

 1
81290B - BULB, ROOM LAMP, NO.3
90981-11013

J200,210

12V 5W T10

 1
Common parts
90041-67042
90467-10161
93567-55012
