J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)
Click highlighted areas on diagram

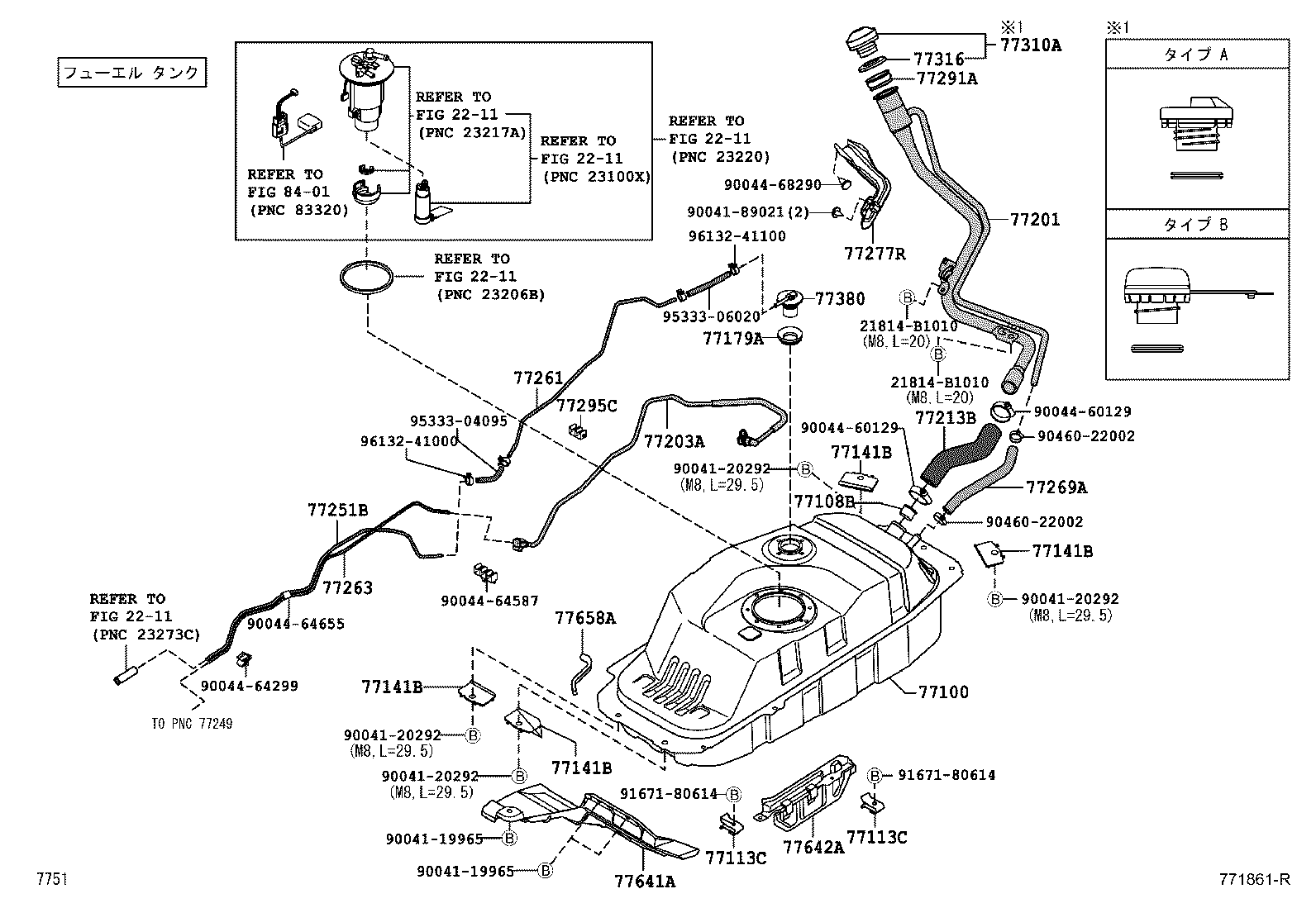

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-B4010 |
J200,210 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
J200,210 |
1 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77113-87401 |
J200,210 |
2 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77113-87401 |
J200,210 |
2 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B4010 |
J200,210 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B4010 |
J200,210 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B4010 |
J200,210 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B4010 |
J200,210 |
4 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
J200,210 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-B4010 |
J200,210 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-B4010 |
J200,210 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B4010 |
J200,210 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B4010 |
J200,210 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-B4010 |
J200,210 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B4010 |
J200,210 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-B4010 |
J200,210 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-B4010 |
J200,210 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-B2020 |
J200,210 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-34050 |
J200,210 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
J200,210 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
J200,210 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-B2010 |
J200,210 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-B4010 |
J200,210 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-87401 |
J200,210 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 21814-B1010 | ||||
| 90041-19965 | ||||
| 90041-20292 | ||||
| 90041-89021 | ||||
| 90044-60129 | ||||
| 90044-64299 | ||||
| 90044-64587 | ||||
| 90044-64655 | ||||
| 90044-68290 | ||||
| 90460-22002 | ||||
| 91671-80614 | ||||
| 95333-04095 | ||||
| 95333-06020 | ||||
| 96132-41000 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
(0601-1605)
Click highlighted areas on diagram

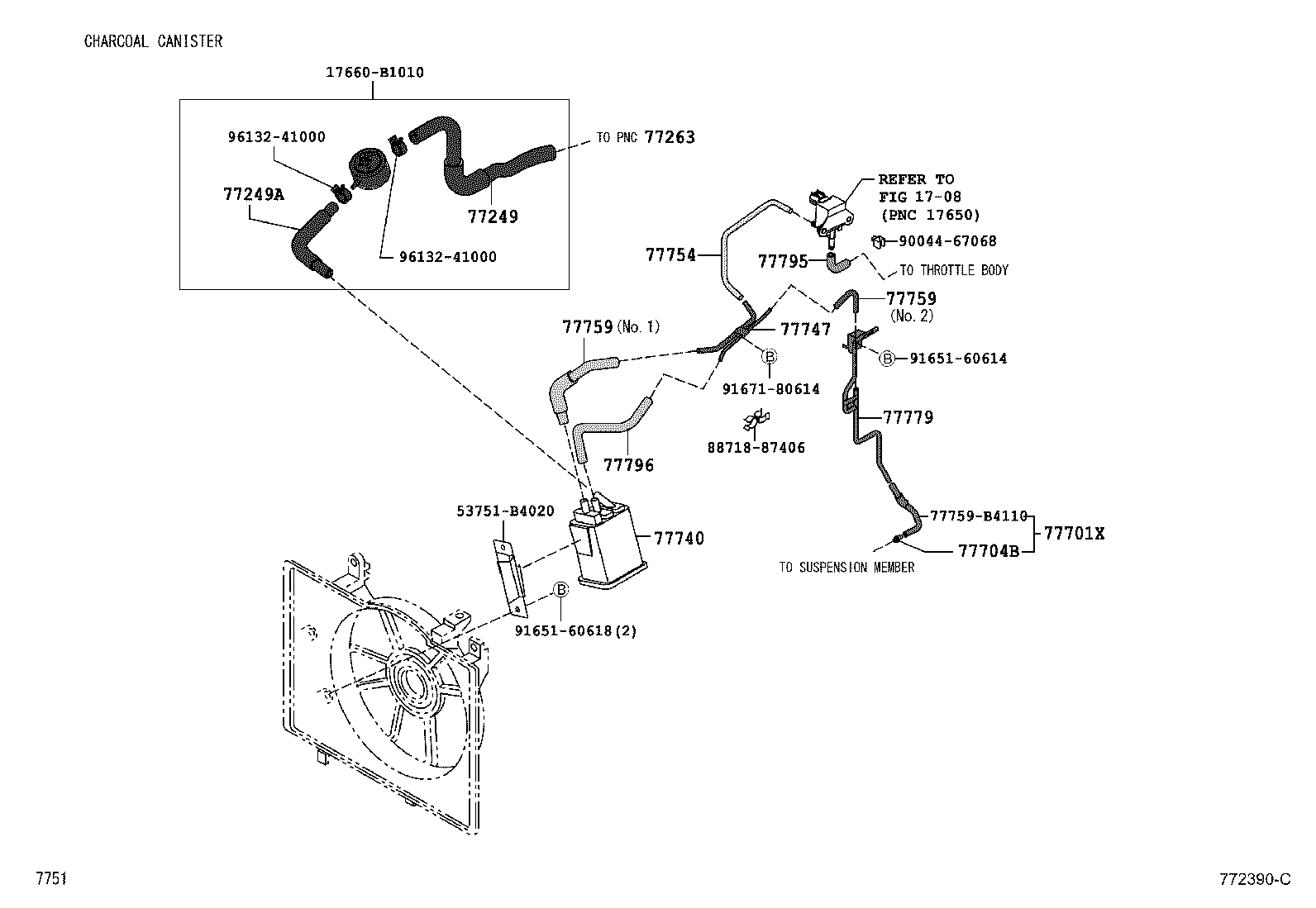

CHARCOAL CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-B4010 |
J200,210 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-B4020 |
J200,210 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B4010 |
J200,210 |
1 | ||
| 77701X - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-B4010 |
J200,210 |
1 | ||
| 77704B - WAY, 2(FOR CHACOAL CANISTER) | ||||
| 90044-12070 |
J200,210 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-B4010 |
J200,210 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-B4010 |
J200,210 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-B4010 |
J200,210 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B4100 |
J200,210 NO.2 |
1 | ||
| 77759-B4090 |
J200,210 NO.1 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B4100 |
J200,210 NO.2 |
1 | ||
| 77759-B4090 |
J200,210 NO.1 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-B4030 |
J200,210 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-B4010 |
J200,210 |
1 | ||
| 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 | ||||
| 77796-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 17660-B1010 | ||||
| 53751-B4020 | ||||
| 77759-B4110 | ||||
| 88718-87406 | ||||
| 90044-67068 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91671-80614 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(0601-1605)
Click highlighted areas on diagram

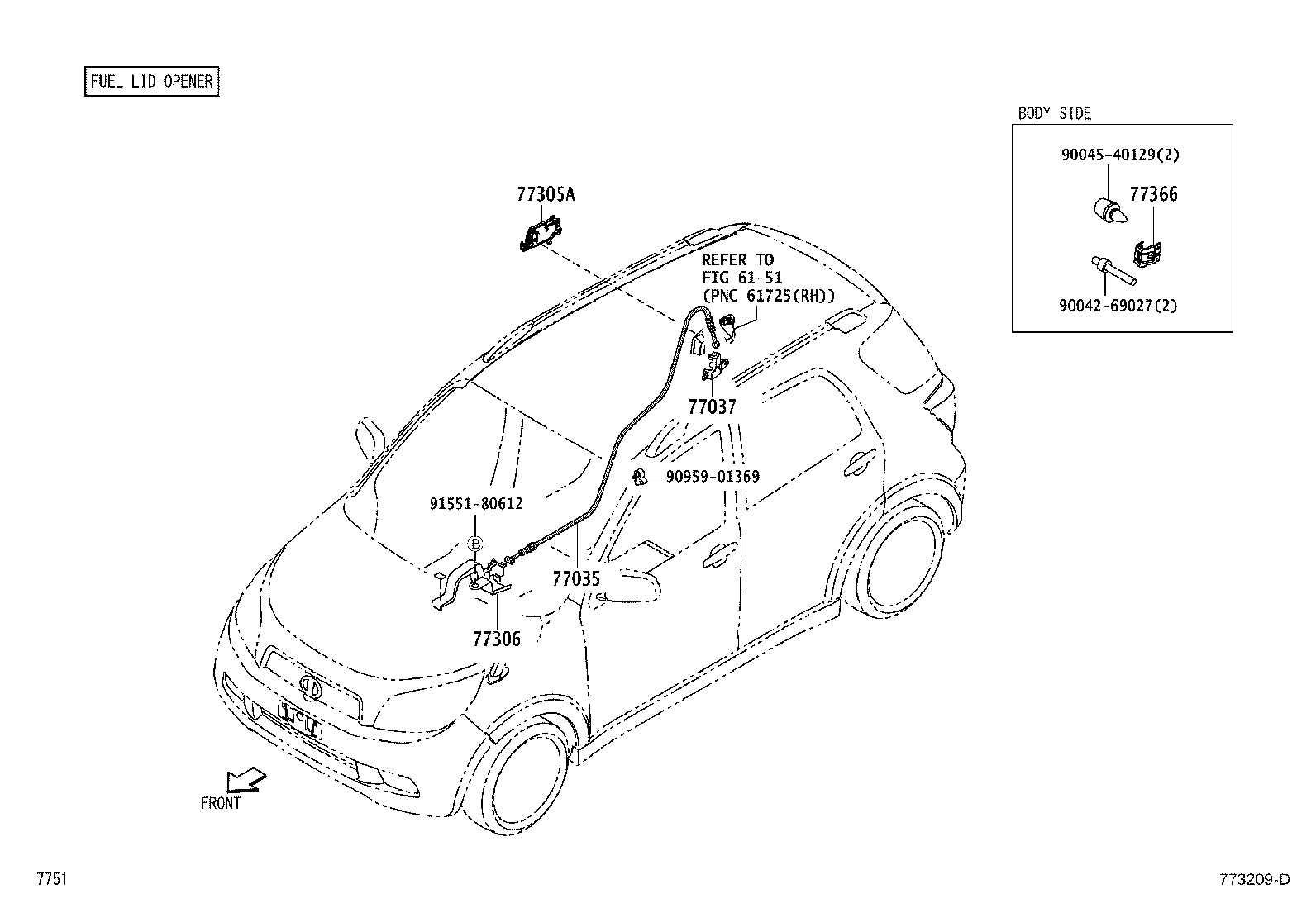

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-B4010 |
J200,210 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-B4010 |
J200,210 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-B4010 |
J200,210 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-B4010 |
J200,210 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
J200,210 |
1 | ||
| Common parts | ||||
| 90042-69027 | ||||
| 90045-40129 | ||||
| 90959-01369 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 6151 | ||||
