J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

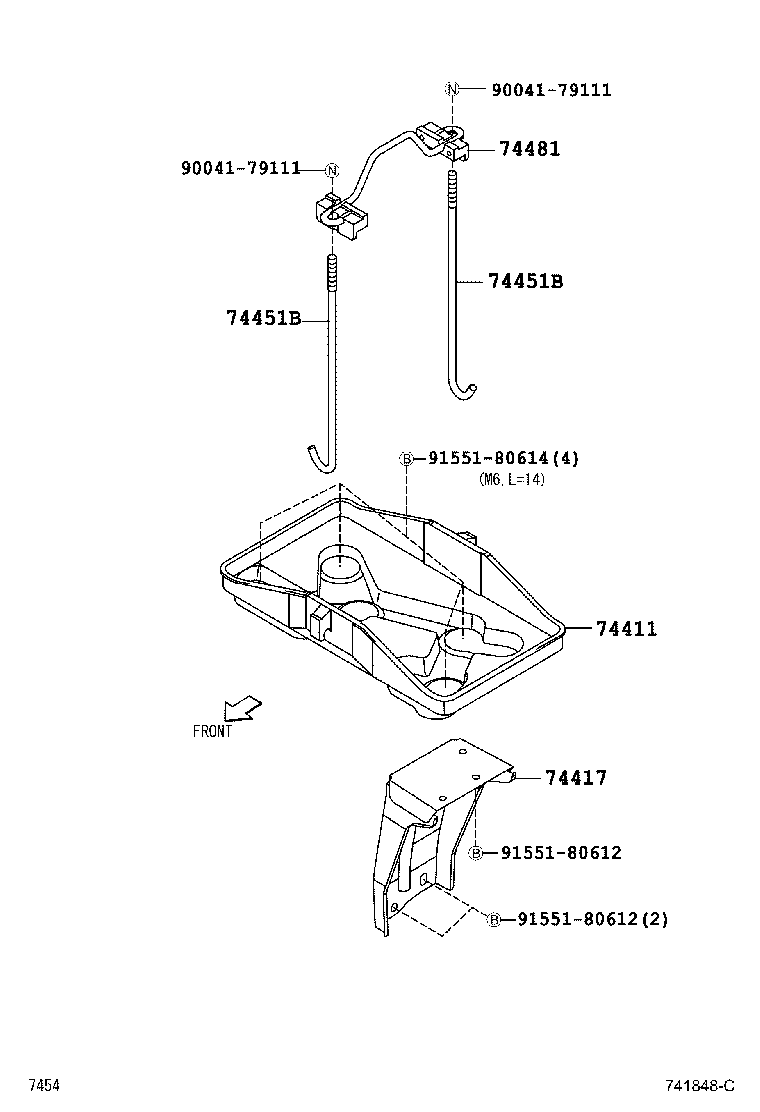

Click highlighted areas on diagram

diagram 74411 74417 74451B 74451B 74481 9004179111 9004179111 9155180612 9155180612 9155180614
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-87401

J200,210

 1
74417 - BRACKET, BATTERY CARRIER
74401-B4010

J200,210

 1
74451B - BOLT, BATTERY CLAMP
74451-87703

J200,210

 2
74451B - BOLT, BATTERY CLAMP
74451-87703

J200,210

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-87202

J200,210

 1
Common parts
90041-79111
91551-80612
91551-80614
