J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

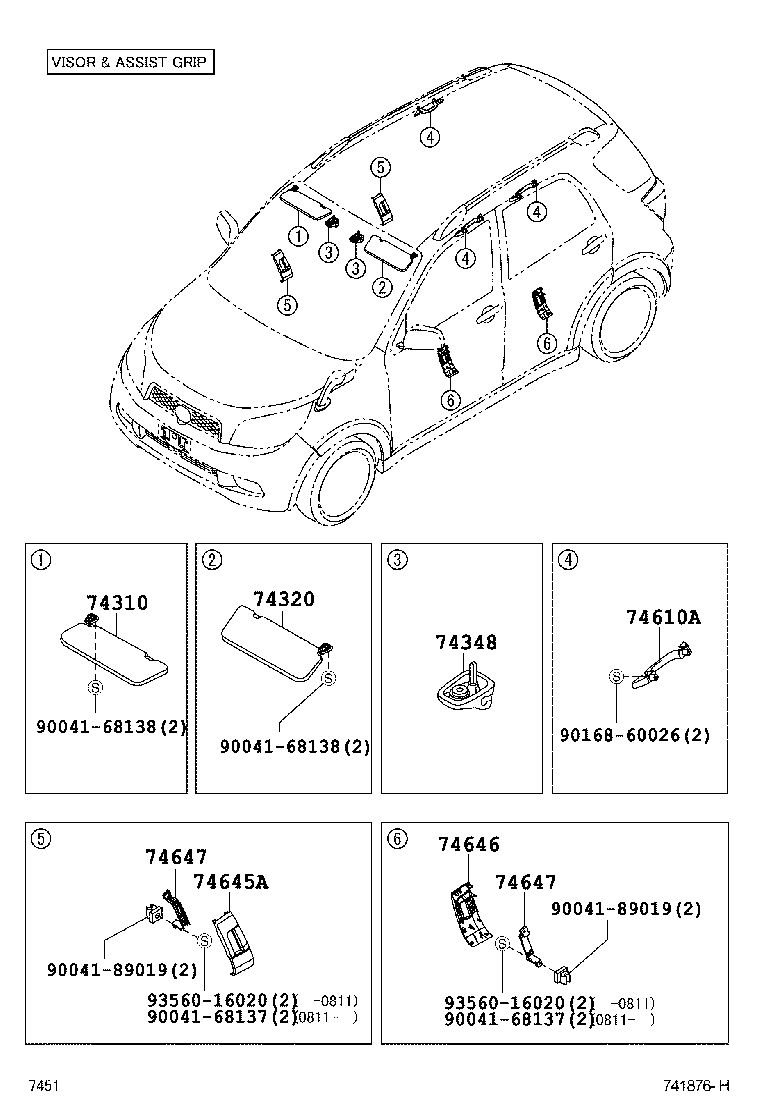

ﾊﾞｲｻﾞ&ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74310 74320 74348 74610A 74645A 74646 74647 74647 9004168137 9004168137 9004168138 9004168138 9004189019 9004189019 9016860026 9356016020 9356016020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-B4020B0

J200,210

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-97401B2

J200,210

LT.GRAY,TRIM1#

 2
74348-97401B0

J200,210

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-12020B0

J200,210

LT.GRAY,TRIM1#,助手席側

 1
74611-12030B0

J200,210

LT.GRAY,TRIM1#,ﾘﾔ

 2
74645A - COVER, DOOR ASSIST GRIP, RH
74645-B4010

J200,210

 2
74645-B4010

J200,210

 2
74646 - COVER, DOOR ASSIST GRIP, LH
74646-B4010

J200,210

 2
74646-B4010

J200,210

 2
74647 - BASE, DOOR ASSIST GRIP
74647-B4010B0

J200,210

DK.GRAY,TRIM1#,右側

 2
74648-B4010B0

J200,210

DK.GRAY,TRIM1#,左側

 2
74647 - BASE, DOOR ASSIST GRIP
74647-B4010B0

J200,210

DK.GRAY,TRIM1#,右側

 2
74648-B4010B0

J200,210

DK.GRAY,TRIM1#,左側

 2
Common parts
90041-68137
90041-68138
90041-89019
90168-60026
93560-16020

(0601-1605)

Click highlighted areas on diagram

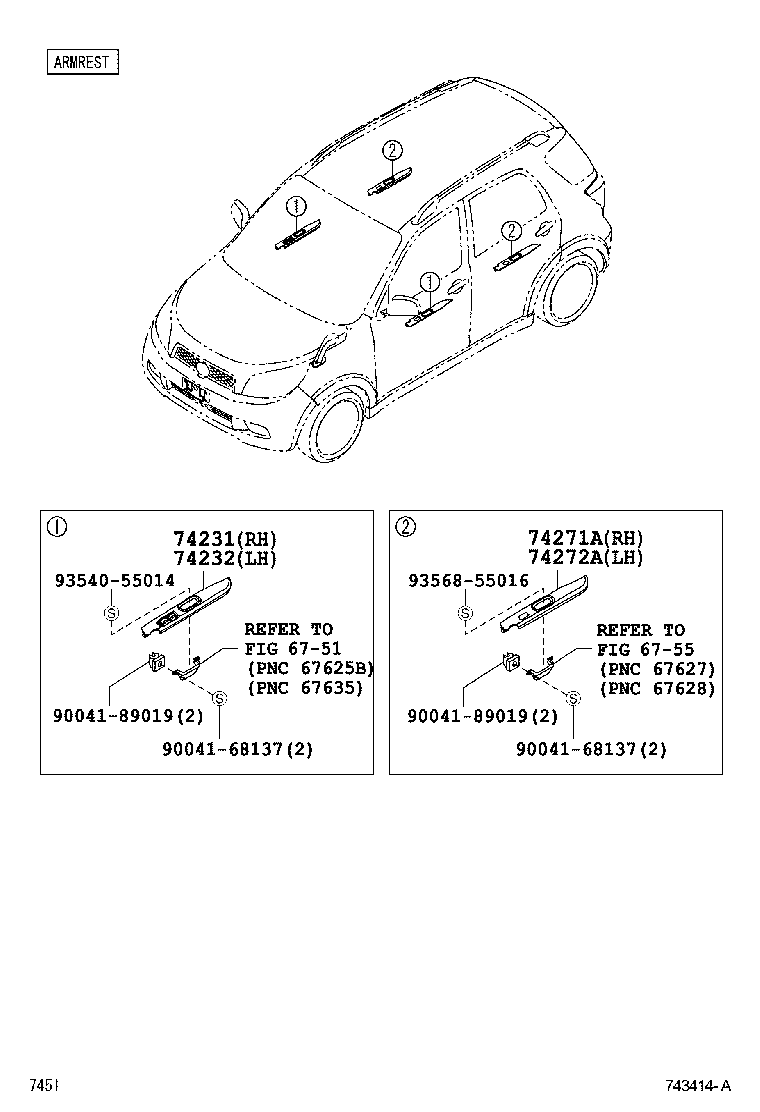

ｱｰﾑﾚｽﾄ

diagram 6751 6755 74231 74232 74271A 74272A 9004168137 9004168137 9004189019 9004189019 9354055014 9356855016
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
Common parts
90041-68137
90041-89019
93540-55014
93568-55016
Linked diagrams
6751
6755
