J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

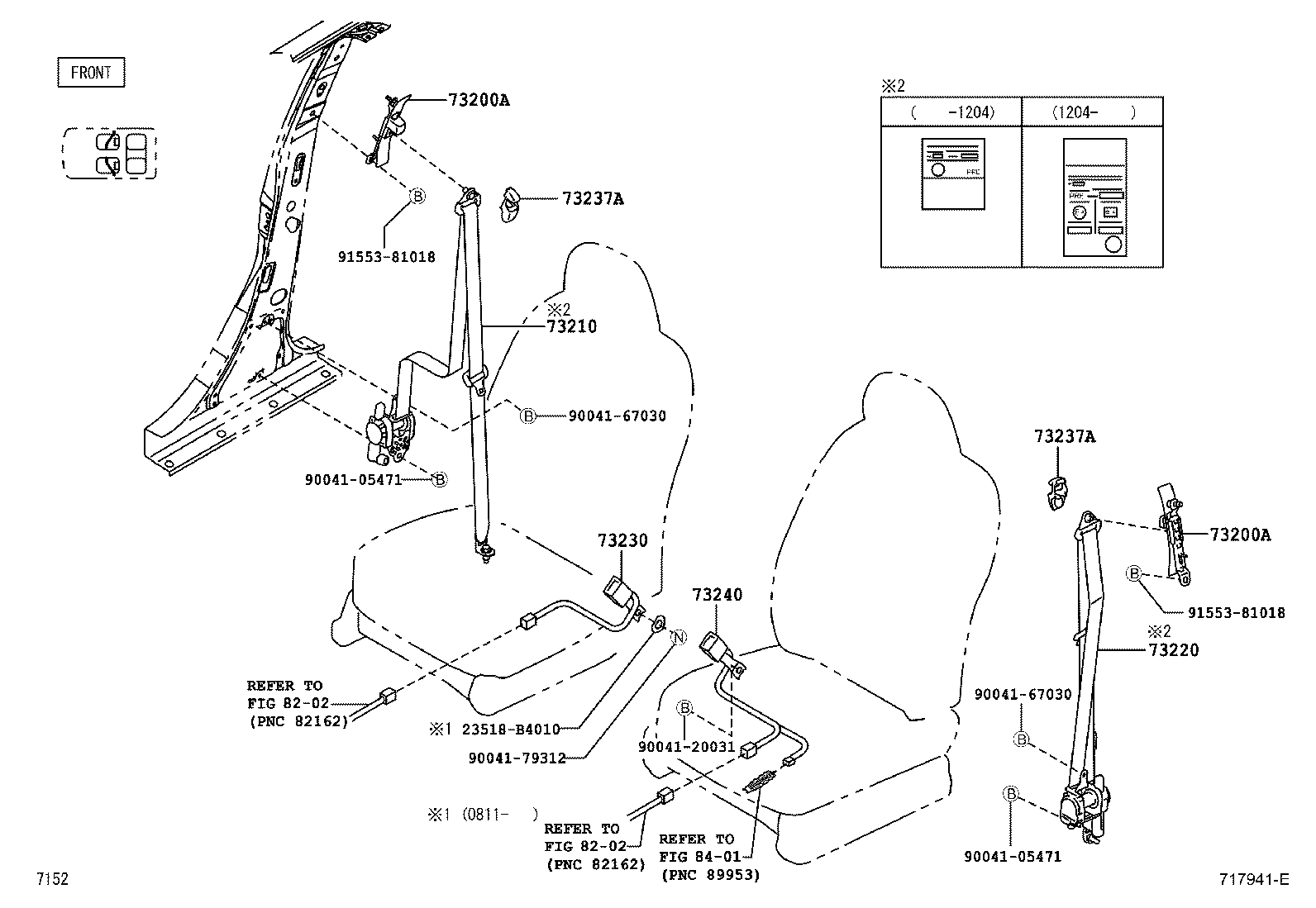

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 23518B4010 73200A 73200A 73210 73220 73230 73237A 73237A 73240 8202 8202 8401 9004105471 9004105471 9004120031 9004167030 9004167030 9004179312 9155381018 9155381018
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-B1010B0

J200,210

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-B1010B0

J200,210

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-B4030B0

J200,210

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-B4090B0

J200,210

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73237A - COVER, SHOULDER BELT ANCHOR
73237-B1010B0

J200,210

LT.GRAY,TRIM1#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-B1010B0

J200,210

LT.GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-B4050B0

J200,210

DK.GRAY,TRIM1#

 1
Common parts
23518-B4010
90041-05471
90041-20031
90041-67030
90041-79312
91553-81018
Linked diagrams
8202
8401

(0601-1204)

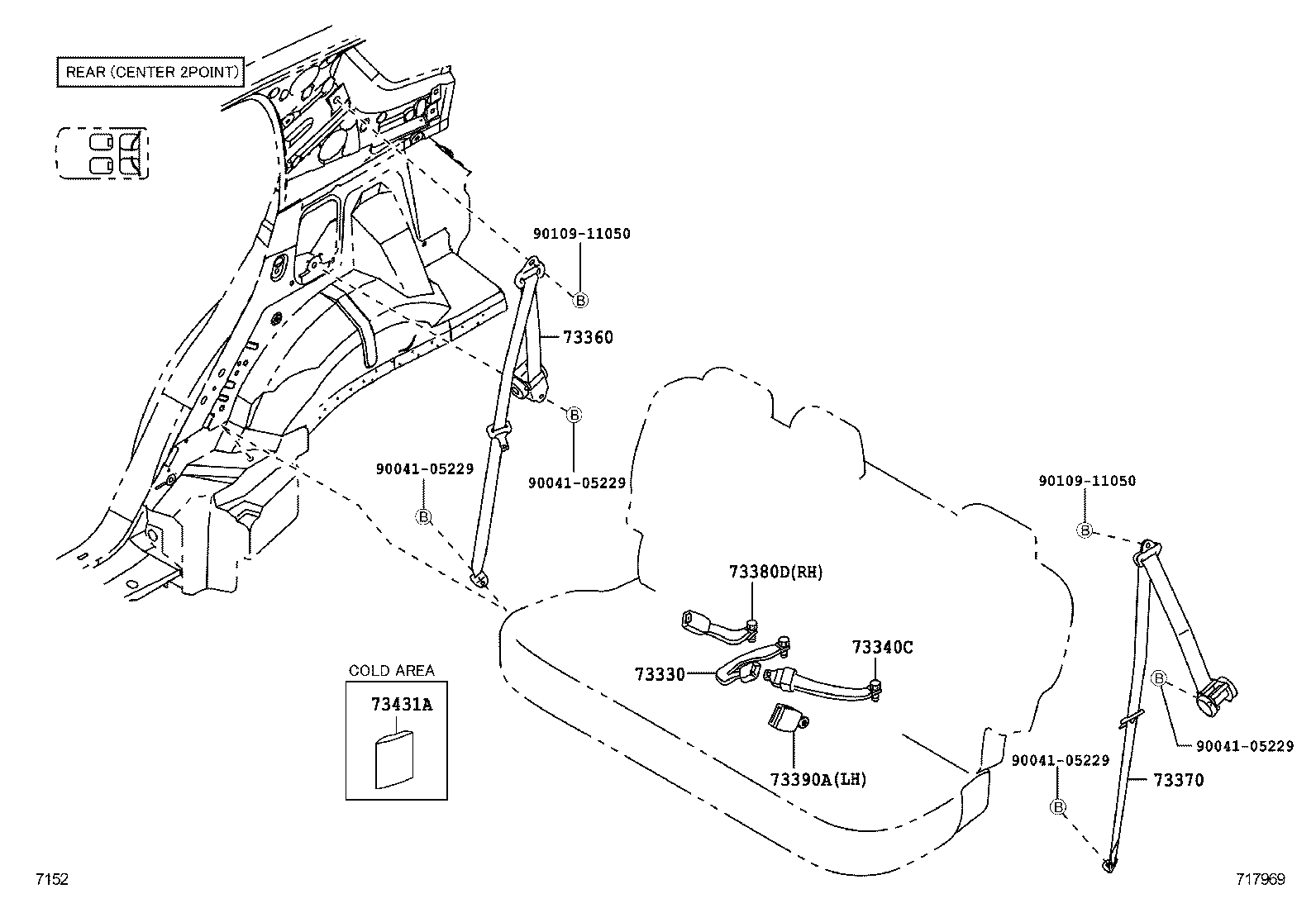

Click highlighted areas on diagram

ﾘﾔ

diagram 73330 73340C 73360 73370 73380D 73390A 73431A 9004105229 9004105229 9004105229 9004105229 9010911050 9010911050
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73380D - BELT ASSY, REAR SEAT, INNER
73380-B4020B0

J200,210

DK.GRAY,TRIM1#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73230-97506B1

J200,210

DK.GRAY,TRIM1#

 1
73431A - COVER, REAR SEAT BELT RETRACTOR
73431-97201

J200,210

寒冷地 ｽﾍﾟｼｬﾙ

 2
73431-97201

J200,210

寒冷地仕様

 2
Common parts
90041-05229
90109-11050
