J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

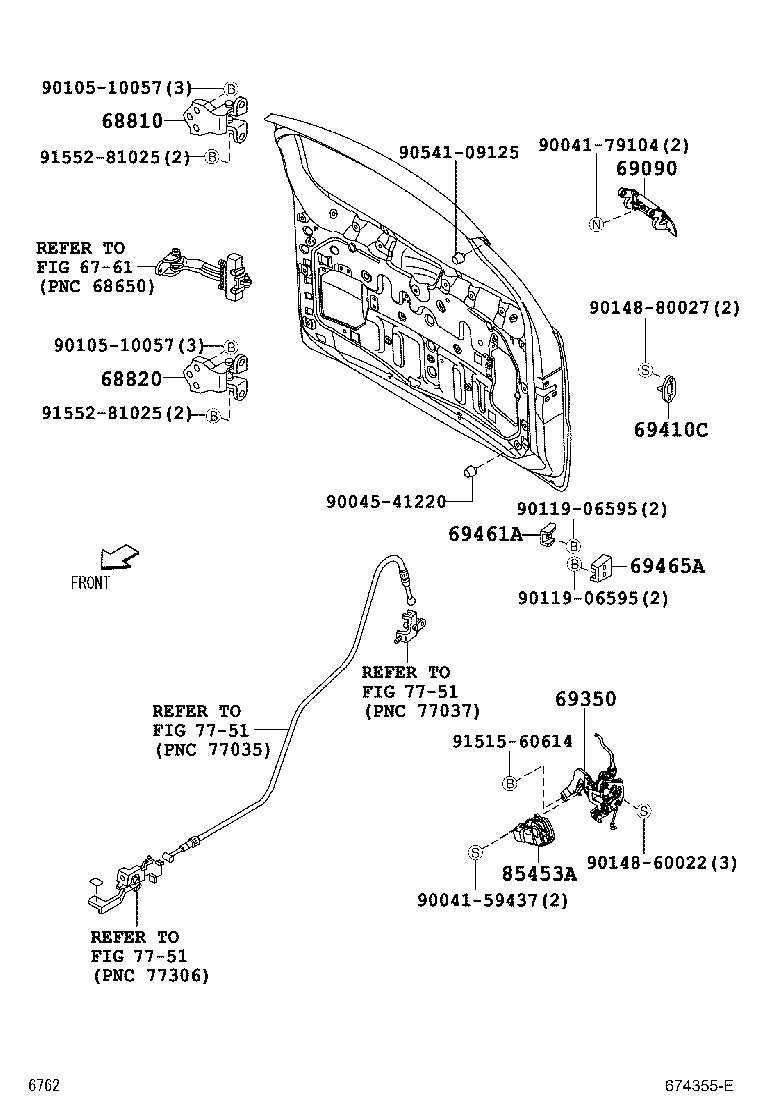

Click highlighted areas on diagram

diagram 6761 68810 68820 69090 69350 69410C 69461A 69465A 7751 7751 7751 85453A 9004159437 9004179104 9004541220 9010510057 9010510057 9011906595 9011906595 9014860022 9014880027 9054109125 9151560614 9155281025 9155281025
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-B4010

J200,210

 1
68820 - HINGE ASSY, BACK DOOR, LOWER
68810-B4010

J200,210

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-B4020F0

J200,210

YELLOW,Y09

 1
69090-B4020A1

J200,210

WHITE,W23

 1
69090-B4020A2

J200,210

WHITE PEARL MC.CS,W24

 1
69090-B4020G0

J200,210

LIME GREEN M.M.,G41

 1
69090-B4020B1

J200,210

GRAY ME.,S33

 1
69090-B4020C0

J200,210

BLACK M.M.,X07

 1
69090-B4020D0

J200,210

RED,R40

 1
69090-B4020G1

J200,210

BRITISH GREEN MC.,G37

 1
69090-B4020B0

J200,210

SILVER ME.,S28

 1
69090-B4020J0

J200,210

BLUE M.M.,B58

 1
69350 - LOCK ASSY, BACK DOOR
69301-B4010

J200,210

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-97203

J200,210

 1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-87401

J200,210

 1
69465A - STOPPER, BACK DOOR SIDE FEMALE
69465-B4010

J200,210

 1
85453A - MOTOR, DOOR CONTROL
85490-B2010

J200,210

 1
Common parts
90041-59437
90041-79104
90045-41220
90105-10057
90119-06595
90148-60022
90148-80027
90541-09125
91515-60614
91552-81025
Linked diagrams
6761
7751
