J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

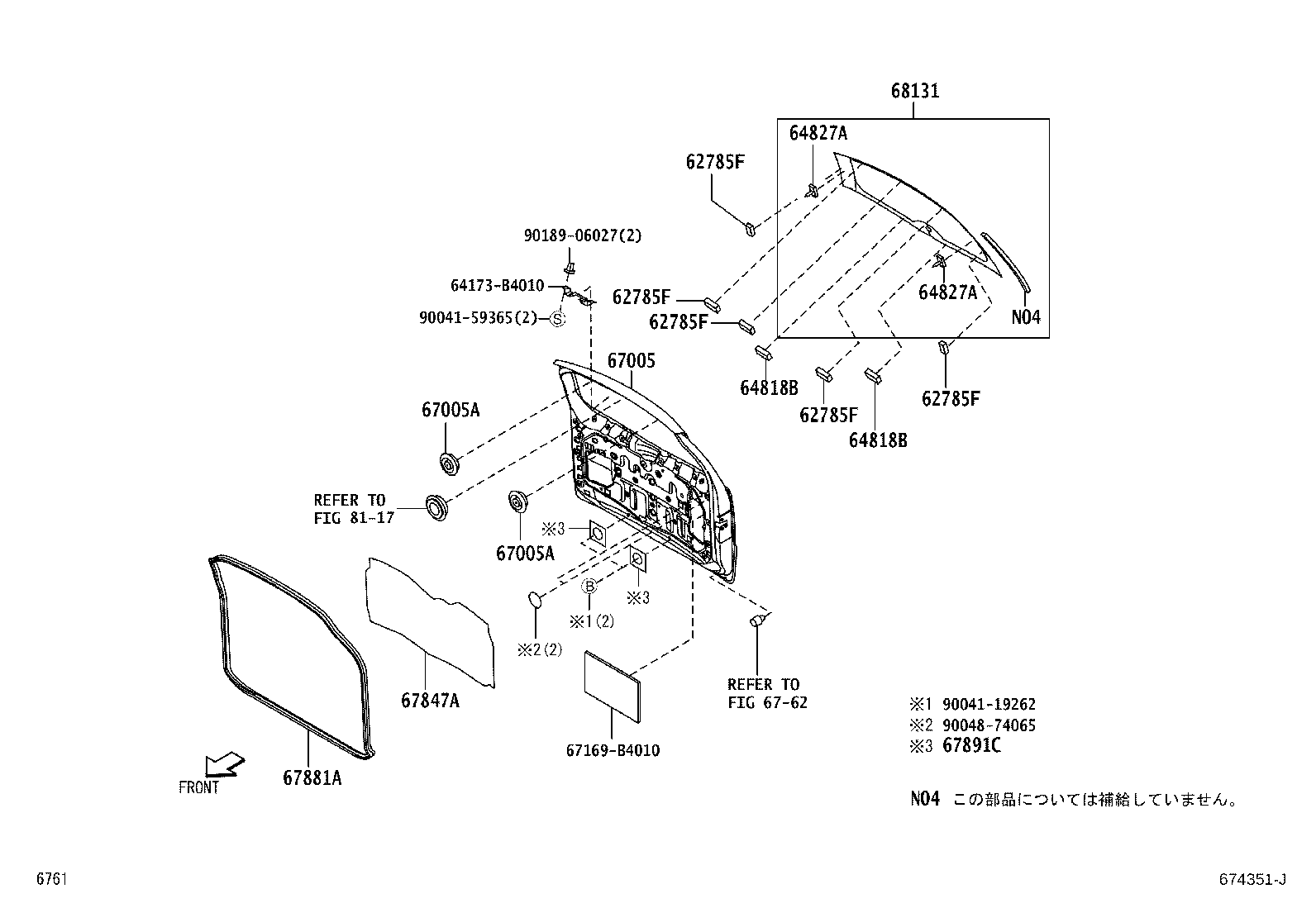

diagram 62785F 62785F 62785F 62785F 62785F 64173B4010 64818B 64818B 64827A 64827A 67005 67005A 67005A 67169B4010 6762 67847A 67881A 67891C 68131 8117 9004119262 9004159365 9004874065 9018906027
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-B4010

J200,210

 5
62785F - SPACER, BACK DOOR GLASS
62785-B4010

J200,210

 5
62785F - SPACER, BACK DOOR GLASS
62785-B4010

J200,210

 5
62785F - SPACER, BACK DOOR GLASS
62785-B4010

J200,210

 5
62785F - SPACER, BACK DOOR GLASS
62785-B4010

J200,210

 5
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

J200,210

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

J200,210

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-B4010

J200,210

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-B4010

J200,210

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B4080

J200,210..X

 1
67005-B4110

J200,210..X

ﾘｱ ｽﾎﾟｲﾗ−有り

 1
67005-B4040

J200,210..X

 1
67005-B4010

J200,210..G

 1
67005-B4110

J200,210..G

 1
67005-B4010

J200,210..X

ﾘｱ ｽﾎﾟｲﾗ−有り

 1
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90048-71305C0

J200,210

ZAICHAKU BLACK DUMMYCOLOR,B58 ,G37 ,R40 ,S33 ,X07,ｽﾎﾟｲﾗ 取り付け穴 径 22

 2
90048-71305B0

J200,210

GRAY,G41 ,S28 ,W23 ,W24 ,Y09,ｽﾎﾟｲﾗ 取り付け穴 径 22

 2
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90048-71305C0

J200,210

ZAICHAKU BLACK DUMMYCOLOR,B58 ,G37 ,R40 ,S33 ,X07,ｽﾎﾟｲﾗ 取り付け穴 径 22

 2
90048-71305B0

J200,210

GRAY,G41 ,S28 ,W23 ,W24 ,Y09,ｽﾎﾟｲﾗ 取り付け穴 径 22

 2
67847A - COVER, BACK DOOR SERVICE HOLE
67847-B4010

J200,210

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-B4010

J200,210

 1
68131 - GLASS, BACK DOOR
68150-B4050

J200,210

厚さ=3.1,ｻﾝﾍﾞｰﾙ ｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM魔S

 1
68150-B4010

J200,210

厚さ=3.1,ｻﾝﾍﾞｰﾙ ｸﾞﾘｰﾝ

 1
Common parts
64173-B4010
67169-B4010
90041-19262
90041-59365
90048-74065
90189-06027
Linked diagrams
6762
8117

(0601-1605)

Click highlighted areas on diagram

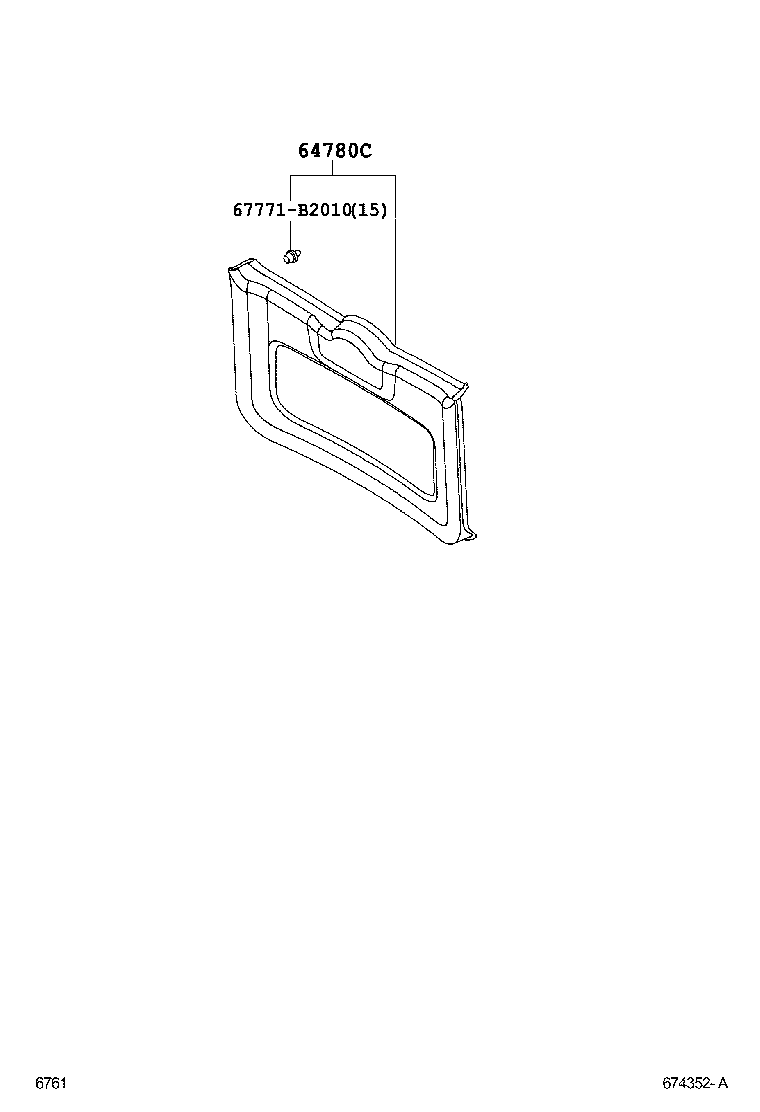

diagram 64780C 67771B2010
Part # Description Qty Price
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
Common parts
67771-B2010

(0601-1605)

Click highlighted areas on diagram

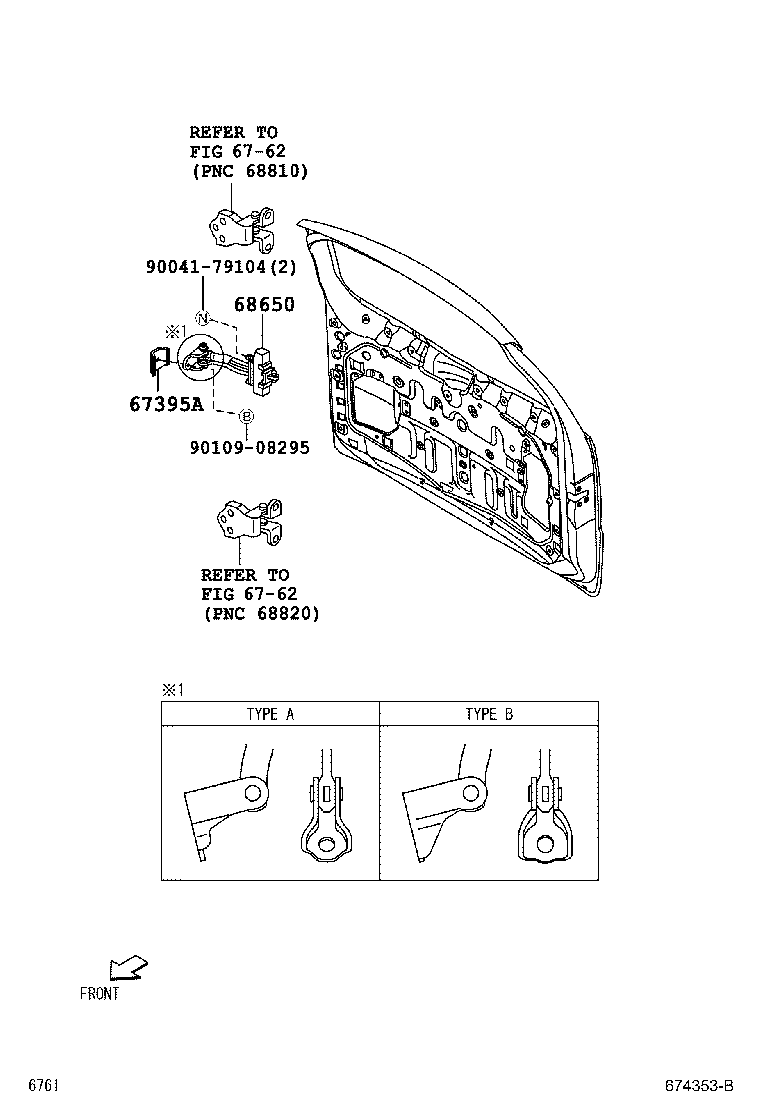

diagram 67395A 6762 6762 68650 9004179104 9010908295
Part # Description Qty Price
67395A - PROTECTOR, BACK DOOR, LOWER
67395-B4010

J200,210

 1
68650 - CHECK ASSY, BACK DOOR
68650-B4010

J200,210

ﾀｲﾌﾟ A

 1
Common parts
90041-79104
90109-08295
Linked diagrams
6762

(0601-1605)

Click highlighted areas on diagram

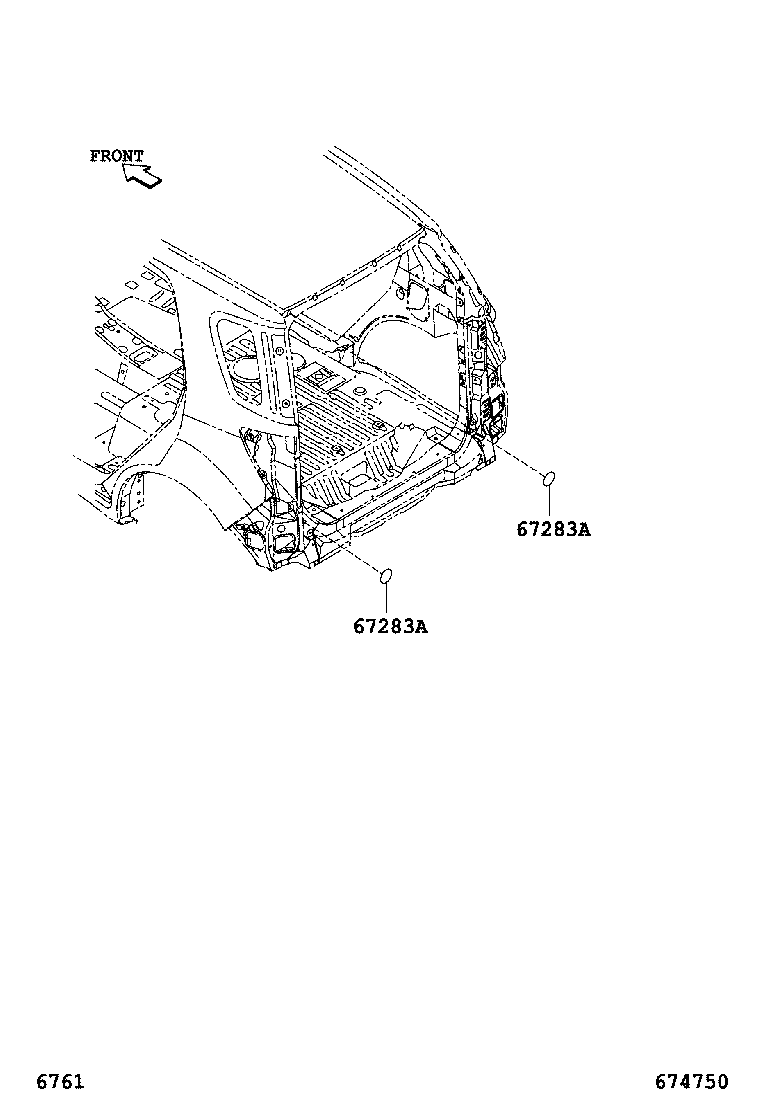

diagram 67283A 67283A
Part # Description Qty Price
67283A - COVER, BACK DOOR STOPPER CUSHION, NO.1
67283-B5010

J200,210

 2
67283A - COVER, BACK DOOR STOPPER CUSHION, NO.1
67283-B5010

J200,210

 2
