J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

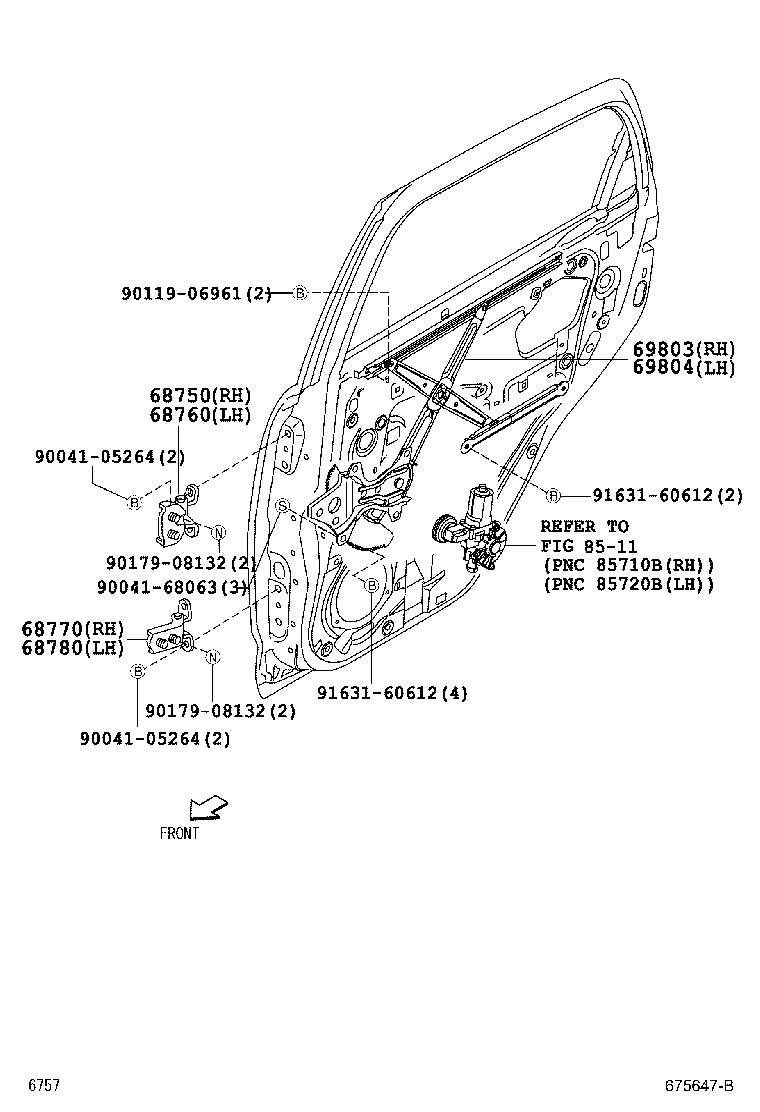

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 8511 9004105264 9004105264 9004168063 9011906961 9017908132 9017908132 9163160612 9163160612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-B4010

J200,210

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-B4010

J200,210

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-B4010

J200,210

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-B4010

J200,210

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-B4010

J200,210

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-B4010

J200,210

 1
Common parts
90041-05264
90041-68063
90119-06961
90179-08132
91631-60612
Linked diagrams
8511
