J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

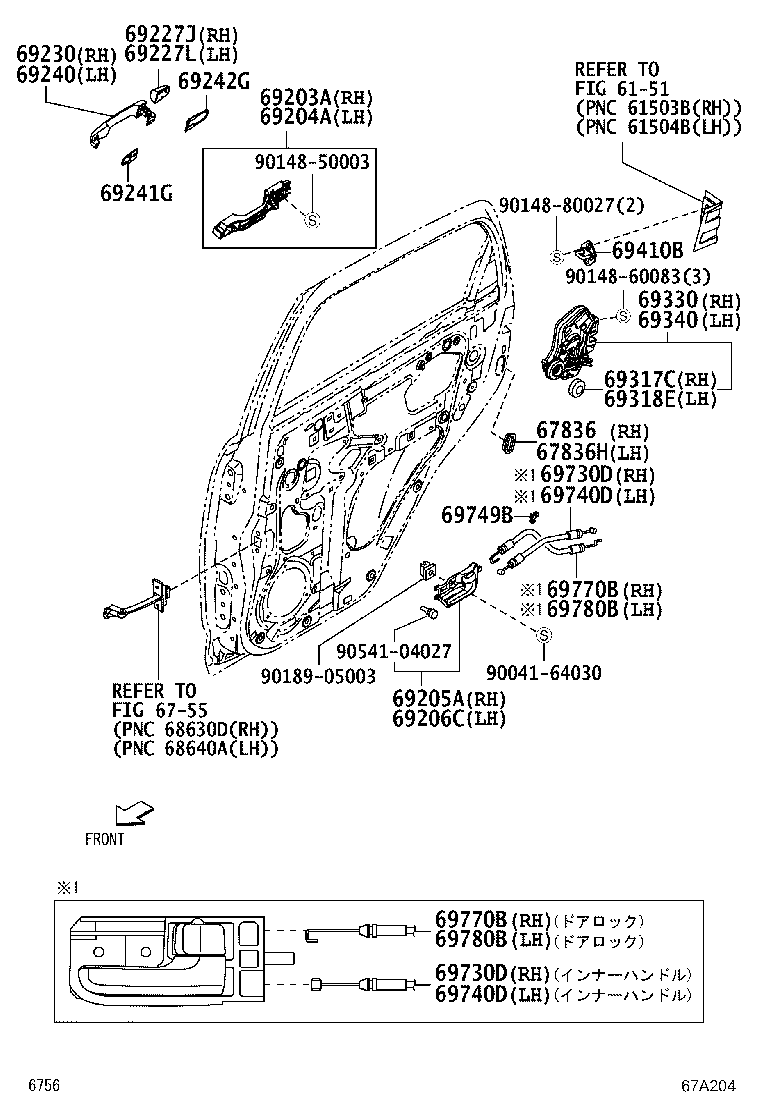

Click highlighted areas on diagram

diagram 6151 6755 67836 67836H 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69317C 69318E 69330 69340 69410B 69730D 69730D 69740D 69740D 69749B 69770B 69770B 69780B 69780B 9004164030 9014850003 9014860083 9014880027 9018905003 9054104027
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

J200,210

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

J200,210

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-52010

J200,210

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-52010

J200,210

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-B1010

J200,210

 1
69205-B1020

J200,210..G

G−LIMITED *(H)

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-B1020

J200,210..G

G−LIMITED *(H)

 1
69206-B1010

J200,210

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-B1010A2

J200,210..G

WHITE,W23

 1
69227-B1010F0

J200,210

YELLOW,Y09

 1
69227-B1010G2

J200,210

LIME GREEN M.M.,G41

 1
69227-B1010B1

J200,210

GRAY ME.,S33

 1
69227-B1010R0

J200,210

RED,R40

 1
69227-B1010A3

J200,210

WHITE PEARL MC.CS,W24

 1
69227-B1010J0

J200,210

BLUE M.M.,B58

 1
69227-B1010A2

J200,210..X

WHITE,W23

 1
69227-B1010X7

J200,210

BLACK M.M.,X07

 1
69227-B1010G3

J200,210

BRITISH GREEN MC.,G37

 1
69227-B1010S8

J200,210

SILVER ME.,S28

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-B1010A2

J200,210..G

WHITE,W23

 1
69227-B1010X7

J200,210

BLACK M.M.,X07

 1
69227-B1010A2

J200,210..X

WHITE,W23

 1
69227-B1010A3

J200,210

WHITE PEARL MC.CS,W24

 1
69227-B1010F0

J200,210

YELLOW,Y09

 1
69227-B1010J0

J200,210

BLUE M.M.,B58

 1
69227-B1010R0

J200,210

RED,R40

 1
69227-B1010G3

J200,210

BRITISH GREEN MC.,G37

 1
69227-B1010G2

J200,210

LIME GREEN M.M.,G41

 1
69227-B1010B1

J200,210

GRAY ME.,S33

 1
69227-B1010S8

J200,210

SILVER ME.,S28

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-B1010A2

J200,210..X

WHITE,W23

 1
69211-B1010G2

J200,210

LIME GREEN M.M.,G41

 1
69211-B1010A1

J200,210..X

WHITE,W20

 1
69211-B1010B1

J200,210

GRAY ME.,S33

 1
69211-B1010J0

J200,210

BLUE M.M.,B58

 1
69211-B1010R0

J200,210

RED,R40

 1
69211-B1010X7

J200,210

BLACK M.M.,X07

 1
69211-B1010A3

J200,210

WHITE PEARL MC.CS,W24

 1
69211-B1010A2

J200,210..G

WHITE,W23

 1
69211-B1010S8

J200,210

SILVER ME.,S28

 1
69211-B1010G3

J200,210

BRITISH GREEN MC.,G37

 1
69211-B1010F0

J200,210

YELLOW,Y09

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-B1010A2

J200,210..G

WHITE,W23

 1
69211-B1010R0

J200,210

RED,R40

 1
69211-B1010A1

J200,210..X

WHITE,W20

 1
69211-B1010B1

J200,210

GRAY ME.,S33

 1
69211-B1010X7

J200,210

BLACK M.M.,X07

 1
69211-B1010A2

J200,210..X

WHITE,W23

 1
69211-B1010G2

J200,210

LIME GREEN M.M.,G41

 1
69211-B1010S8

J200,210

SILVER ME.,S28

 1
69211-B1010F0

J200,210

YELLOW,Y09

 1
69211-B1010G3

J200,210

BRITISH GREEN MC.,G37

 1
69211-B1010A3

J200,210

WHITE PEARL MC.CS,W24

 1
69211-B1010J0

J200,210

BLUE M.M.,B58

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-B1020

J200,210

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-B1020

J200,210

 2
69242-B1010

J200,210

 2
69317C - SEAL, DOOR LOCK WIRING HARNESS, RH
69318-51010

J200,210

 1
69318E - SEAL, DOOR LOCK WIRING HARNESS, LH
69318-51010

J200,210

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-52120

J200,210

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-52120

J200,210

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-B2030

J200,210

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B4010

J200,210

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B4010

J200,210

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B4010

J200,210

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B4010

J200,210

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

J200,210

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B4010

J200,210

ﾄﾞｱﾛﾂｸ

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B4010

J200,210

ﾄﾞｱﾛﾂｸ

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B4010

J200,210

ﾄﾞｱﾛﾂｸ

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B4010

J200,210

ﾄﾞｱﾛﾂｸ

 1
Common parts
90041-64030
90148-50003
90148-60083
90148-80027
90189-05003
90541-04027
Linked diagrams
6151
6755
