J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

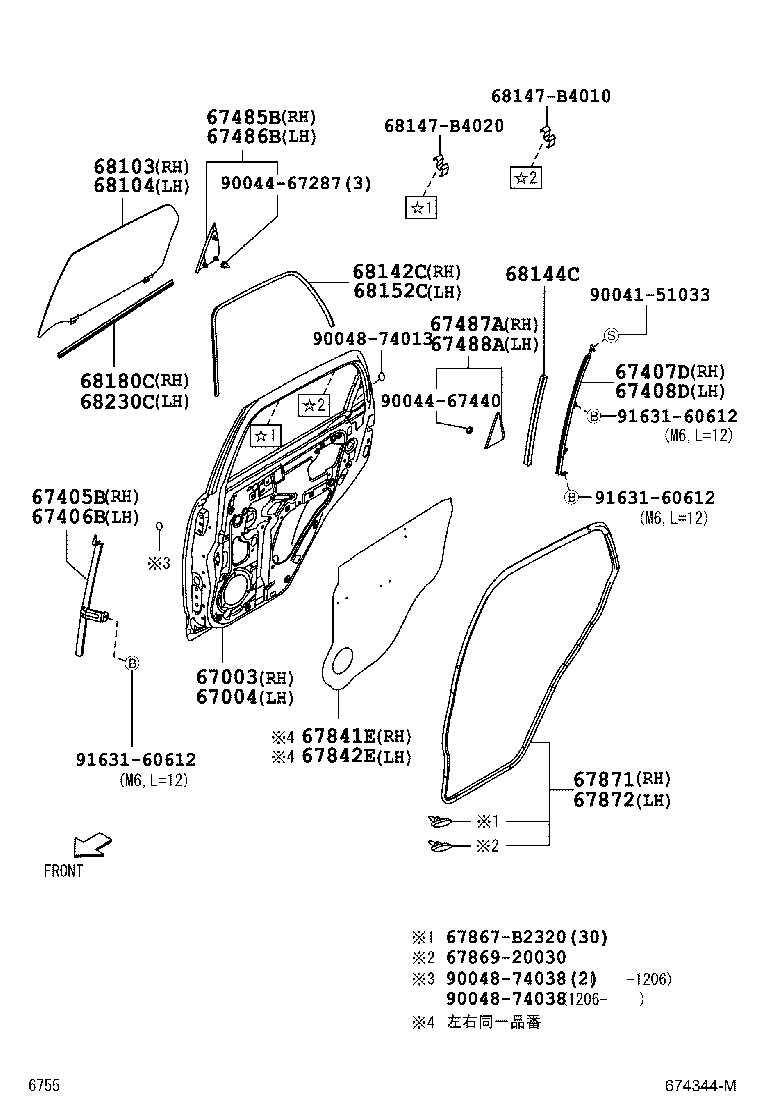

diagram 67003 67004 67405B 67406B 67407D 67408D 67485B 67486B 67487A 67488A 67841E 67842E 67867B2320 6786920030 67871 67872 68103 68104 68142C 68144C 68147B4010 68147B4020 68152C 68180C 68230C 9004151033 9004467287 9004467440 9004874013 9004874038 9004874038 9163160612 9163160612 9163160612
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-B4010

J200,210

 1
67003-B4060

J200,210

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-B4010

J200,210

 1
67004-B4060

J200,210

 1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-B4010

J200,210

 1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-B4010

J200,210

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-B4010

J200,210

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-B4010

J200,210

 1
67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67485-B4010

J200,210

 1
67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67486-B4010

J200,210

 1
67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67487-B4010

J200,210

 1
67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67488-B4010

J200,210

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-B4010

J200,210

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-B4010

J200,210

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-B4010

J200,210

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-B4010

J200,210

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-B4020

J200,210

ｽﾓｰｸ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-B4020

J200,210

ｽﾓｰｸ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-B4010

J200,210

 1
68144C - RUN, REAR DOOR GLASS, LOWER FRONT
68144-B4010

J200,210

 2
68143-B2040

J200,210

 2
68152C - RUN, REAR DOOR GLASS, LH
68152-B4010

J200,210

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68163-B4010

J200,210

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68164-B4010

J200,210

 1
Common parts
67867-B2320
67869-20030
68147-B4010
68147-B4020
90041-51033
90044-67287
90044-67440
90048-74013
90048-74038
91631-60612

(0601-1605)

Click highlighted areas on diagram

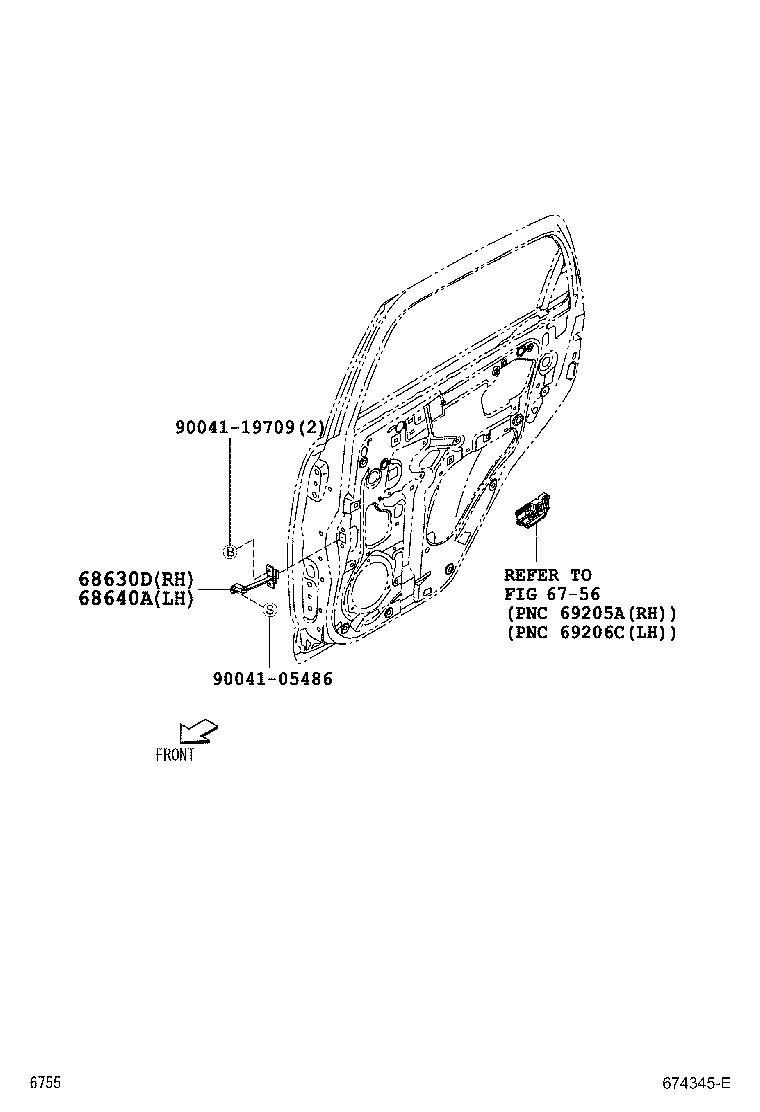

diagram 6756 68630D 68640A 9004105486 9004119709
Part # Description Qty Price
68630D - CHECK ASSY, REAR DOOR, RH
68630-B4010

J200,210

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-B4010

J200,210

 1
68630-B4010

J200,210

 1
Common parts
90041-05486
90041-19709
Linked diagrams
6756

(0601-1605)

Click highlighted areas on diagram

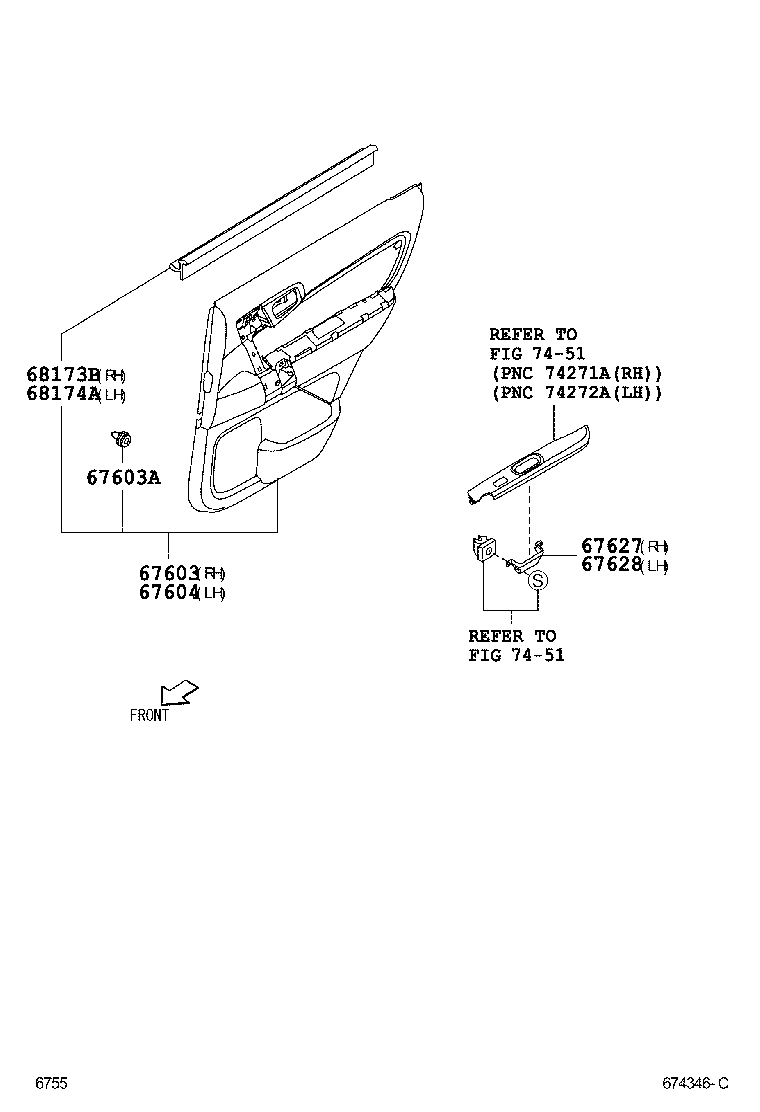

diagram 67603 67603A 67604 67627 67628 68173B 68174A 7451 7451
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-B4050B0

J200,210..G

G−LIMITED *(H),-,TRIM1#

 1
67630-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-B2010

J200,210

 14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-B4040B0

J200,210..G

G−LIMITED *(H),-,TRIM1#

 1
67640-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67625-B4010

J200,210

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67635-B4010

J200,210

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-B4010

J200,210

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-B4010

J200,210

 1
Linked diagrams
7451

(0601-1605)

Click highlighted areas on diagram

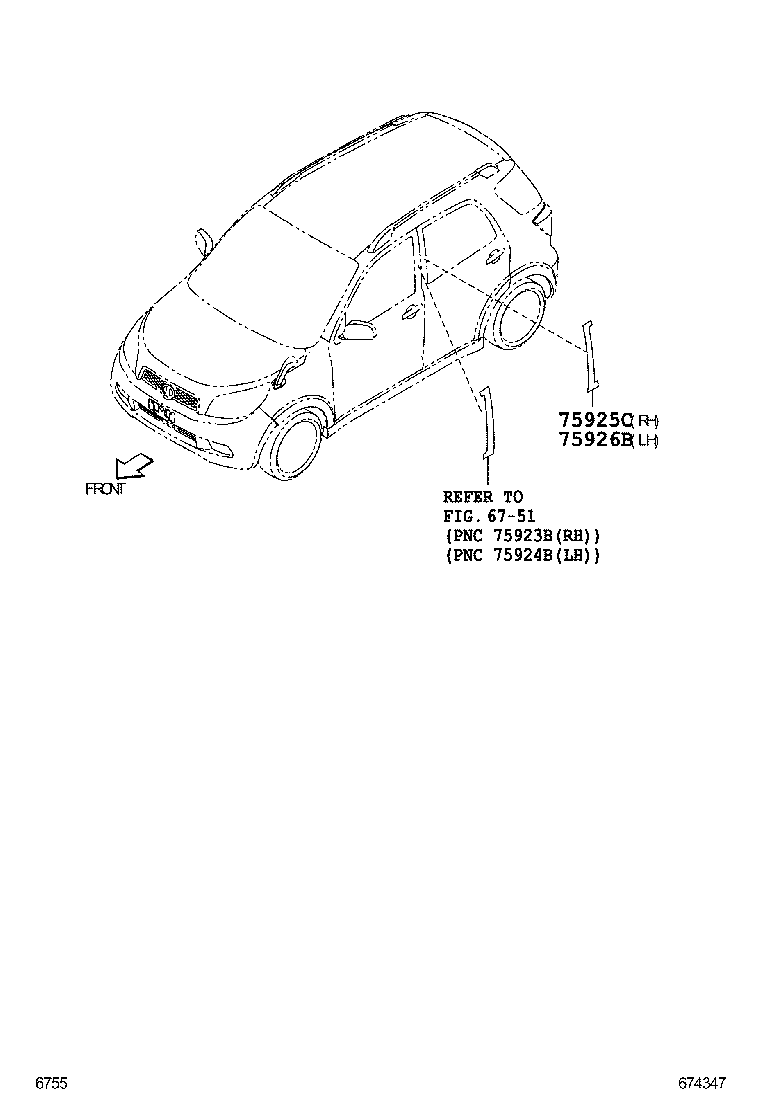

diagram 6751 75925C 75926B
Part # Description Qty Price
75925C - TAPE, BLACK OUT, NO.3 RH
75925-B4010C0

J200,210

TUYAKESI BLACK DUMMYCOLOR,B58 ,G37 ,G41 ,R40 ,S28 ,S33 ,W20 ,W23 ,W24 ,Y09

 1
75925-B4020C0

J200,210

TUYAKESI BLACK DUMMYCOLOR,B58 ,G37 ,G41 ,R40 ,S28 ,S33 ,W24

 1
75926B - TAPE, BLACK OUT, NO.3 LH
75926-B4010C0

J200,210

TUYAKESI BLACK DUMMYCOLOR,B58 ,G37 ,G41 ,R40 ,S28 ,S33 ,W20 ,W23 ,W24 ,Y09

 1
75926-B4020C0

J200,210

TUYAKESI BLACK DUMMYCOLOR,B58 ,G37 ,G41 ,R40 ,S28 ,S33 ,W24

 1
Linked diagrams
6751
