J210E-GMGF (2006)
Toyota Rush
(0601-1605)

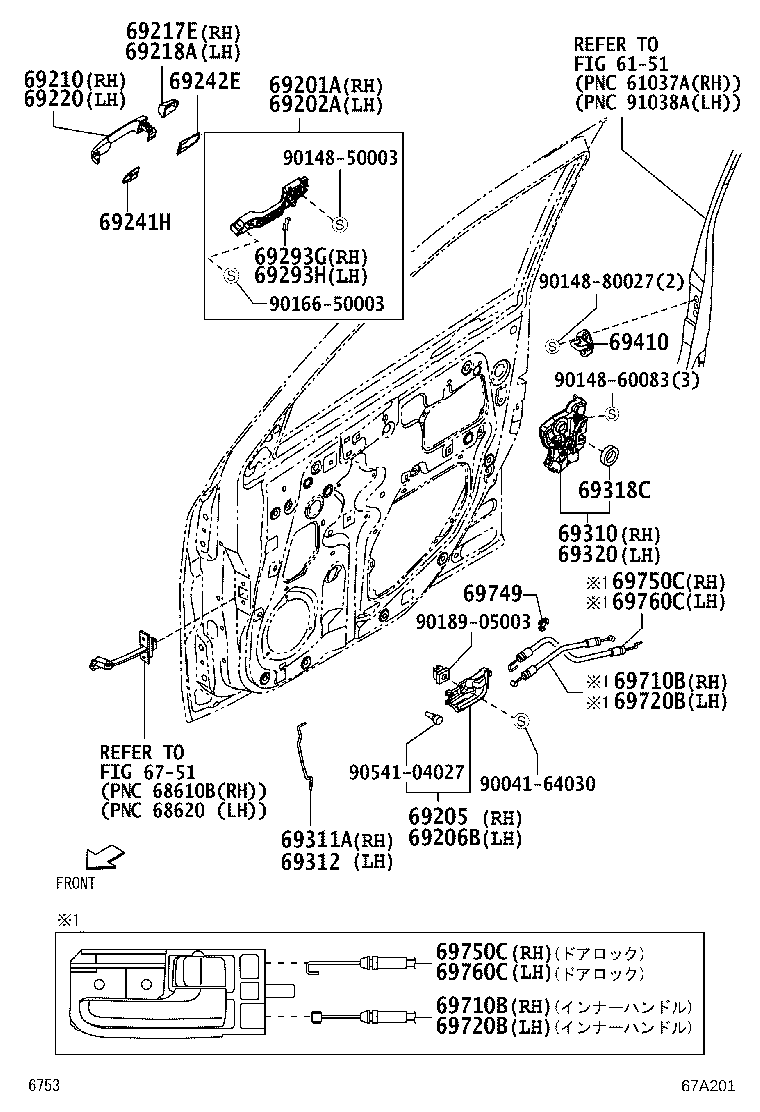

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-B1020 |
J200,210..X #−ｷｰﾌﾘｰ |
1 | ||
| 69201-B1010 |
J200,210..X |
1 | ||
| 69201-B1010 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ |
1 | ||
| 69201-B1020 |
J200,210..G |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-B1010 |
J200,210 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-B1010 |
J200,210 |
1 | ||
| 69205-B1020 |
J200,210..G G−LIMITED *(H) |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-B1020 |
J200,210..G G−LIMITED *(H) |
1 | ||
| 69206-B1010 |
J200,210 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-B1030A4 |
J200,210..X #−ｷｰﾌﾘｰ,WHITE,W23 |
1 | ||
| 69210-B1030F0 |
J200,210..G YELLOW,Y09 |
1 | ||
| 69210-B1030B0 |
J200,210..G SILVER ME.,S28 |
1 | ||
| 69210-B1030B0 |
J200,210..X #−ｷｰﾌﾘｰ,SILVER ME.,S28 |
1 | ||
| 69210-B1030B2 |
J200,210..X #−ｷｰﾌﾘｰ,GRAY ME.,S33 |
1 | ||
| 69211-B1010F0 |
J200,210..X YELLOW,Y09 |
1 | ||
| 69210-B1030B2 |
J200,210..G GRAY ME.,S33 |
1 | ||
| 69210-B1030C0 |
J200,210..X #−ｷｰﾌﾘｰ,BLACK M.M.,X07 |
1 | ||
| 69210-B1030C0 |
J200,210..G BLACK M.M.,X07 |
1 | ||
| 69210-B1030J1 |
J200,210..G BLUE M.M.,B58 |
1 | ||
| 69210-B1030G1 |
J200,210..X #−ｷｰﾌﾘｰ,LIME GREEN M.M.,G41 |
1 | ||
| 69211-B1010A1 |
J200,210..X WHITE,W20 |
1 | ||
| 69210-B1030F0 |
J200,210..X #−ｷｰﾌﾘｰ,YELLOW,Y09 |
1 | ||
| 69210-B1030G1 |
J200,210..G LIME GREEN M.M.,G41 |
1 | ||
| 69210-B1030J1 |
J200,210..X #−ｷｰﾌﾘｰ,BLUE M.M.,B58 |
1 | ||
| 69210-B1030D1 |
J200,210..G RED,R40 |
1 | ||
| 69210-B1030A4 |
J200,210..G WHITE,W23 |
1 | ||
| 69211-B1010J0 |
J200,210..X BLUE M.M.,B58 |
1 | ||
| 69211-B1010A2 |
J200,210..X WHITE,W23 |
1 | ||
| 69210-B1030D1 |
J200,210..X #−ｷｰﾌﾘｰ,RED,R40 |
1 | ||
| 69211-B1010R0 |
J200,210..X RED,R40 |
1 | ||
| 69211-B1010G2 |
J200,210..X LIME GREEN M.M.,G41 |
1 | ||
| 69210-B1030A5 |
J200,210..X #−ｷｰﾌﾘｰ,WHITE PEARL MC.CS,W24 |
1 | ||
| 69210-B1030G3 |
J200,210..G BRITISH GREEN MC.,G37 |
1 | ||
| 69211-B1010B1 |
J200,210..X GRAY ME.,S33 |
1 | ||
| 69211-B1010S8 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,SILVER ME.,S28 |
1 | ||
| 69211-B1010G3 |
J200,210..X BRITISH GREEN MC.,G37 |
1 | ||
| 69210-B1030A5 |
J200,210..G WHITE PEARL MC.CS,W24 |
1 | ||
| 69210-B1030G3 |
J200,210..X #−ｷｰﾌﾘｰ,BRITISH GREEN MC.,G37 |
1 | ||
| 69211-B1010B1 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,GRAY ME.,S33 |
1 | ||
| 69211-B1010G2 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,LIME GREEN M.M.,G41 |
1 | ||
| 69211-B1010A3 |
J200,210..X WHITE PEARL MC.CS,W24 |
1 | ||
| 69211-B1010S8 |
J200,210..X SILVER ME.,S28 |
1 | ||
| 69211-B1010X7 |
J200,210..X BLACK M.M.,X07 |
1 | ||
| 69211-B1010J0 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,BLUE M.M.,B58 |
1 | ||
| 69211-B1010X7 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,BLACK M.M.,X07 |
1 | ||
| 69211-B1010A3 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,WHITE PEARL MC.CS,W24 |
1 | ||
| 69211-B1010G3 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,BRITISH GREEN MC.,G37 |
1 | ||
| 69211-B1010R0 |
J200,210..G G−LIMITED *(H)&#−ｷｰﾚｽ,RED,R40 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-B1010G2 |
J200,210 LIME GREEN M.M.,G41 |
1 | ||
| 69217-B1010J0 |
J200,210 BLUE M.M.,B58 |
1 | ||
| 69217-B1010R0 |
J200,210 RED,R40 |
1 | ||
| 69217-B1010B1 |
J200,210 GRAY ME.,S33 |
1 | ||
| 69217-B1010A2 |
J200,210..G WHITE,W23 |
1 | ||
| 69217-B1010A2 |
J200,210..X WHITE,W23 |
1 | ||
| 69217-B1010G3 |
J200,210 BRITISH GREEN MC.,G37 |
1 | ||
| 69217-B1010S8 |
J200,210 SILVER ME.,S28 |
1 | ||
| 69217-B1010F0 |
J200,210 YELLOW,Y09 |
1 | ||
| 69217-B1010A3 |
J200,210 WHITE PEARL MC.CS,W24 |
1 | ||
| 69217-B1010X7 |
J200,210 BLACK M.M.,X07 |
1 | ||
| 69217-B1010A1 |
J200,210..X WHITE,W20 |
1 | ||
| 69218A - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69218-B1010A2 |
J200,210..X WHITE W20 ONAJI 2C1B,W23 |
1 | ||
| 69218-B1010A1 |
J200,210..X WHITE,W20 |
1 | ||
| 69218-B1010S8 |
J200,210 SILVER ME.,S28 |
1 | ||
| 69218-B1010G3 |
J200,210 BRITISH GREEN MC.,G37 |
1 | ||
| 69218-B1010F0 |
J200,210 YELLOW,Y09 |
1 | ||
| 69218-B1010B1 |
J200,210 GRAY ME.,S33 |
1 | ||
| 69218-B1010X7 |
J200,210 BLACK M.M.,X07 |
1 | ||
| 69218-B1010R0 |
J200,210 RED,R40 |
1 | ||
| 69218-B1010G2 |
J200,210 LIME GREEN M.M.,G41 |
1 | ||
| 69218-B1010A2 |
J200,210..G WHITE W20 ONAJI 2C1B,W23 |
1 | ||
| 69218-B1010J0 |
J200,210 BLUE M.M.,B58 |
1 | ||
| 69218-B1010A3 |
J200,210 WHITE PEARL MC.CS,W24 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-B1010A2 |
J200,210..G WHITE,W23 |
1 | ||
| 69211-B1010B1 |
J200,210 GRAY ME.,S33 |
1 | ||
| 69211-B1010G2 |
J200,210 LIME GREEN M.M.,G41 |
1 | ||
| 69211-B1010R0 |
J200,210 RED,R40 |
1 | ||
| 69211-B1010F0 |
J200,210 YELLOW,Y09 |
1 | ||
| 69211-B1010A1 |
J200,210..X WHITE,W20 |
1 | ||
| 69211-B1010X7 |
J200,210 BLACK M.M.,X07 |
1 | ||
| 69211-B1010S8 |
J200,210 SILVER ME.,S28 |
1 | ||
| 69211-B1010A3 |
J200,210 WHITE PEARL MC.CS,W24 |
1 | ||
| 69211-B1010A2 |
J200,210..X WHITE,W23 |
1 | ||
| 69211-B1010J0 |
J200,210 BLUE M.M.,B58 |
1 | ||
| 69211-B1010G3 |
J200,210 BRITISH GREEN MC.,G37 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-B1010 |
J200,210 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-B1010 |
J200,210 |
2 | ||
| 69242-B1020 |
J200,210 |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-B1010 |
J200,210 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-B1010 |
J200,210 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-B1020 |
J200,210 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-B4010 |
J200,210 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-B4010 |
J200,210 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-B1010 |
J200,210 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-B1010 |
J200,210 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-B2030 |
J200,210 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-B4010 |
J200,210 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-B4010 |
J200,210 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-B4010 |
J200,210 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-B4010 |
J200,210 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
J200,210 |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-B4010 |
J200,210 ﾄﾞｱﾛﾂｸ |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-B4010 |
J200,210 ﾄﾞｱﾛﾂｸ |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-B4010 |
J200,210 ﾄﾞｱﾛﾂｸ |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-B4010 |
J200,210 ﾄﾞｱﾛﾂｸ |
1 | ||
| Common parts | ||||
| 90041-64030 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80027 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90541-04027 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 6751 | ||||
