J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

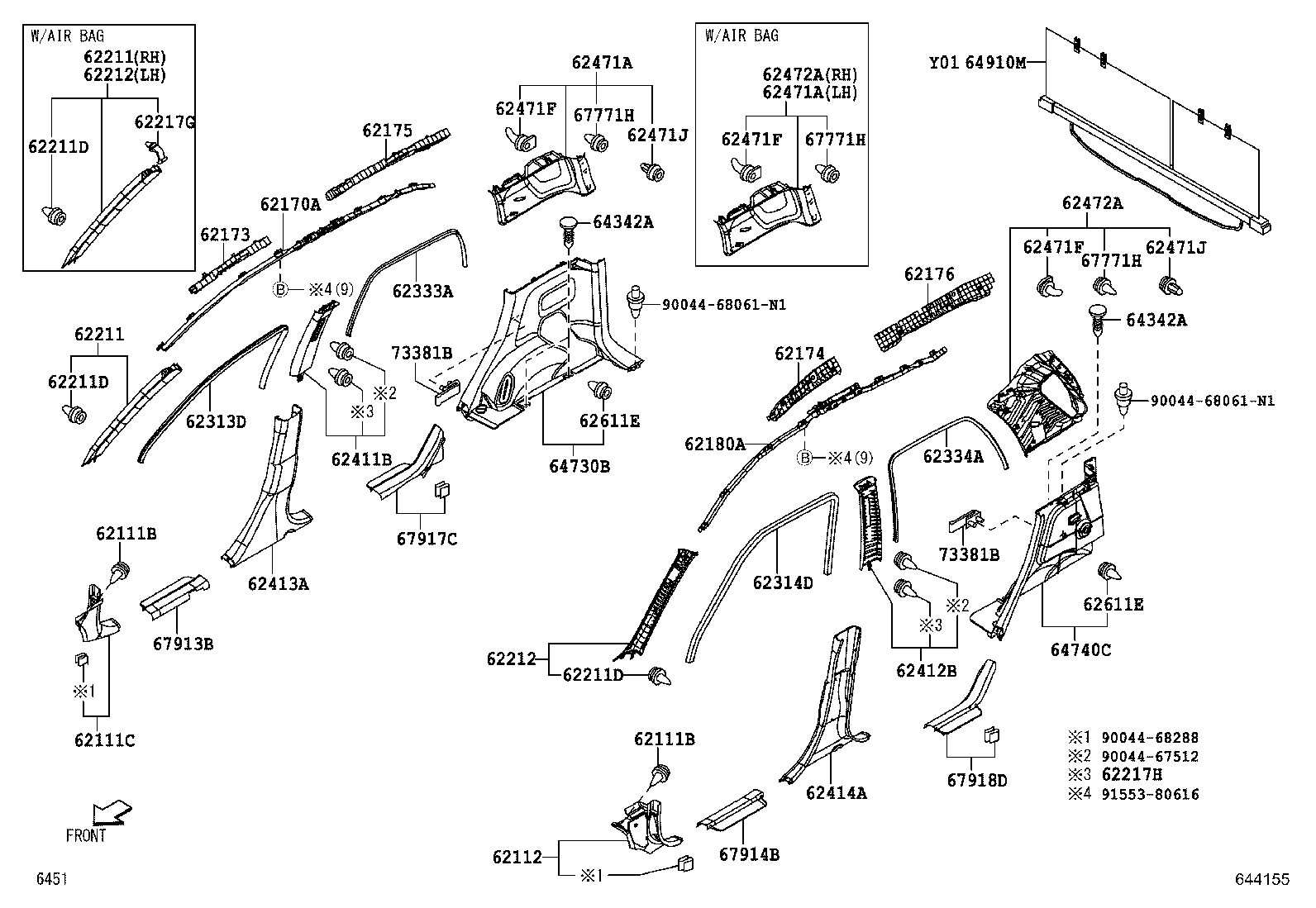

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62170A 62173 62174 62175 62176 62180A 62211 62211 62211D 62211D 62211D 62212 62212 62217G 62217H 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62471A 62471A 62471F 62471F 62471F 62471J 62471J 62472A 62472A 62611E 62611E 64342A 64342A 64730B 64740C 64910M 67771H 67771H 67771H 67913B 67914B 67917C 67918D 73381B 73381B 9004467512 9004468061N1 9004468061N1 9004468288 9155380616
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90044-67397

J200,210

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90044-67397

J200,210

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-B4010

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 1
62173 - GARNISH, SIDE WINDOW, FRONT RH
63691-B4010

J200,210

 1
62174 - GARNISH, SIDE WINDOW, FRONT LH
63692-B4010

J200,210

 1
62175 - GARNISH, SIDE WINDOW, REAR RH
63693-B4010

J200,210

 1
62176 - GARNISH, SIDE WINDOW, REAR LH
63694-B4010

J200,210

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-B4010

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62211-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62211-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90044-68346

J200,210

 6
90044-68346

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90044-68346

J200,210

 6
90044-68346

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90044-68346

J200,210

 6
90044-68346

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62212 - GARNISH, FRONT PILLAR, LH
62212-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62212-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62212-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-52030

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),左側

 1
62217-52050

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側

 1
62217H - CLIP, CENTER PILLER GARNISH
62217-B2010

J200,210

 2
62313D - TRIM, FRONT DOOR OPENING, RH
62313-B4020

J200,210

 1
62313-B4010

J200,210

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-B4020

J200,210

 1
62314-B4010

J200,210

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-B4010

J200,210

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-B4010

J200,210

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62471-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62471-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62217-B2020

J200,210

 4
62217-B2020

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62217-B2020

J200,210

材料着色

 2
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62217-B2020

J200,210

 4
62217-B2020

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62217-B2020

J200,210

材料着色

 2
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62217-B2020

J200,210

 4
62217-B2020

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 4
62217-B2020

J200,210

材料着色

 2
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

J200,210

 4
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

J200,210

 4
62472A - GARNISH, ROOF SIDE, INNER LH
62472-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62472-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-B4020B0

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),LT.GRAY,TRIM1#

 1
62472-B4010B0

J200,210

LT.GRAY,TRIM1#

 1
62611E - RETAINER, DOOR TRIM
67771-B2010

J200,210

 8
62611E - RETAINER, DOOR TRIM
67771-B2010

J200,210

 8
64342A - CLIP
90044-68046N1

J200,210

BLACK

 4
90044-68046B2

J200,210

DK.GRAY

 4
64342A - CLIP
90044-68046N1

J200,210

BLACK

 4
90044-68046B2

J200,210

DK.GRAY

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
64910M - COVER ASSY, TONNEAU
67063-B4010B0

J200,210

ﾄﾉｶﾊﾞｰ,DK.GRAY,TRIM1#

 1
67771H - RETAINER, DOOR TRIM
67771-B2010

J200,210

 14
67771-B2010

J200,210

 12
67771-B2010

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 14
67771H - RETAINER, DOOR TRIM
67771-B2010

J200,210

 14
67771-B2010

J200,210

 12
67771-B2010

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 14
67771H - RETAINER, DOOR TRIM
67771-B2010

J200,210

 14
67771-B2010

J200,210

 12
67771-B2010

J200,210

#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)

 14
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
67918D - PLATE, REAR DOOR SCUFF, LH
67918-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
73381B - HOLDER, REAR SEAT BELT
73381-87202B2

J200,210

DK.GRAY,TRIM1#

 2
73381B - HOLDER, REAR SEAT BELT
73381-87202B2

J200,210

DK.GRAY,TRIM1#

 2
Common parts
90044-67512
90044-68061N1
90044-68288
91553-80616
