J210E-GMGF (2006)
Toyota Rush

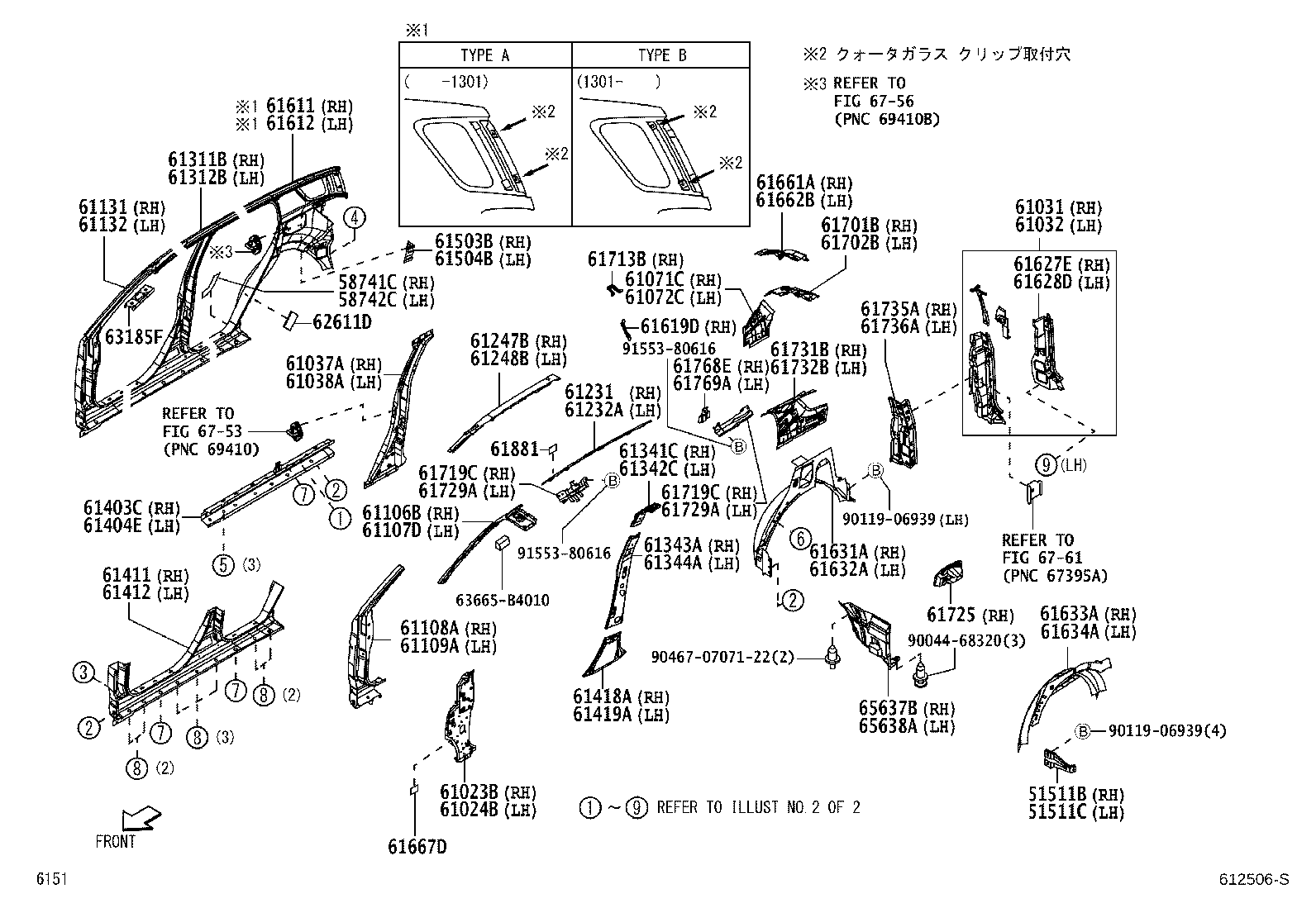

ILLUST NO. 1 OF 2(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51511B - GUSSET, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51511-B4010 |
J200,210 |
1 | ||
| 51511C - GUSSET, UPPER CONTROL ARM SUPPORT, LH | ||||
| 51511-B4010 |
J200,210 |
1 | ||
| 58741C - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-B4010 |
J200,210 寒冷地仕様 |
1 | ||
| 58741-B4010 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-B4010 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 58742-B4010 |
J200,210 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-B4010 |
J200,210 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-B4010 |
J200,210 |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-B4010 |
J200,210 |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-B4020 |
J200,210 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-B4010 |
J200,210 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-B4010 |
J200,210 |
1 | ||
| 61071C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH | ||||
| 61071-B4010 |
J200,210 |
1 | ||
| 61072C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH | ||||
| 61072-B4010 |
J200,210 |
1 | ||
| 61106B - PILLAR SUB-ASSY, FRONT, RH | ||||
| 61106-B4010 |
J200,210 |
1 | ||
| 61107D - PILLAR SUB-ASSY, FRONT, LH | ||||
| 61107-B4010 |
J200,210 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-B4010 |
J200,210 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-B4010 |
J200,210 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-B4060 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61131-B4080 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61131-B4050 |
J200,210 |
1 | ||
| 61131-B4070 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61131-B4080 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61131-B4070 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-B4050 |
J200,210 |
1 | ||
| 61132-B4060 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61132-B4070 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61132-B4080 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61132-B4070 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61132-B4080 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-B4010 |
J200,210 |
1 | ||
| 61232A - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-B4010 |
J200,210 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-B4010 |
J200,210 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-B4010 |
J200,210 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-B4040 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61311-B4040 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61311-B4030 |
J200,210 |
1 | ||
| 61311-B4040 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-B4040 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61312-B4030 |
J200,210 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-B4010 |
J200,210 |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-B4010 |
J200,210 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-B4010 |
J200,210 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-B4010 |
J200,210 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-B4010 |
J200,210 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-B4010 |
J200,210 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-B4030 |
J200,210 |
1 | ||
| 61411-B4040 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61411-B4040 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61411-B4040 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-B4030 |
J200,210 |
1 | ||
| 61412-B4040 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61412-B4040 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61412-B4040 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-B4010 |
J200,210 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-B4010 |
J200,210 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-B4010 |
J200,210 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-B4010 |
J200,210 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-B4050 |
J200,210 |
1 | ||
| 61611-B4060 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61611-B4070 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61611-B4080 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61611-B4070 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61611-B4080 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-B4050 |
J200,210 |
1 | ||
| 61612-B4060 |
J200,210 ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61612-B4070 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61612-B4070 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61612-B4080 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 61612-B4080 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-B4010 |
J200,210 |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-B4010 |
J200,210 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-B4010 |
J200,210 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 65608-B4010 |
J200,210 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 65609-B4010 |
J200,210 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-B4010 |
J200,210 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-B4010 |
J200,210 |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-B4010 |
J200,210 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-B4010 |
J200,210 |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-87213 |
J200,210 |
2 | ||
| 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH | ||||
| 61701-B4010 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61701-B4010 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61701-B4020 |
J200,210 |
1 | ||
| 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH | ||||
| 61702-B4020 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 61702-B4020 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 61702-B4010 |
J200,210 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-B4010 |
J200,210 |
1 | ||
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-B4020 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾘﾔ |
1 | ||
| 61719-B4010 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾌﾛﾝﾄ |
1 | ||
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-B4020 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾘﾔ |
1 | ||
| 61719-B4010 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾌﾛﾝﾄ |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-B4010 |
J200,210 |
1 | ||
| 61729A - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-B4020 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾘﾔ |
1 | ||
| 61729-B4010 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾌﾛﾝﾄ |
1 | ||
| 61729A - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-B4020 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾘﾔ |
1 | ||
| 61729-B4010 |
J200,210 #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),ﾌﾛﾝﾄ |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-B4010 |
J200,210 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-B4010 |
J200,210 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-B4010 |
J200,210 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-B4010 |
J200,210 |
1 | ||
| 61768E - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61768-B4010 |
J200,210 |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61769-B4010 |
J200,210 |
1 | ||
| 61881 - SEAL, ROOF SIDE RAIL, FRONT RH | ||||
| 61881-B2010 |
J200,210 |
2 | ||
| 61881-B2010 |
J200,210 |
1 | ||
| 62611D - PAD, QUARTER WHEEL HOUSE, RH | ||||
| 62611-B4010 |
J200,210 |
1 | ||
| 63185F - BRACKET, ROOF RACK, FRONT | ||||
| 63185-B4010 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り&ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ |
1 | ||
| 63185-B4010 |
J200,210..G ｻｲﾄﾞｽﾄｰﾝｶﾞｰﾄﾞ&ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 63185-B4010 |
J200,210..G ﾙｰﾌ ﾚｰﾙ−有り |
1 | ||
| 63185-B4010 |
J200,210..X ﾘｱ ｽﾎﾟｲﾗ−有り |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-B4010 |
J200,210 |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 63665-B4010 | ||||
| 90044-68320 | ||||
| 90119-06939 | ||||
| 90467-0707122 | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 6756 | ||||
| 6761 | ||||
ILLUST NO. 2 OF 2(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90048-71116 | ||||
| 90048-71292 | ||||
| 90048-71315 | ||||
| 90048-74013 | ||||
| 90048-74038 | ||||
| 90048-74056 | ||||
| 90048-74078 | ||||
| 90950-01550 | ||||
| 90950-01955 | ||||
(0601-1605)
