J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

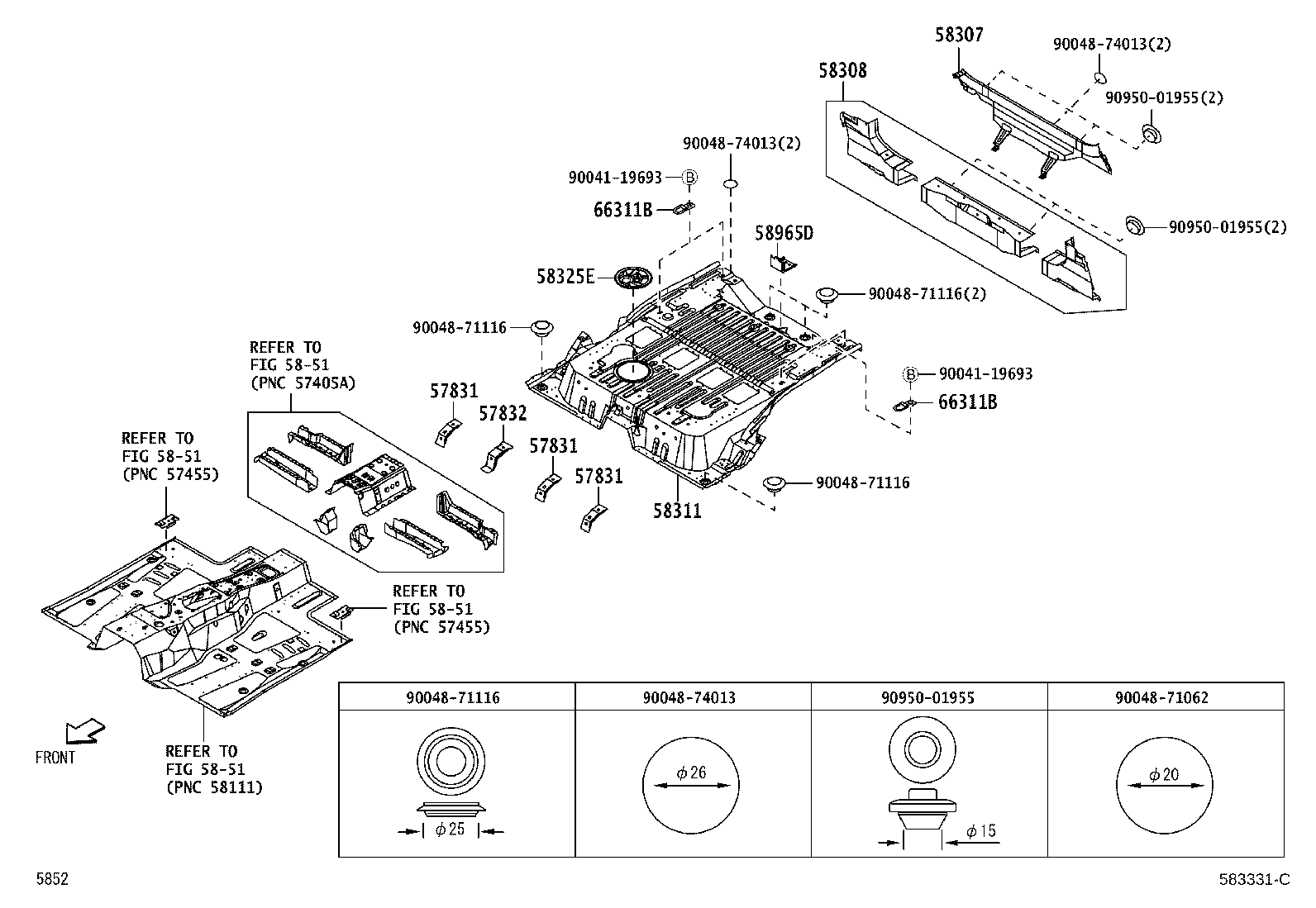

Click highlighted areas on diagram

diagram 57831 57831 57831 57832 58307 58308 58311 58325E 5851 5851 5851 5851 58965D 66311B 66311B 9004119693 9004119693 9004871062 9004871116 9004871116 9004871116 9004871116 9004874013 9004874013 9004874013 9095001955 9095001955 9095001955
Part # Description Qty Price
57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-B4010

J200,210

 3
57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-B4010

J200,210

 3
57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-B4010

J200,210

 3
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-B4010

J200,210

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-B4010

J200,210

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-B4010

J200,210

 1
58311 - PAN, REAR FLOOR
58311-B4010

J200,210

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-B4010

J200,210

 1
58965D - BRACKET, JACK SUPPORT
58965-B4010

J200,210

 1
66311B - HOOK, ROPE
66311-B4010

J200,210

 4
66311B - HOOK, ROPE
66311-B4010

J200,210

 4
Common parts
90041-19693
90048-71062
90048-71116
90048-74013
90950-01955
Linked diagrams
5851

(0601-1605)

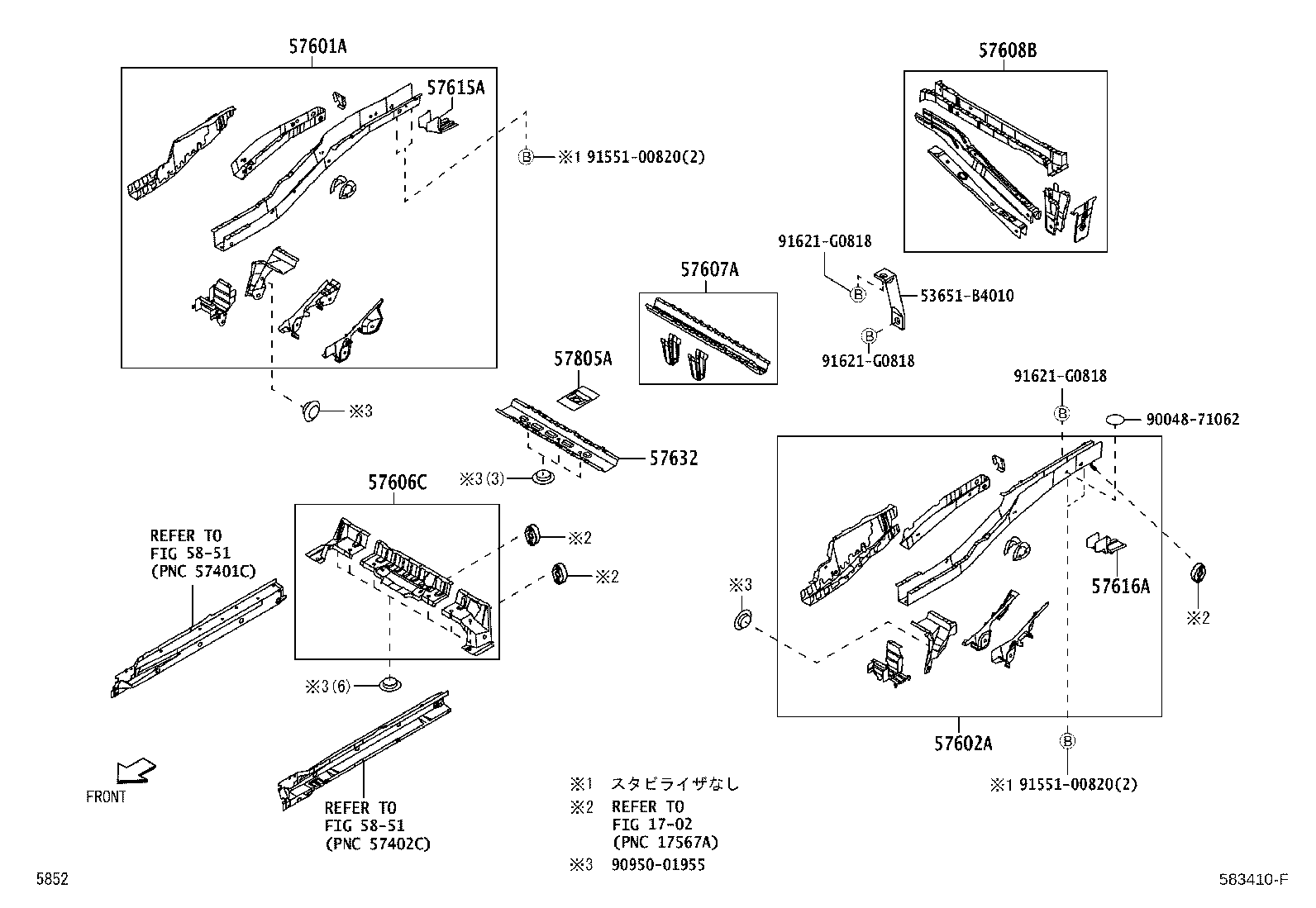

Click highlighted areas on diagram

diagram 1702 53651B4010 57601A 57602A 57606C 57607A 57608B 57615A 57616A 57632 57805A 5851 5851 9004871062 9095001955 9155100820 9155100820 91621G0818 91621G0818 91621G0818
Part # Description Qty Price
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-B4010

J200,210

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-B4010

J200,210

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-B4010

J200,210

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-B4010

J200,210

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-B4010

J200,210

 1
57632 - MEMBER, REAR FLOOR, CENTER NO.1
57632-B4010

J200,210

 1
57805A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-B4010

J200,210

 4
Common parts
53651-B4010
90048-71062
90950-01955
91551-00820
91621-G0818
Linked diagrams
1702
5851
