J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

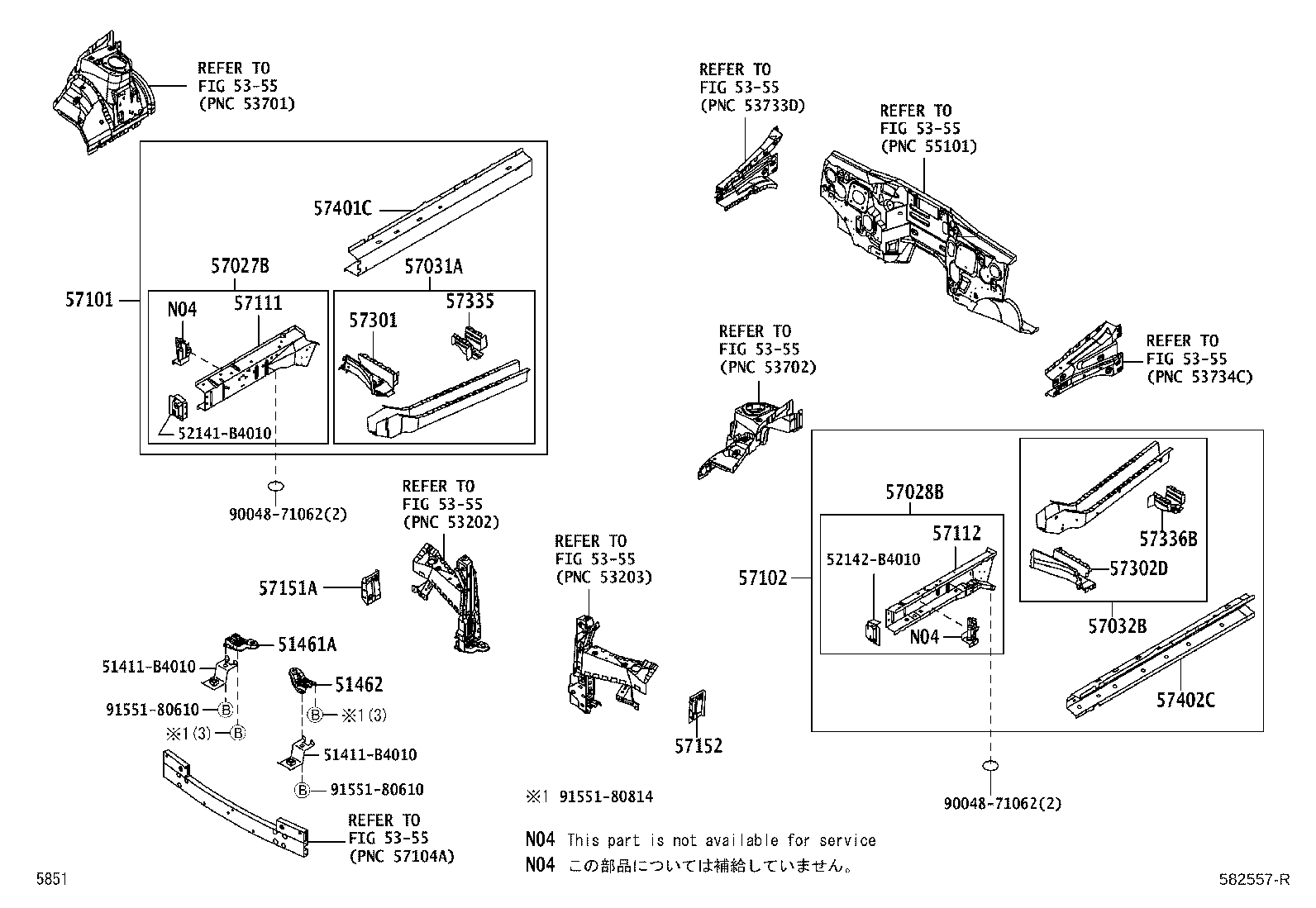

Click highlighted areas on diagram

diagram 51411B4010 51411B4010 51461A 51462 52141B4010 52142B4010 5355 5355 5355 5355 5355 5355 5355 5355 57027B 57028B 57031A 57032B 57101 57102 57111 57112 57151A 57152 57301 57302D 57335 57336B 57401C 57402C 9004871062 9004871062 9155180610 9155180610 9155180814
Part # Description Qty Price
51461A - BRACKET, RADIATOR MOUNTING, LOWER RH
51461-B4010

J200,210

 1
51462 - BRACKET, RADIATOR MOUNTING, LOWER LH
51462-B4010

J200,210

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-B4010

J200,210

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-B4010

J200,210

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-B4020

J200,210

 1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-B4020

J200,210

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-B4020

J200,210

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-B4020

J200,210

 1
57111 - MEMBER, FRONT SIDE, RH
57111-B4010

J200,210

 1
57112 - MEMBER, FRONT SIDE, LH
57112-B4010

J200,210

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-B4010

J200,210

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-B4010

J200,210

 1
57301 - OUTRIGGER SUB-ASSY, NO.1 RH
57301-B4010

J200,210

 1
57302D - OUTRIGGER SUB-ASSY, NO.1 LH
57302-B4010

J200,210

 1
57335 - OUTRIGGER, NO.2 FRONT RH
57335-B4010

J200,210

 1
57336B - OUTRIGGER, NO.2 FRONT LH
57336-B4010

J200,210

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-B4020

J200,210

 1
57402C - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-B4020

J200,210

 1
Common parts
51411-B4010
52141-B4010
52142-B4010
90048-71062
91551-80610
91551-80814
Linked diagrams
5355

(0601-1605)

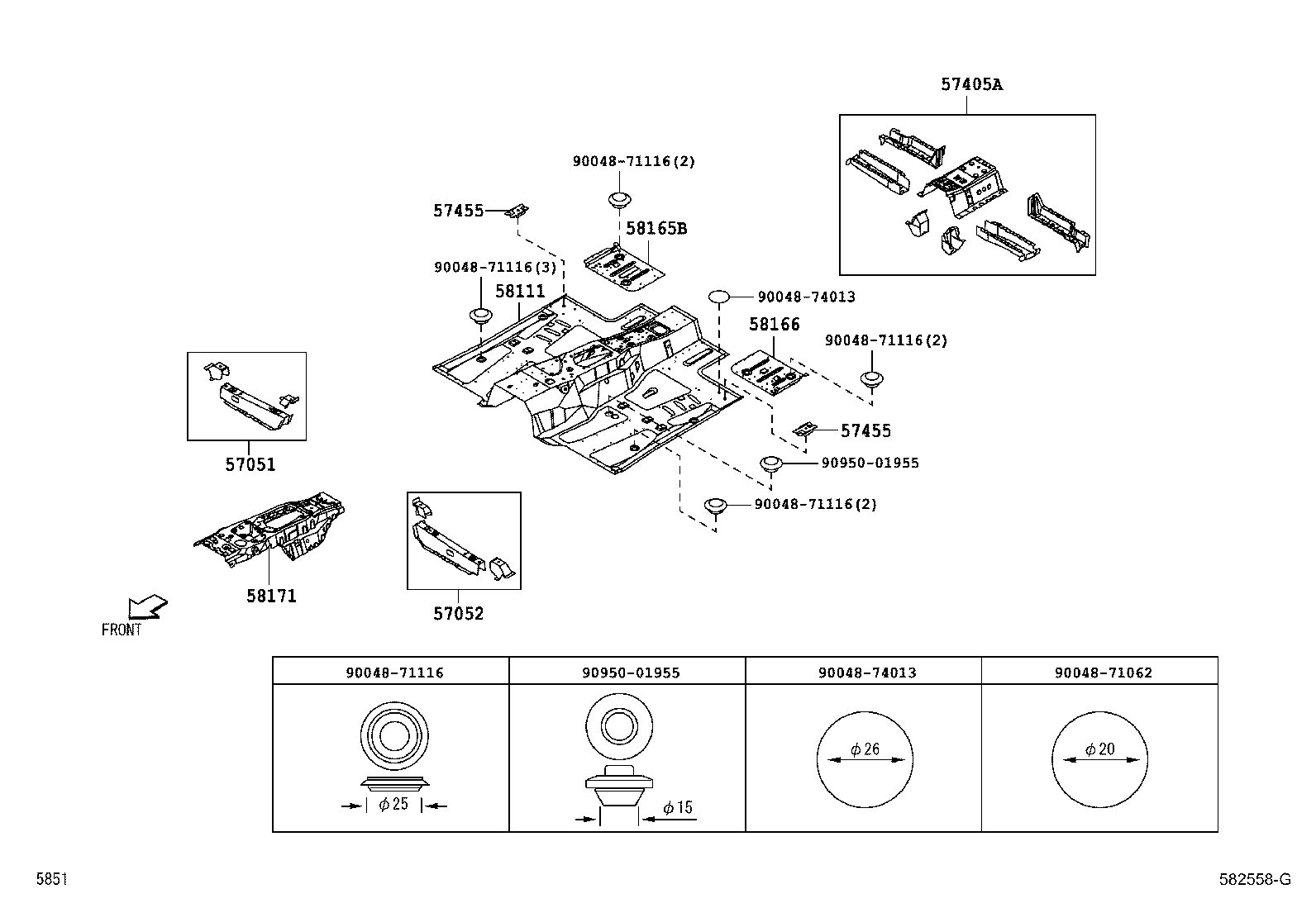

Click highlighted areas on diagram

diagram 57051 57052 57405A 57455 57455 58111 58165B 58166 58171 9004871062 9004871116 9004871116 9004871116 9004871116 9004871116 9004874013 9004874013 9095001955 9095001955
Part # Description Qty Price
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-B4010

J200,210

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-B4010

J200,210

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407-B4010

J200,210

 1
57455 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57455-B4010

J200,210

 2
57455 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57455-B4010

J200,210

 2
58111 - PAN, FRONT FLOOR
58111-B4010

J200,210

 1
58165B - COVER, FRONT FLOOR, RH
58165-B4011

J200,210

 1
58166 - COVER, FRONT FLOOR, LH
58166-B4010

J200,210

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-B4010

J200,210

 1
Common parts
90048-71062
90048-71116
90048-74013
90950-01955
