J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0811)

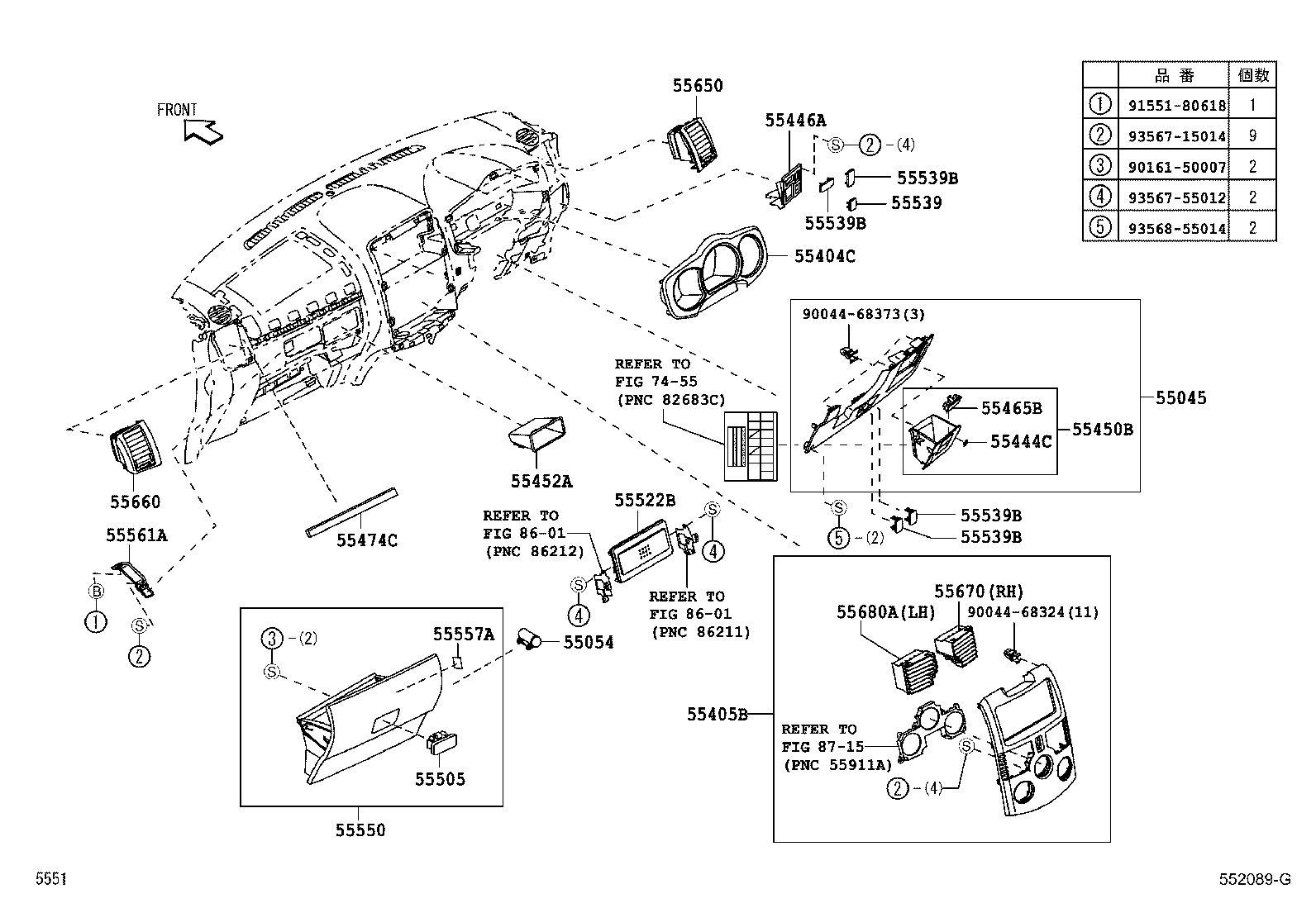

Click highlighted areas on diagram

diagram 55045 55054 55404C 55405B 55444C 55446A 55450B 55452A 55465B 55474C 55505 55522B 55539 55539B 55539B 55539B 55539B 55550 55557A 55561A 55650 55660 55670 55680A 7455 8601 8601 8715 9004468324 9004468373 9016150007 9155180618 9356715014 9356755012 9356855014
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-12010

J200,210

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-B4030

J200,210

 1
55404-B4030

J200,210

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-B4020

J200,210..X

 1
55405-B4010

J200,210..X

ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55405-B4030

J200,210..G

ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55405-B4020

J200,210..X

 1
55405-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55405-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)&ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55405-B4030

J200,210..G

ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55405-B4040

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
55405-B4040

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
55405-B4040

J200,210..G

 1
55405-B4040

J200,210..G

 1
55405-B4010

J200,210..X

ｵｰﾃﾞｨｵ−AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4

 1
55444C - SPRING, INSTRUMENT PANEL BOX
55444-B4010

J200,210

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55450B - BOX ASSY, COIN
55450-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55452A - BOX, INSTRUMENT PANEL, NO.2
55452-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55465B - KNOB, INSTRUMENT PANEL BOX LOCK
55465-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55506-44010B0

J200,210

DK.GRAY,TRIM1#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

J200,210

 1
55539 - COVER, SPARE SWITCH HOLE
55539-B2030B1

J200,210

ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,DK.GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-B2010S2

J200,210

DK.GRAY,TRIM1#

 4
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-B2010S2

J200,210

DK.GRAY,TRIM1#

 4
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-B2010S2

J200,210

DK.GRAY,TRIM1#

 4
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-B2010S2

J200,210

DK.GRAY,TRIM1#

 4
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-B2010

J200,210

 2
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-B4010

J200,210

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-B4010

J200,210

 1
55670-B4010

J200,210

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-B4010

J200,210

 1
55680-B4010

J200,210

 1
Common parts
90044-68324
90044-68373
90161-50007
91551-80618
93567-15014
93567-55012
93568-55014
Linked diagrams
7455
8601
8715

(0601-1605)

Click highlighted areas on diagram

diagram 55301 55305C 55306A 55349A 55355 55356C 55394B 55394B 55398B 55453D 55454B 55606 55608 55642 73970A 8715 9004105529 9004119587 9004179052 9004183025 9004468165B1 9004468233 9004468373 9004468373 9010506032 9011906983 9155180618 9155180816 9356755014 9356855014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
55305-B4030

J210..5F

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-B4030

J210..5F

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-B4010

J200,210

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-B4011

J200,210

粘着加工無し

 1
55355-B4010

J200,210

粘着加工有り

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-B4010

J200,210

粘着加工有り

 1
55356-B4011

J200,210

粘着加工無し

 1
55394B - BOLT, INSTRUMENT PANEL
55394-B2010

J200,210

 4
55394B - BOLT, INSTRUMENT PANEL
55394-B2010

J200,210

 4
55398B - COVER, INSTRUMENT PANEL BRACE, INNER NO.3
55398-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1
55453-B4010

J200,210

 1
55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2
55454-B4010

J200,210

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55641-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
55646-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55642 - COVER, INSTRUMENT PANEL UNDER, NO.2
55642-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
Common parts
90041-05529
90041-19587
90041-79052
90041-83025
90044-68165B1
90044-68233
90044-68373
90105-06032
90119-06983
91551-80618
91551-80816
93567-55014
93568-55014
Linked diagrams
8715
