J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

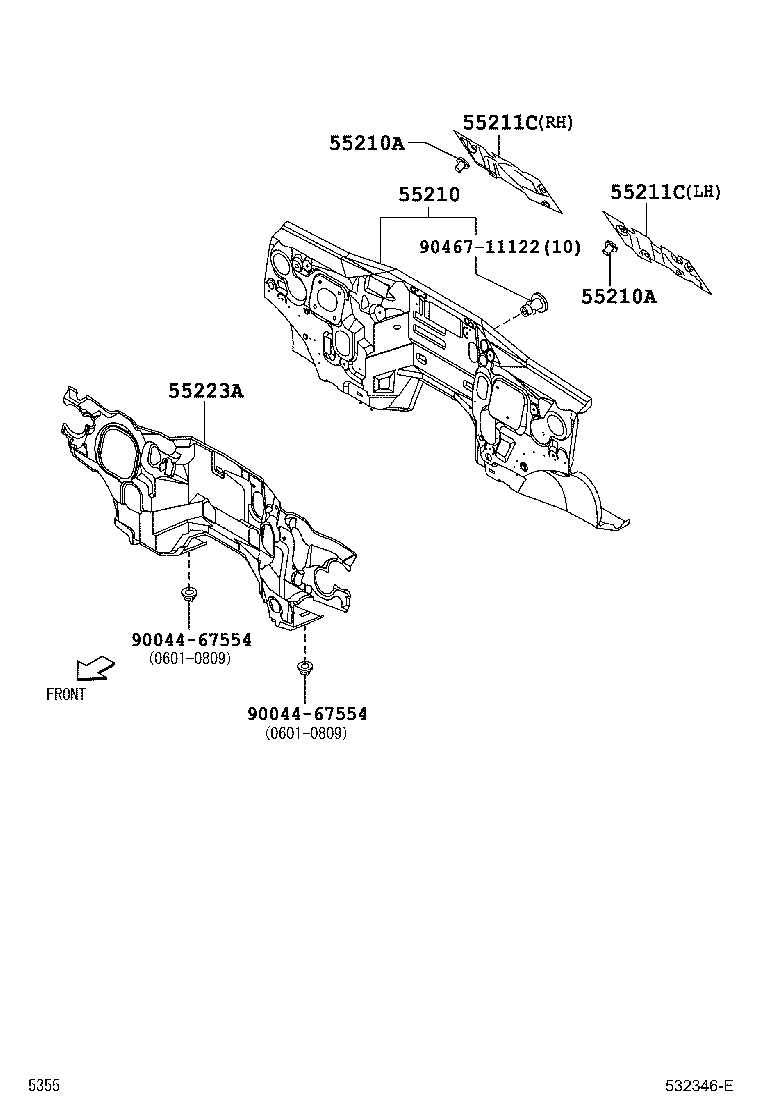

Click highlighted areas on diagram

diagram 55210 55210A 55210A 55211C 55211C 55223A 9004467554 9004467554 9046711122
Part # Description Qty Price
55210 - INSULATOR ASSY, DASH PANEL
55210-B4010

J200,210

 1
55210-B4011

J200,210

 1
55210A - CLIP
90044-68234B1

J200,210

DK.GRAY

 8
90044-68234B0

J200,210

GRAY

 8
55210A - CLIP
90044-68234B1

J200,210

DK.GRAY

 8
90044-68234B0

J200,210

GRAY

 8
55211C - COVER, DASH PANEL INSULATOR
62156-B4010

J200,210

右側

 1
62157-B4010

J200,210

左側

 1
55211C - COVER, DASH PANEL INSULATOR
62156-B4010

J200,210

右側

 1
62157-B4010

J200,210

左側

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-B4011

J200,210

 1
55223-B4010

J200,210

 1
Common parts
90044-67554
90467-11122

(0601-1605)

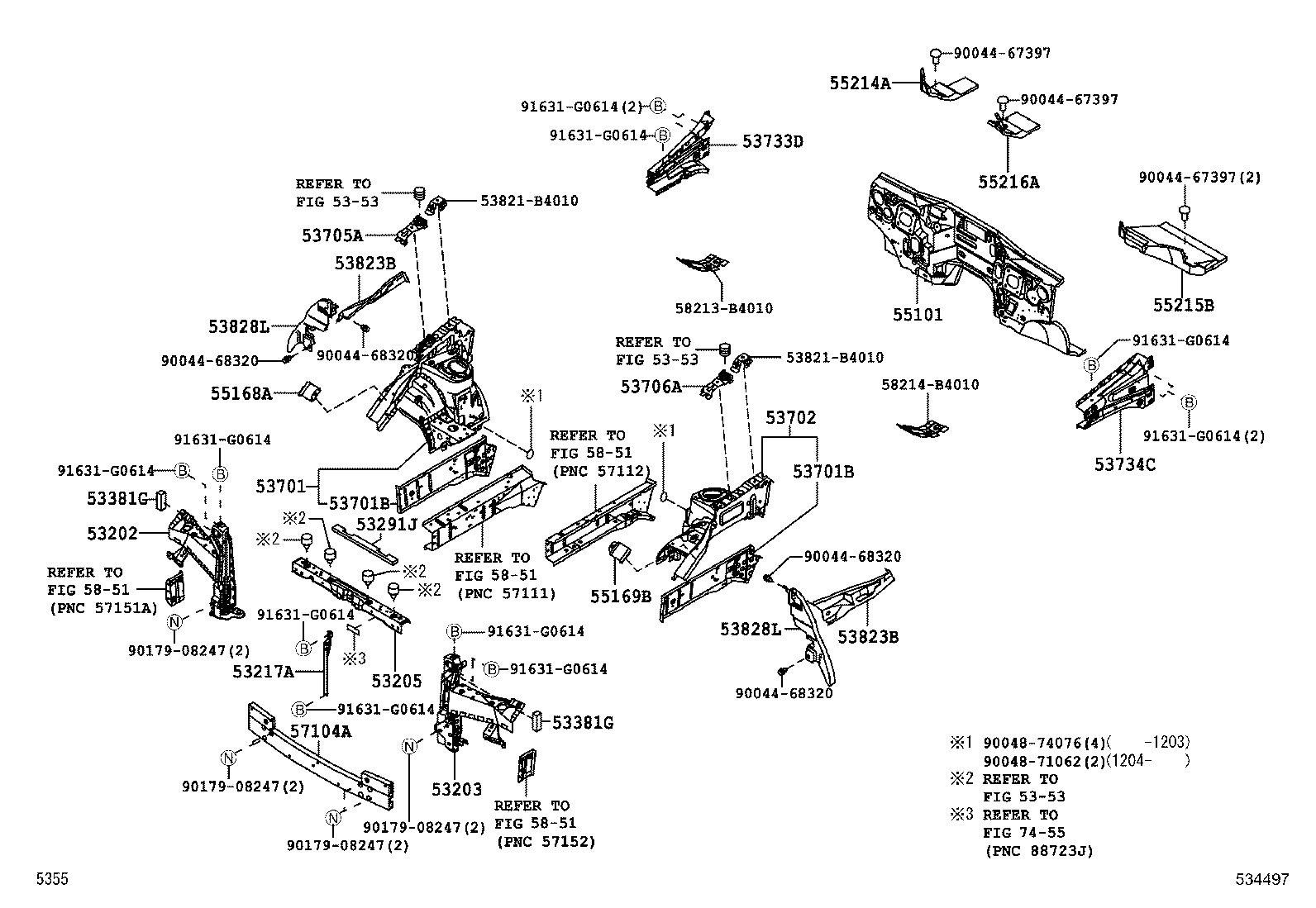

Click highlighted areas on diagram

diagram 53202 53203 53205 53217A 53291J 53381G 53381G 5353 5353 5353 53701 53701B 53701B 53702 53705A 53706A 53733D 53734C 53821B4010 53821B4010 53823B 53823B 53828L 53828L 55101 55168A 55169B 55214A 55215B 55216A 57104A 58213B4010 58214B4010 5851 5851 5851 5851 7455 9004467397 9004467397 9004467397 9004468320 9004468320 9004468320 9004468320 9004871062 9004874076 9017908247 9017908247 9017908247 9017908247 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614 91631G0614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-B4010

J200,210

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-B4010

J200,210

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-B4010

J200,210

 1
53205-B4011

J200,210

 1
53217A - BRACE, HOOD LOCK SUPPORT
53215-B4010

J200,210

 1
53215-B4010

J200,210

 1
53215-B4010

J200,210

 1
53291J - SEAL, RADIATOR SUPPORT
88578-B4080

J200,210

 1
88578-B4080

J200,210

 1
53291-B4010

J200,210

 1
53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1
88578-B4050

J200,210

 2
88578-B4050

J200,210

 2
53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1
88578-B4050

J200,210

 2
88578-B4050

J200,210

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-B4010

J200,210

 1
53701B - PLATE, FRONT FENDER APRON
57113-B4010

J200,210

右側

 1
57114-B4010

J200,210

左側

 1
53701B - PLATE, FRONT FENDER APRON
57113-B4010

J200,210

右側

 1
57114-B4010

J200,210

左側

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-B4010

J200,210

 1
53705A - BRACE SUB-ASSY, FENDER APRON, RH
53835-B4010

J200,210

 1
53706A - BRACE SUB-ASSY, FENDER APRON, LH
53836-B4010

J200,210

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-B4010

J200,210

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-B4010

J200,210

 1
53823B - PROTECTOR, FRONT SIDE PANEL, NO.2
53824-B4010

J200,210

左側

 1
53823-B4010

J200,210

右側

 1
53823B - PROTECTOR, FRONT SIDE PANEL, NO.2
53824-B4010

J200,210

左側

 1
53823-B4010

J200,210

右側

 1
53828L - PROTECTOR, FRONT FENDER SIDE PANEL
53828-B4010

J200,210

左側

 1
53827-B4010

J200,210

右側

 1
53828L - PROTECTOR, FRONT FENDER SIDE PANEL
53828-B4010

J200,210

左側

 1
53827-B4010

J200,210

右側

 1
55101 - PANEL SUB-ASSY, DASH
55101-B4020

J210..5F

 1
55168A - BRACKET, FRONT FENDER MOUNTING, RH
55168-B4010

J200,210

 1
55169B - BRACKET, FRONT FENDER MOUNTING, LH
55168-B4010

J200,210

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-B4010

J200,210

 1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-B4010

J200,210

 1
55216A - PAD, DASH PANEL INSULATOR, NO.4
55216-B4020

J210..5F

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
52021-B4010

J200,210

 1
52021-B4030

J200,210

 1
Common parts
53821-B4010
58213-B4010
58214-B4010
90044-67397
90044-68320
90048-71062
90048-74076
90179-08247
91631-G0614
Linked diagrams
5353
5851
7455
