J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

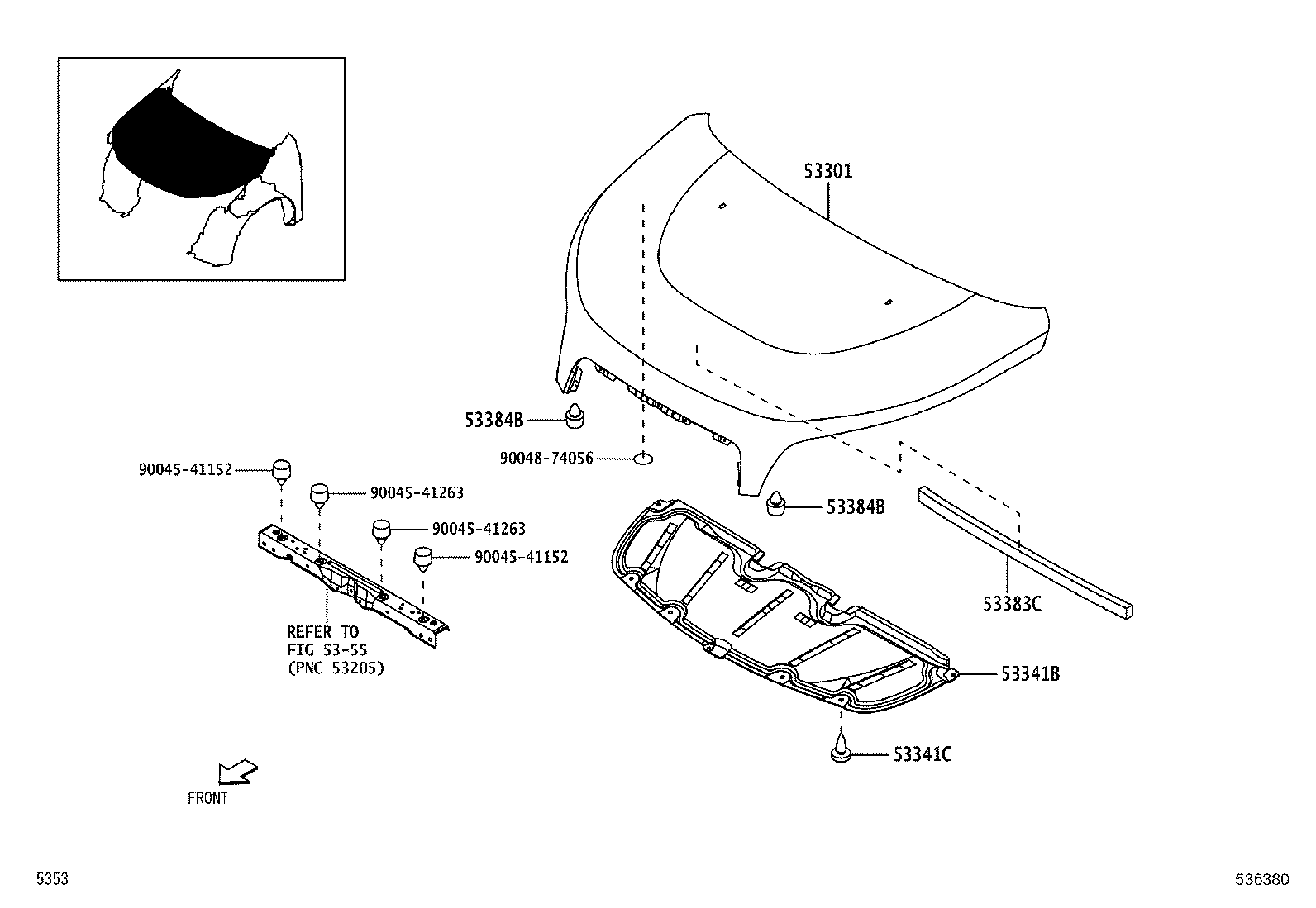

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53383C 53384B 53384B 5355 9004541152 9004541152 9004541263 9004541263 9004874056
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-B4010

J200,210

 1
53301-B4020

J200,210

 1
53341B - INSULATOR, HOOD
53341-B4010

J200,210

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

J200,210

 7
53383C - SEAL, HOOD TO COWL TOP
88578-B4040

J200,210

 1
88578-B4040

J200,210

 1
53384B - CUSHION, HOOD, CENTER
53384-B1010

J200,210

 2
53384B - CUSHION, HOOD, CENTER
53384-B1010

J200,210

 2
Common parts
90045-41152
90045-41263
90048-74056
Linked diagrams
5355

(0601-1605)

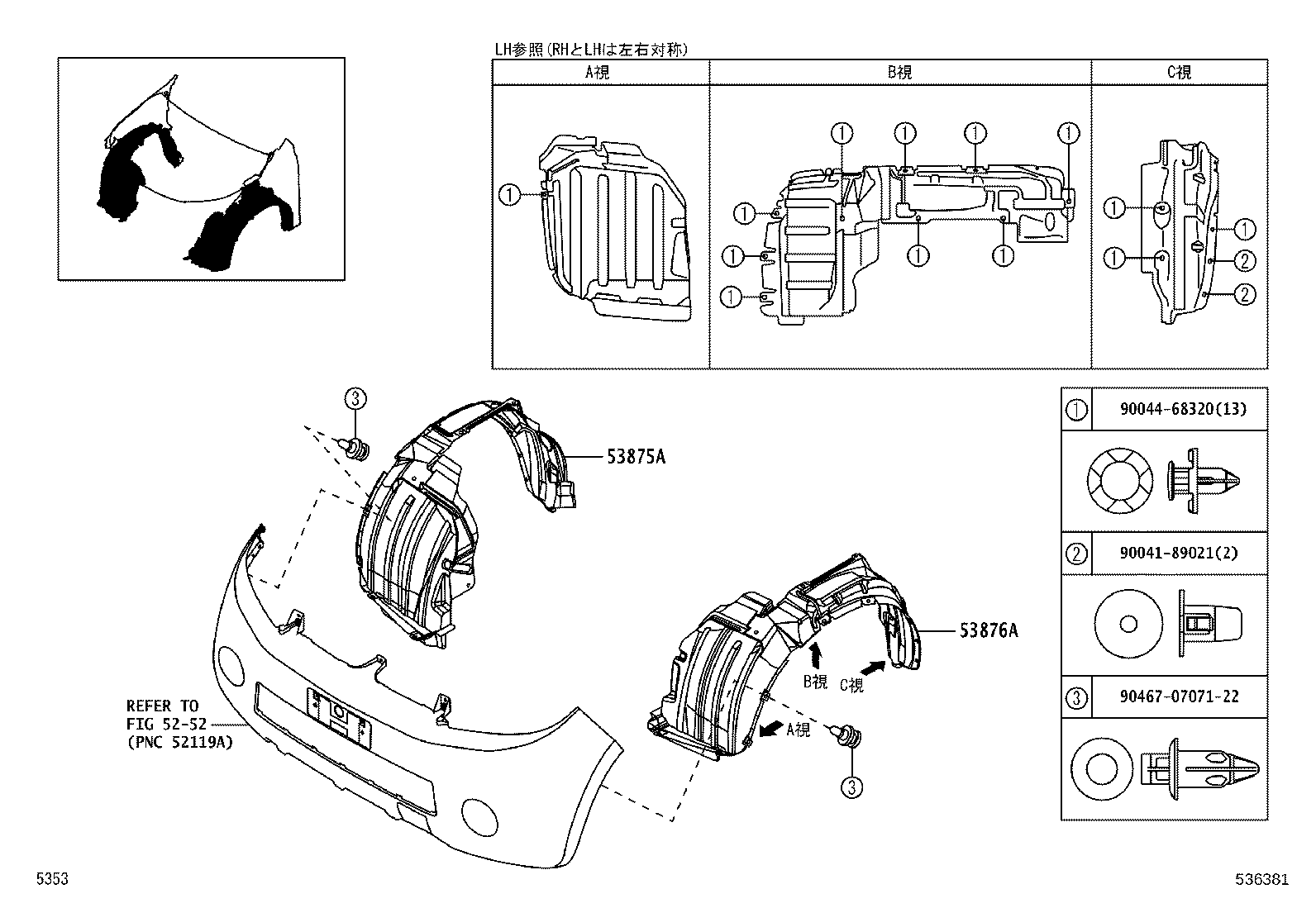

Click highlighted areas on diagram

diagram 5252 53875A 53876A 9004189021 9004468320 904670707122
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-B4010

J200,210

 1
53876A - LINER, FRONT FENDER, LH
53876-B4010

J200,210

 1
Common parts
90041-89021
90044-68320
90467-0707122
Linked diagrams
5252

(0601-1605)

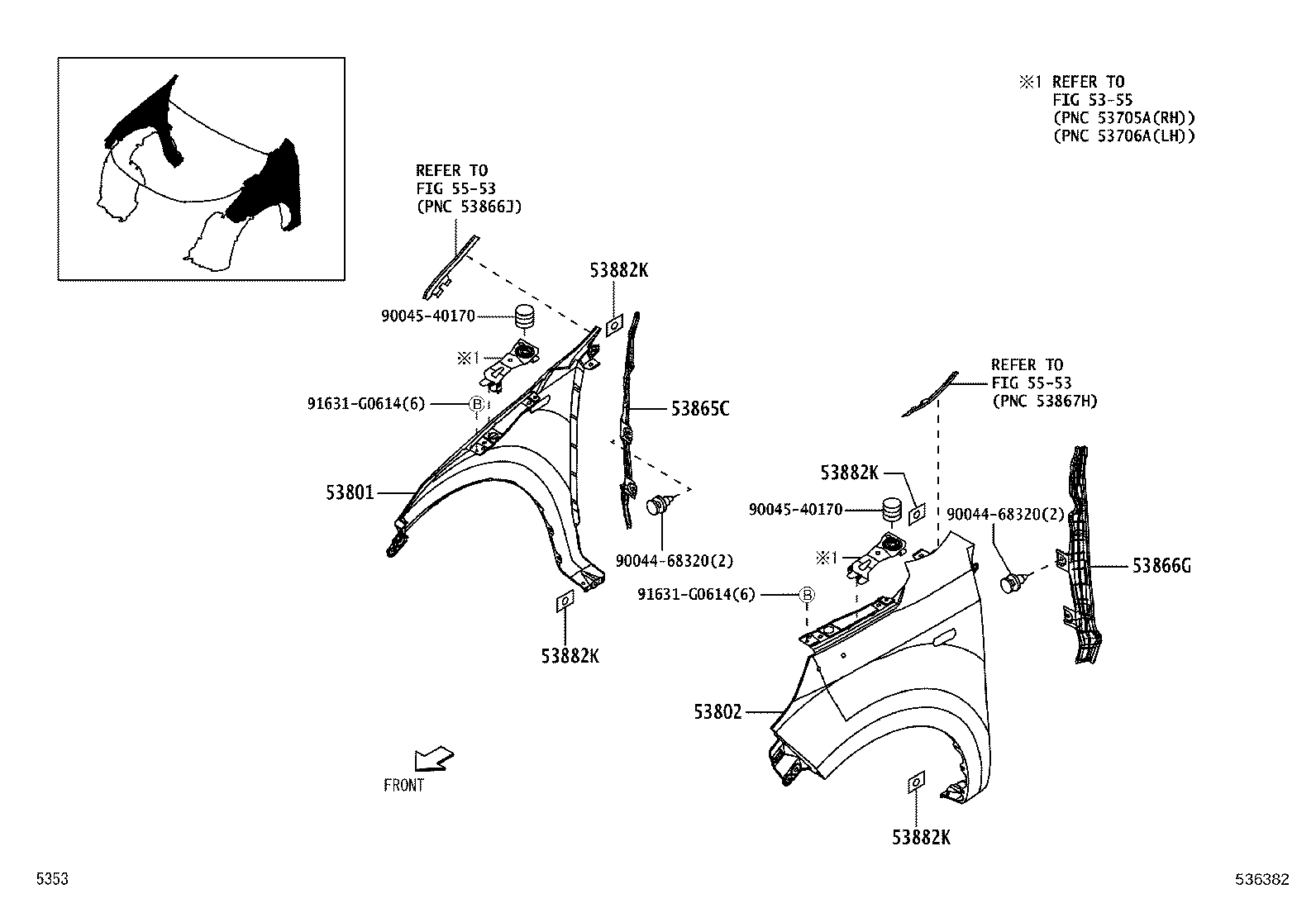

Click highlighted areas on diagram

diagram 5355 53801 53802 53865C 53866G 53882K 53882K 53882K 53882K 5553 5553 9004468320 9004468320 9004540170 9004540170 91631G0614 91631G0614
Part # Description Qty Price
53801 - FENDER SUB-ASSY, FRONT RH
53811-B4040

J200,210

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-B4040

J200,210

 1
53865C - PLATE, FRONT FENDER EXTENSION, RH
53865-B4011

J200,210

 1
53865-B4012

J200,210

 1
53865-B4010

J200,210

 1
53866G - PLATE, FRONT FENDER EXTENSION, LH
53866-B4012

J200,210

 1
53866-B4010

J200,210

 1
53866-B4011

J200,210

 1
53882K - SEAL, FRONT FENDER
53882-87701

J200,210

 4
53882K - SEAL, FRONT FENDER
53882-87701

J200,210

 4
53882K - SEAL, FRONT FENDER
53882-87701

J200,210

 4
53882K - SEAL, FRONT FENDER
53882-87701

J200,210

 4
Common parts
90044-68320
90045-40170
91631-G0614
Linked diagrams
5355
5553
