Toyota Rush J210E FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
JP
RUSH
J210E-GMGF (2006)
4803 - FRONT SPRING & SHOCK ABSORBER

J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008

Engine 3SZVE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0601-1605)

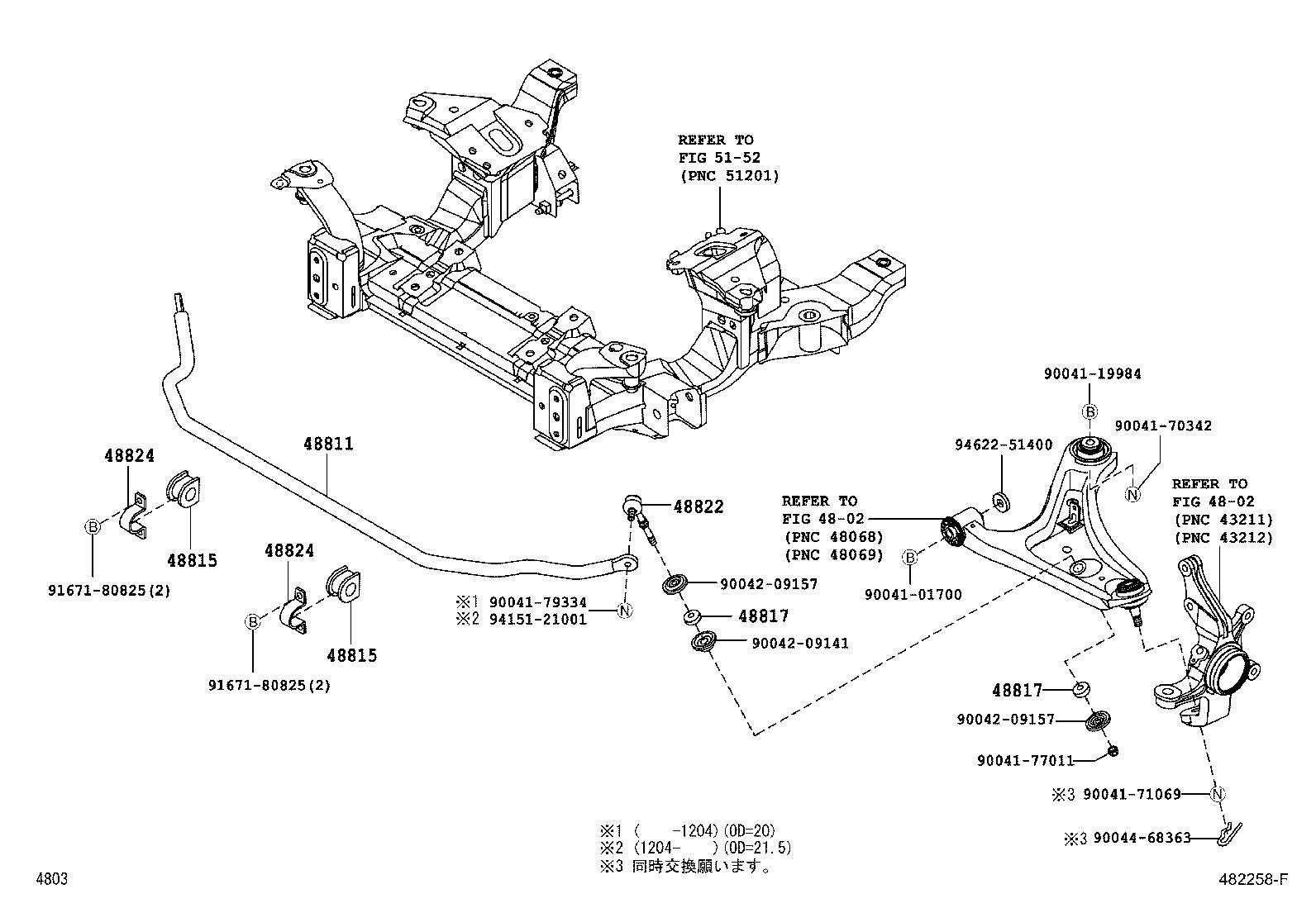

Click highlighted areas on diagram

Part #	Description	Period	Qty
48811 - BAR, STABILIZER, FRONT
48811-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48811-B4010	J200,210	01/2006 - 11/2008	1
48811-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48811-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 08/2008	2
48815-B4031	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	09/2008 - 11/2008	2
48815-B4031	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	09/2008 - 11/2008	2
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	2
48815-B4010	J200,210	01/2006 - 08/2008	2
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 08/2008	2
48815-B4011	J200,210	09/2008 - 11/2008	2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 08/2008	2
48815-B4031	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	09/2008 - 11/2008	2
48815-B4031	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	09/2008 - 11/2008	2
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	2
48815-B4010	J200,210	01/2006 - 08/2008	2
48815-B4030	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 08/2008	2
48815-B4011	J200,210	09/2008 - 11/2008	2
48817 - CUSHION, FRONT STABILIZER
90043-85179	J200,210	01/2006 - 08/2008	4
90043-85189	J200,210	09/2008 - 11/2008	4
48817 - CUSHION, FRONT STABILIZER
90043-85179	J200,210	01/2006 - 08/2008	4
90043-85189	J200,210	09/2008 - 11/2008	4
48822 - ROD, STABILIZER LINK
48822-97503	J200,210	01/2006 - 11/2008	2
48824 - BRACKET, STABILIZER, FRONT
48824-B4010	J200,210	01/2006 - 11/2008	2
48824 - BRACKET, STABILIZER, FRONT
48824-B4010	J200,210	01/2006 - 11/2008	2
Common parts
90041-01700
90041-19984
90041-70342
90041-71069
90041-77011
90041-79334
90042-09141
90042-09157
90044-68363
91671-80825
94151-21001
94622-51400
Linked diagrams
4802
5152

(0601-1605)

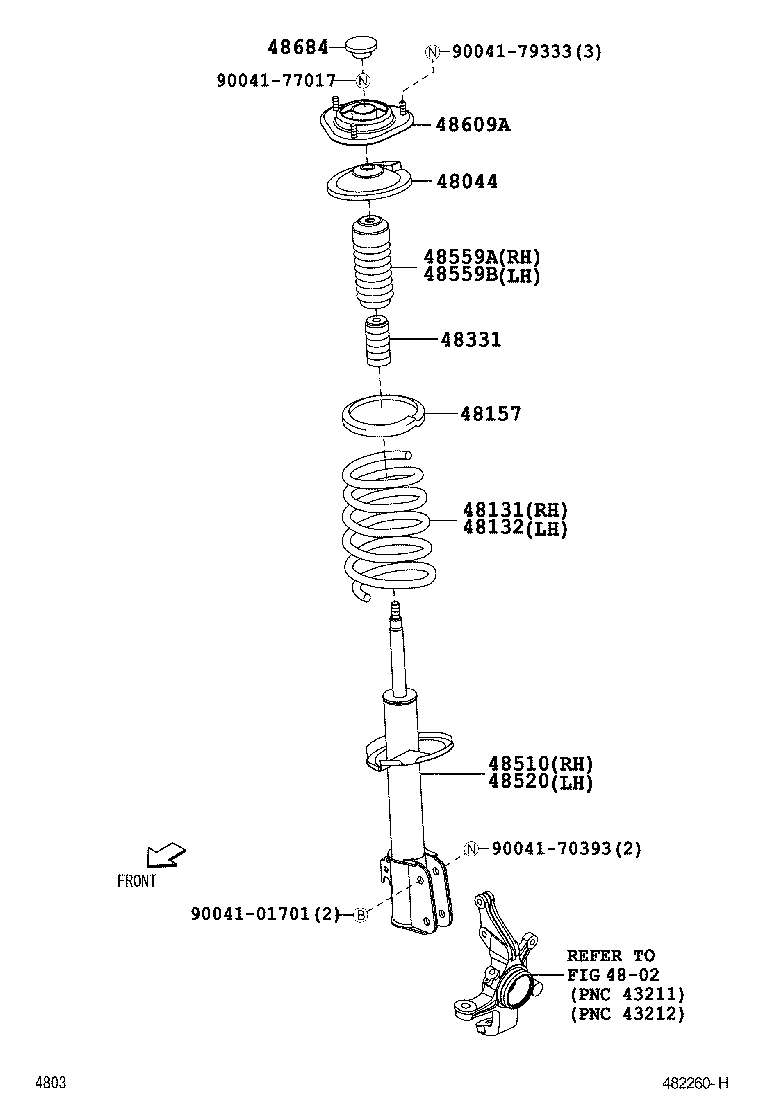

Click highlighted areas on diagram

Part #	Description	Period	Qty
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-B4010	J200,210	01/2006 - 11/2008	2
48131 - SPRING, FRONT COIL, RH
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48131-B4010	J210	01/2006 - 11/2008	1
48131-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48131-B4050	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48132 - SPRING, FRONT COIL, LH
48131-B4010	J210	01/2006 - 11/2008	1
48131-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48131-B4050	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-B4010	J200,210	01/2006 - 11/2008	2
48331 - BUMPER, FRONT SPRING, NO.1
48331-B4010	J200,210	01/2006 - 11/2008	2
48331-B4020	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48510-B4010	J210	01/2006 - 11/2008	1
48510-B4060	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-B4010	J210	01/2006 - 11/2008	1
48510-B4060	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48510-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-87403	J200,210 ﾍﾞｱﾘﾝｸﾞﾂｷ	01/2006 - 11/2008	2
48684 - COVER, BEARING DUST
48684-87701	J200,210	01/2006 - 11/2008	2
Common parts
90041-01701
90041-70393
90041-77017
90041-79333
Linked diagrams
4802

(0601-0811)J210

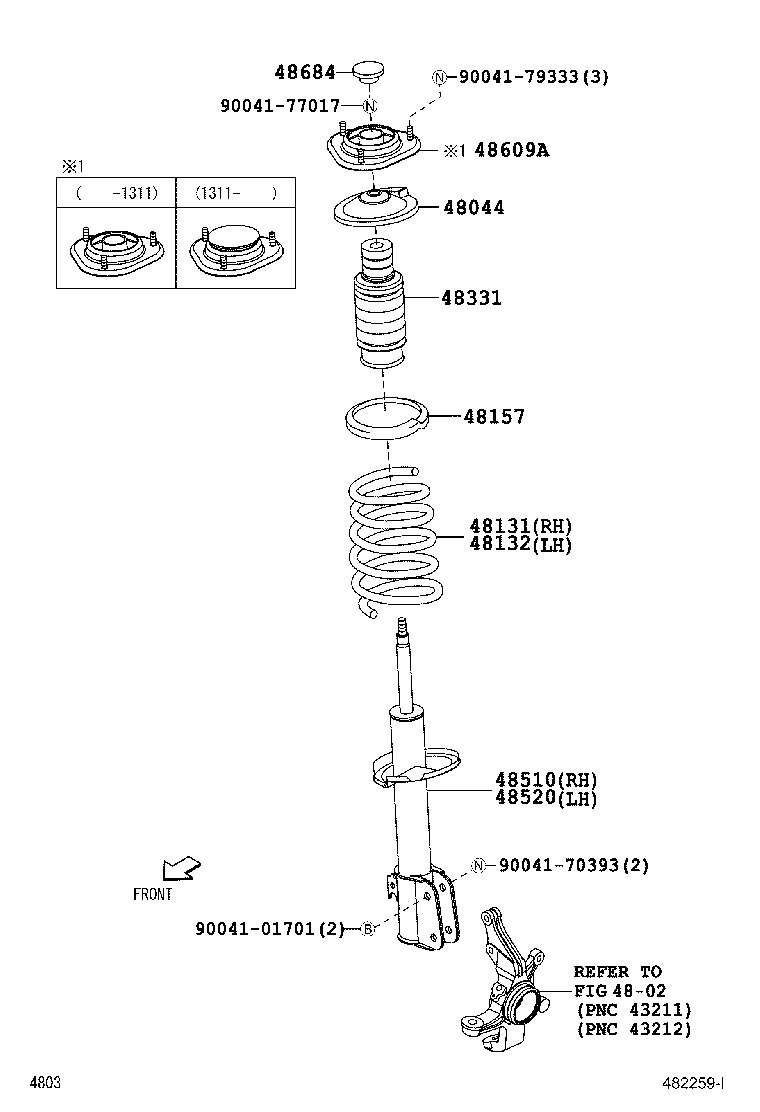

Click highlighted areas on diagram

Part #	Description	Period	Qty
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-B4010	J200,210	01/2006 - 11/2008	2
48131 - SPRING, FRONT COIL, RH
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48131-B4010	J210	01/2006 - 11/2008	1
48131-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48131-B4050	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48132 - SPRING, FRONT COIL, LH
48131-B4010	J210	01/2006 - 11/2008	1
48131-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48131-B4050	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48131-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-B4010	J200,210	01/2006 - 11/2008	2
48331 - BUMPER, FRONT SPRING, NO.1
48331-B4010	J200,210	01/2006 - 11/2008	2
48331-B4020	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48510-B4010	J210	01/2006 - 11/2008	1
48510-B4060	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-B4010	J210	01/2006 - 11/2008	1
48510-B4060	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	03/2006 - 11/2008	1
48510-B4030	J210 ﾍｯﾄﾞﾗﾝﾌﾟ−RHD HID	01/2006 - 11/2008	1
48510-B4070	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW	01/2006 - 03/2006	1
48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559-B4010	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48559-B4010	J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD	01/2006 - 11/2008	1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-87403	J200,210 ﾍﾞｱﾘﾝｸﾞﾂｷ	01/2006 - 11/2008	2
48684 - COVER, BEARING DUST
48684-87701	J200,210	01/2006 - 11/2008	2
Common parts
90041-01701
90041-70393
90041-77017
90041-79333
Linked diagrams
4802
