J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

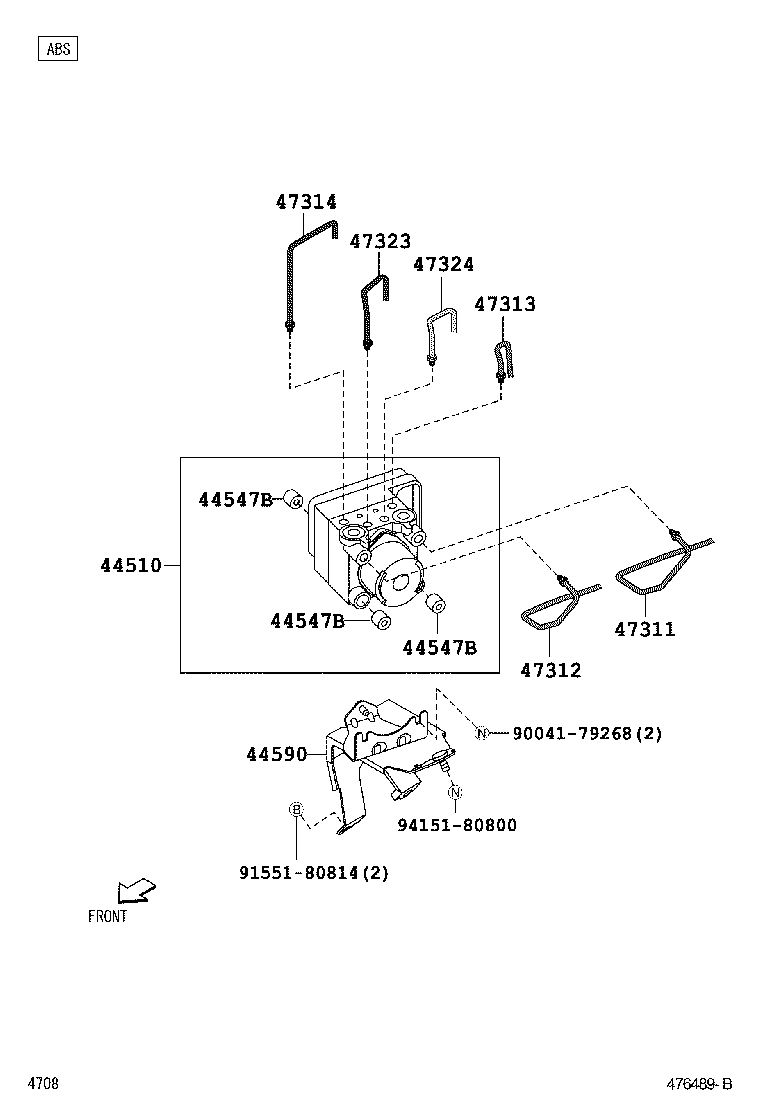

Click highlighted areas on diagram

ABS

diagram 44510 44547B 44547B 44547B 44590 47311 47312 47313 47314 47323 47324 9004179268 9155180814 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-B4030

J210..5F

VSC

 1
44050-B4031

J210..5F

VSC

 1
44050-B4020

J210

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-B4010

J200,210

 1
44590-B4020

J210..5F

VSC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
Common parts
90041-79268
91551-80814
94151-80800

(0601-1605)

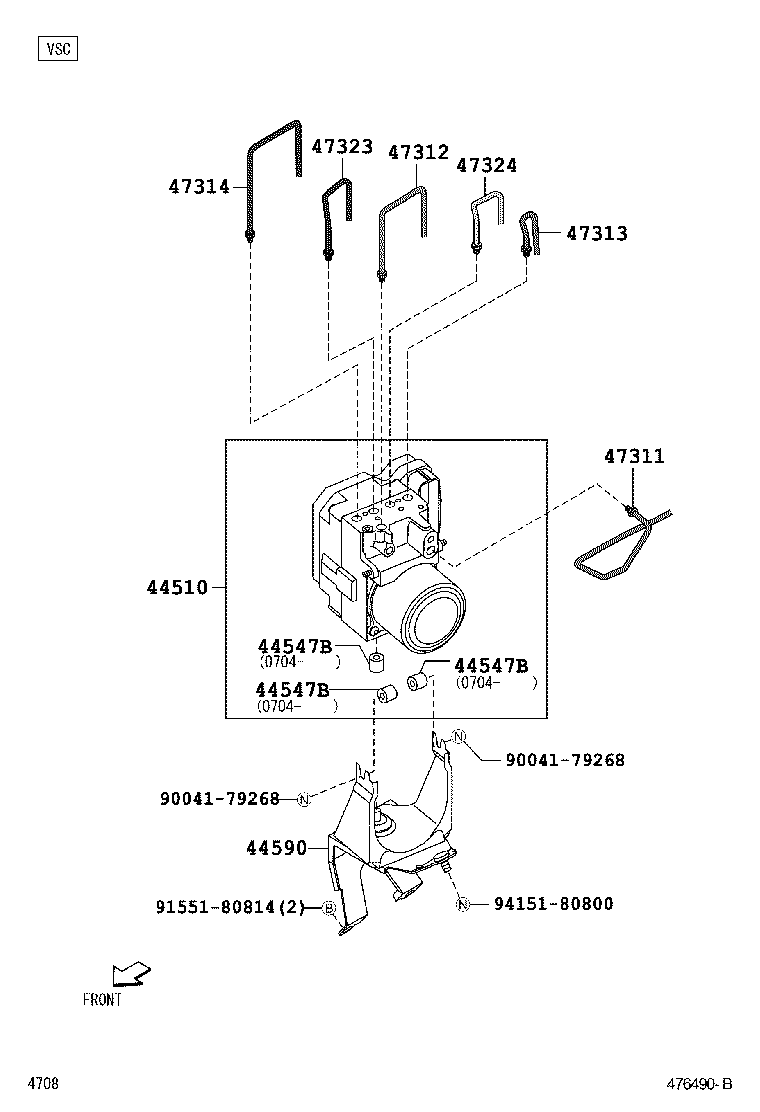

Click highlighted areas on diagram

VSC

diagram 44510 44547B 44547B 44547B 44590 47311 47312 47313 47314 47323 47324 9004179268 9004179268 9155180814 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-B4030

J210..5F

VSC

 1
44050-B4031

J210..5F

VSC

 1
44050-B4020

J210

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B4020

J210..5F

VSC

 3
44547-B4010

J200,210

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-B4010

J200,210

 1
44590-B4020

J210..5F

VSC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
Common parts
90041-79268
91551-80814
94151-80800

(0601-1605)

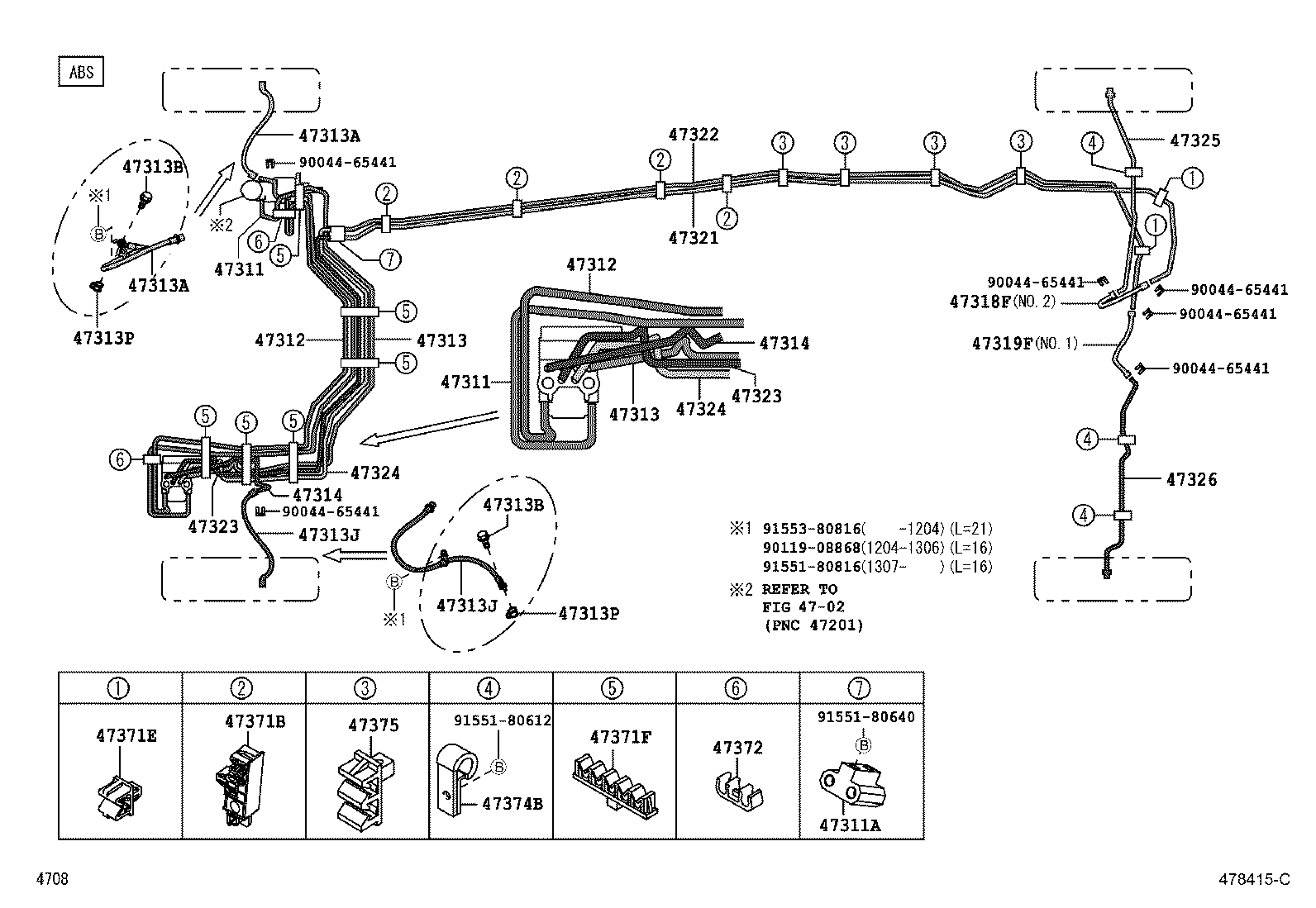

Click highlighted areas on diagram

ABS

diagram 4702 47311 47311 47311A 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313J 47313J 47313P 47313P 47314 47314 47318F 47319F 47321 47322 47323 47323 47324 47324 47325 47326 47371B 47371E 47371F 47372 47374B 47375 9004465441 9004465441 9004465441 9004465441 9004465441 9004465441 9011908868 9155180612 9155180640 9155180816 9155380816
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
44589-B2010

J200,210

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22205

J200,210

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22205

J200,210

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

J200,210

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

J200,210

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22206

J200,210

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22206

J200,210

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

J200,210

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

J200,210

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22281

J200,210

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22207

J200,210

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-B4010

J200,210

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B4010

J200,210

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-B4010

J200,210

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-B4010

J200,210

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64716

J200,210

 4
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64299

J200,210

 3
47371F - CLAMP, BRAKE TUBE, NO.10
90044-64699

J200,210

 6
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64731

J200,210

 2
47374B - CLAMP, BRAKE TUBE, NO.4
96221-30705

J200,210

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64713

J200,210

 4
Common parts
90044-65441
90119-08868
91551-80612
91551-80640
91551-80816
91553-80816
Linked diagrams
4702

(0601-1605)

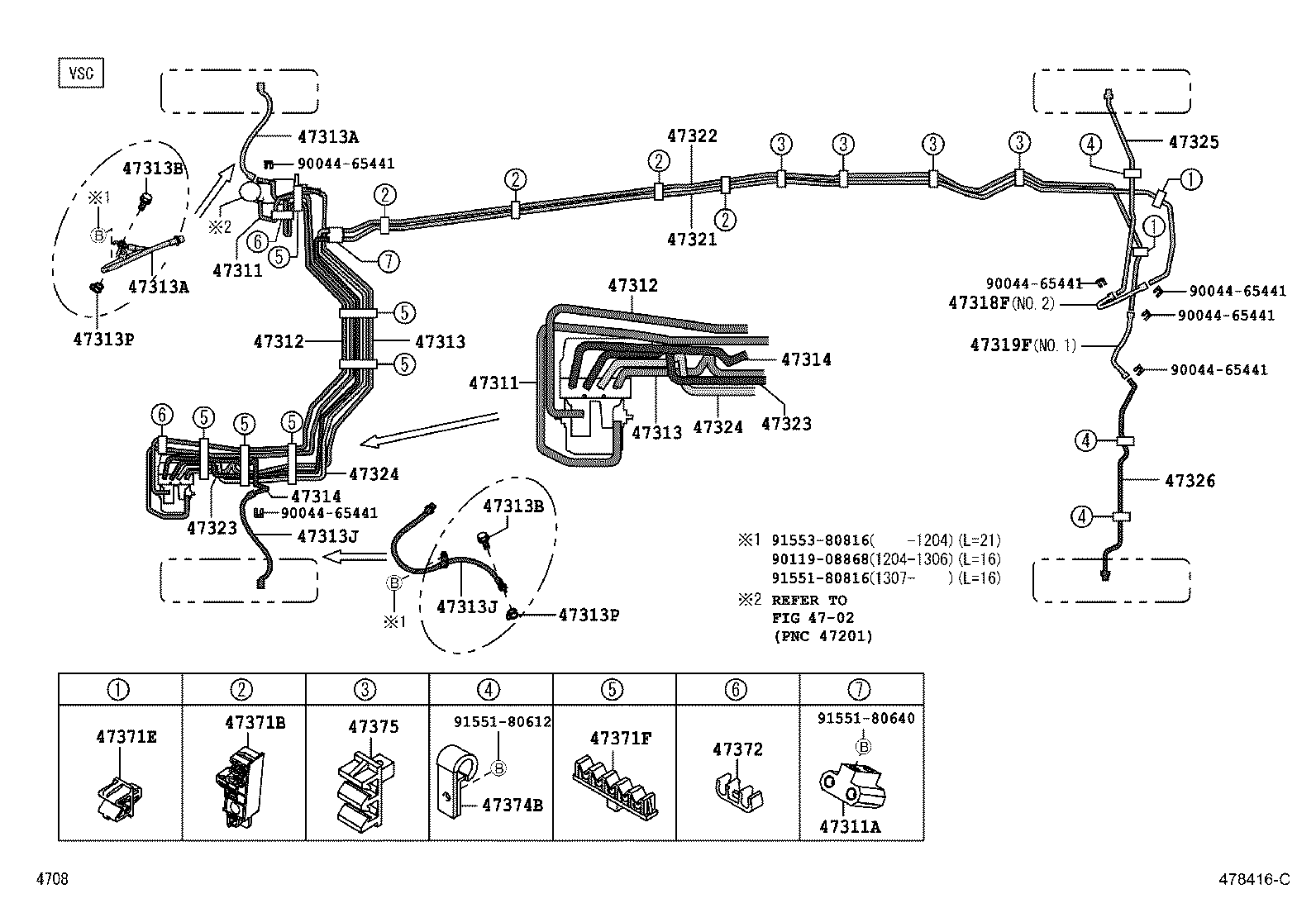

Click highlighted areas on diagram

VSC

diagram 4702 47311 47311 47311A 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313J 47313J 47313P 47313P 47314 47314 47318F 47319F 47321 47322 47323 47323 47324 47324 47325 47326 47371B 47371E 47371F 47372 47374B 47375 9004465441 9004465441 9004465441 9004465441 9004465441 9004465441 9011908868 9155180612 9155180640 9155180816 9155380816
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B4030

J210..5F

VSC

 1
47311-B4020

J200,210

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
44589-B2010

J200,210

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B4030

J210..5F

VSC

 1
47312-B4020

J200,210

VSC

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B4030

J210..5F

VSC

 1
47313-B4020

J200,210

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22205

J200,210

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22205

J200,210

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

J200,210

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

J200,210

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22206

J200,210

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22206

J200,210

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

J200,210

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

J200,210

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B4030

J210..5F

VSC

 1
47314-B4020

J200,210

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22281

J200,210

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22207

J200,210

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-B4010

J200,210

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B4010

J200,210

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-B4020

J200,210

 1
47323-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B4020

J200,210

 1
47324-B4030

J210..5F

VSC

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-B4010

J200,210

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-B4010

J200,210

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64716

J200,210

 4
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64299

J200,210

 3
47371F - CLAMP, BRAKE TUBE, NO.10
90044-64699

J200,210

 6
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64731

J200,210

 2
47374B - CLAMP, BRAKE TUBE, NO.4
96221-30705

J200,210

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64713

J200,210

 4
Common parts
90044-65441
90119-08868
91551-80612
91551-80640
91551-80816
91553-80816
Linked diagrams
4702
