J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

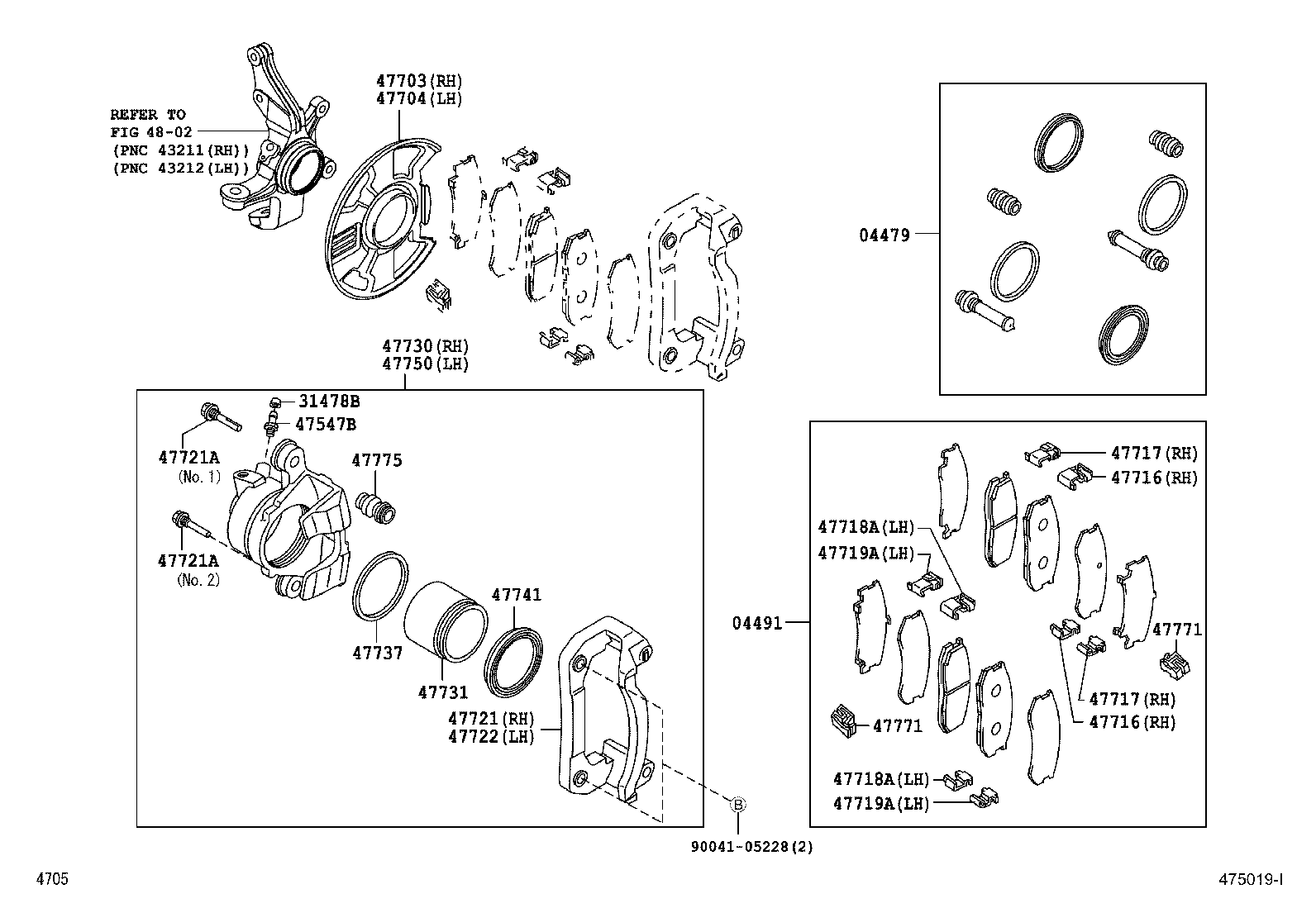

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47716 47716 47717 47717 47718A 47718A 47719A 47719A 47721 47721A 47721A 47722 47730 47731 47737 47741 47750 47771 47771 47775 4802 9004105228
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B4020

J200,210

 1
04478-B4050

J210..5F

VSC

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04465-B4030

J200,210

 1
04465-B4030

J200,210

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-87501

J200,210

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87505

J200,210

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-87401

J200,210

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47781-87401

J200,210

 1
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47736-87401

J200,210

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47736-87401

J200,210

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47738-87401

J200,210

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47738-87401

J200,210

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47736-87401

J200,210

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47736-87401

J200,210

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47738-87401

J200,210

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47738-87401

J200,210

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-87401

J200,210

 1
47721-B4010

J210..5F

VSC

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47715-87503

J200,210

NO.1

 2
47715-B4020

J200,210

NO.1

 2
47715-B4010

J200,210

NO.2

 2
47715-87504

J200,210

NO.2

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47715-87503

J200,210

NO.1

 2
47715-B4020

J200,210

NO.1

 2
47715-B4010

J200,210

NO.2

 2
47715-87504

J200,210

NO.2

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-B4010

J210..5F

VSC

 1
47722-87401

J200,210

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-B4010

J210..5F

VSC

 1
47730-87401

J200,210

 1
47731 - PISTON, FRONT DISC BRAKE
47731-87401

J200,210

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-87401

J200,210

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-87401

J200,210

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-87401

J200,210

 1
47750-B4010

J210..5F

VSC

 1
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-87401

J200,210

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-87401

J200,210

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-87401

J200,210

 2
Common parts
90041-05228
Linked diagrams
4802
