J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)

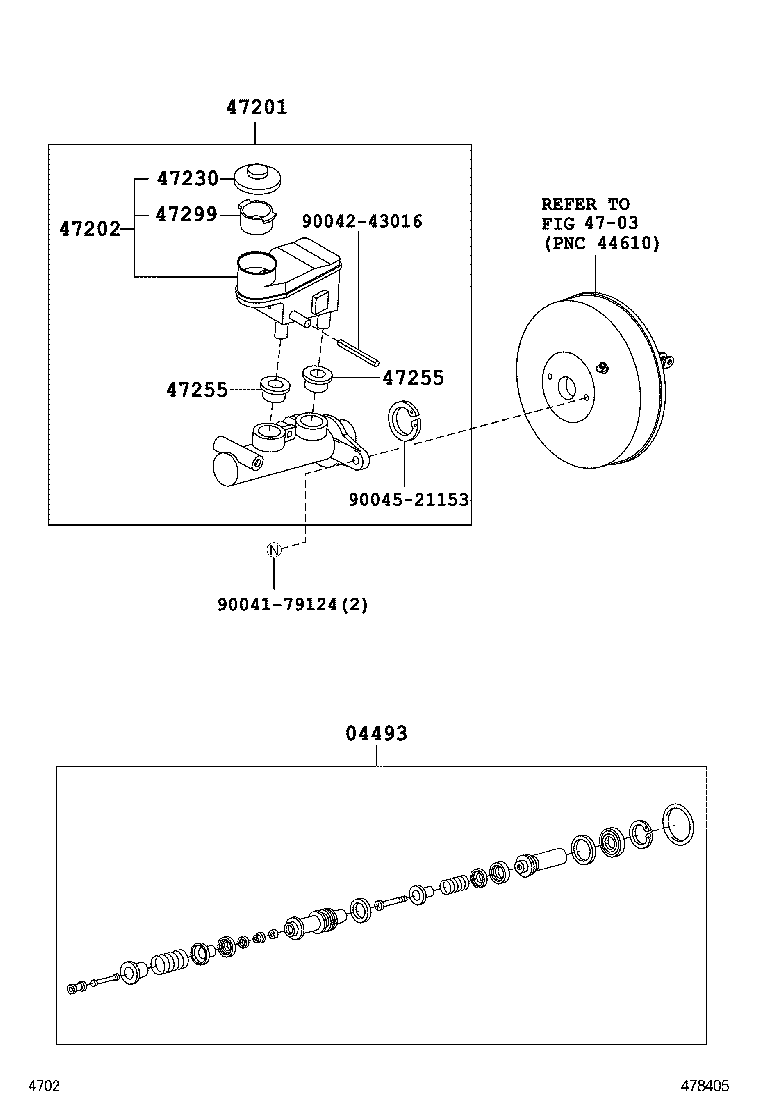

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-B4030 |
J200,210 |
1 | ||
| 04493-B4040 |
J210..5F VSC |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-B4020 |
J210..5F |
1 | ||
| 47201-B4060 |
J210..5F VSC |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-B4020 |
J210..5F |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-B4010 |
J200,210 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87502 |
J200,210 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87502 |
J200,210 |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 90041-79124 | ||||
| 90042-43016 | ||||
| 90045-21153 | ||||
| Linked diagrams | ||||
| 4703 | ||||
