J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

Click highlighted areas on diagram

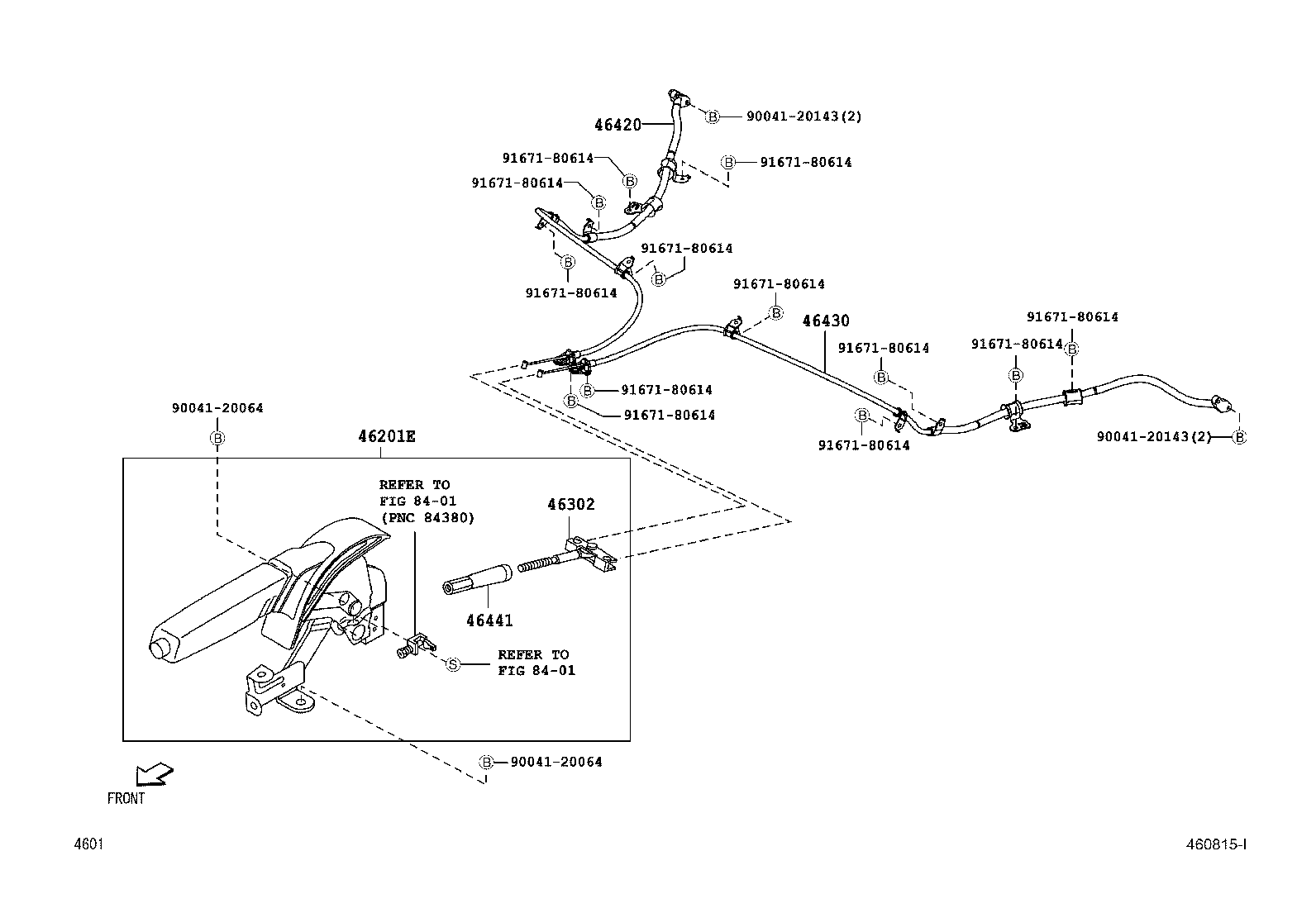

diagram 46201E 46302 46420 46430 46441 8401 8401 9004120064 9004120064 9004120143 9004120143 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-B4010B0

J210..5F

DK.GRAY,TRIM1#

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-87705

J210..5F

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B4010

J200,210

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B4010

J200,210

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87701

J210..5F

 1
Common parts
90041-20064
90041-20143
91671-80614
Linked diagrams
8401
