J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

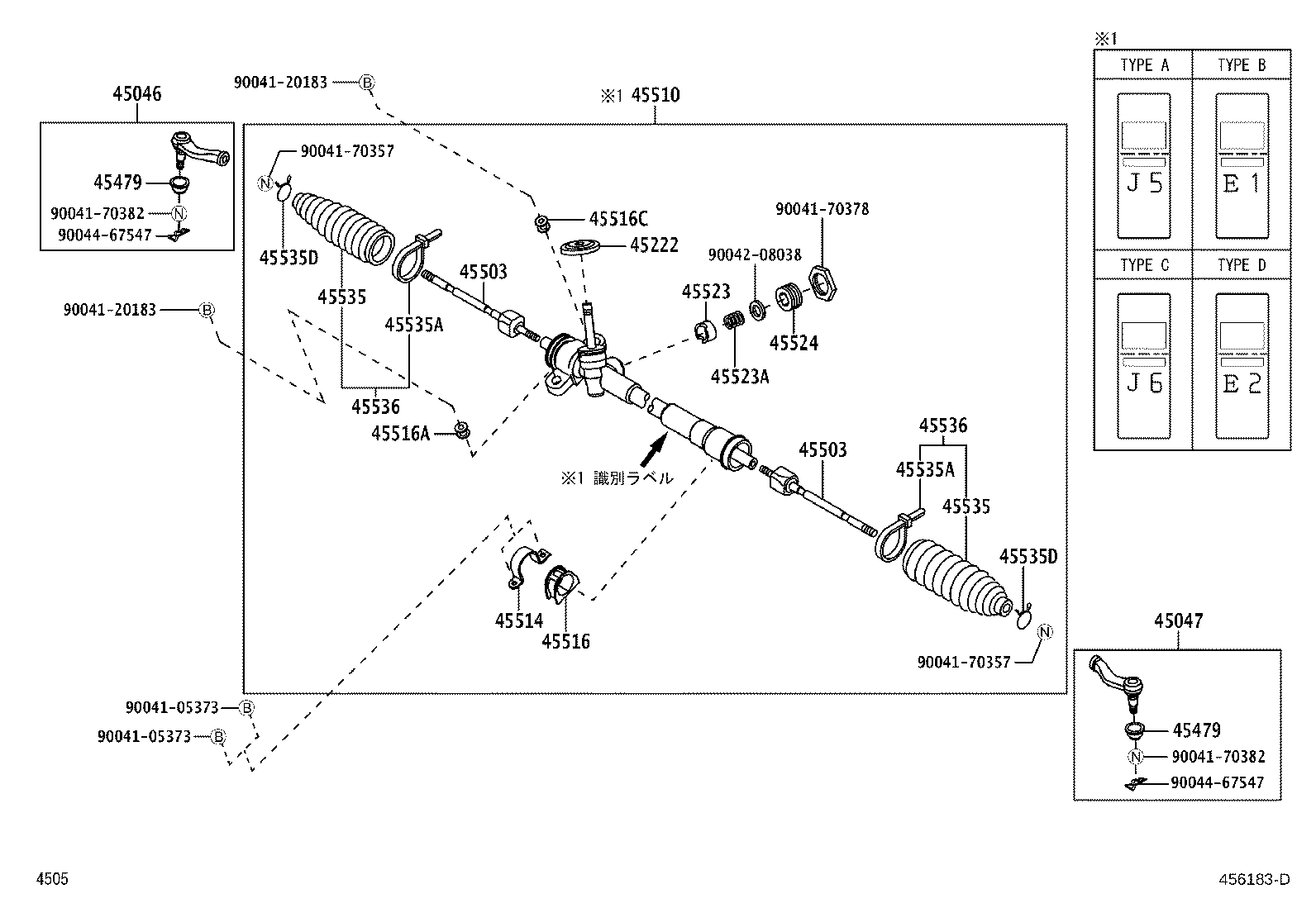

Click highlighted areas on diagram

diagram 45046 45047 45222 45479 45479 45503 45503 45510 45514 45516 45516A 45516C 45523 45523A 45524 45535 45535 45535A 45535A 45535D 45535D 45536 45536 9004105373 9004105373 9004120183 9004120183 9004170357 9004170357 9004170378 9004170382 9004170382 9004208038 9004467547 9004467547
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-B9320

J200,210

 1
45046-B9080

J200,210

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-B9270

J200,210

 1
45047-B9070

J200,210

 1
45222 - COVER, STEERING GEAR DUST
45222-87402

J200,210

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-87508

J200,210

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-87508

J200,210

 2
45503 - END SUB-ASSY, STEERING RACK
45503-87401

J200,210

 2
45503 - END SUB-ASSY, STEERING RACK
45503-87401

J200,210

 2
45510 - GEAR ASSY, STEERING
45510-B4021

J210

ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID

 1
45510-B4020

J210

ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID

 1
45510-B4010

J200,210

 1
45510-B4020

J210

ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW

 1
45510-B4011

J200,210

 1
45510-B4020

J210

ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-B4010

J200,210

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-B4010

J200,210

 1
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-B2030

J200,210

 1
45516C - BUSH, STEERING RACK HOUSING, NO.2
45516-B4020

J200,210

 1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-B4010

J200,210

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90045-01818

J200,210

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-B1010

J200,210

 1
45535 - BOOT, STEERING RACK, NO.1
45535-97501

J200,210

 2
45535 - BOOT, STEERING RACK, NO.1
45535-97501

J200,210

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-87205

J200,210

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-87205

J200,210

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45537-97201

J200,210

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45537-97201

J200,210

 2
45536 - BOOT, STEERING RACK, NO.2
45535-B9030

J200,210

 2
45536 - BOOT, STEERING RACK, NO.2
45535-B9030

J200,210

 2
Common parts
90041-05373
90041-20183
90041-70357
90041-70378
90041-70382
90042-08038
90044-67547
