J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

W/A/B

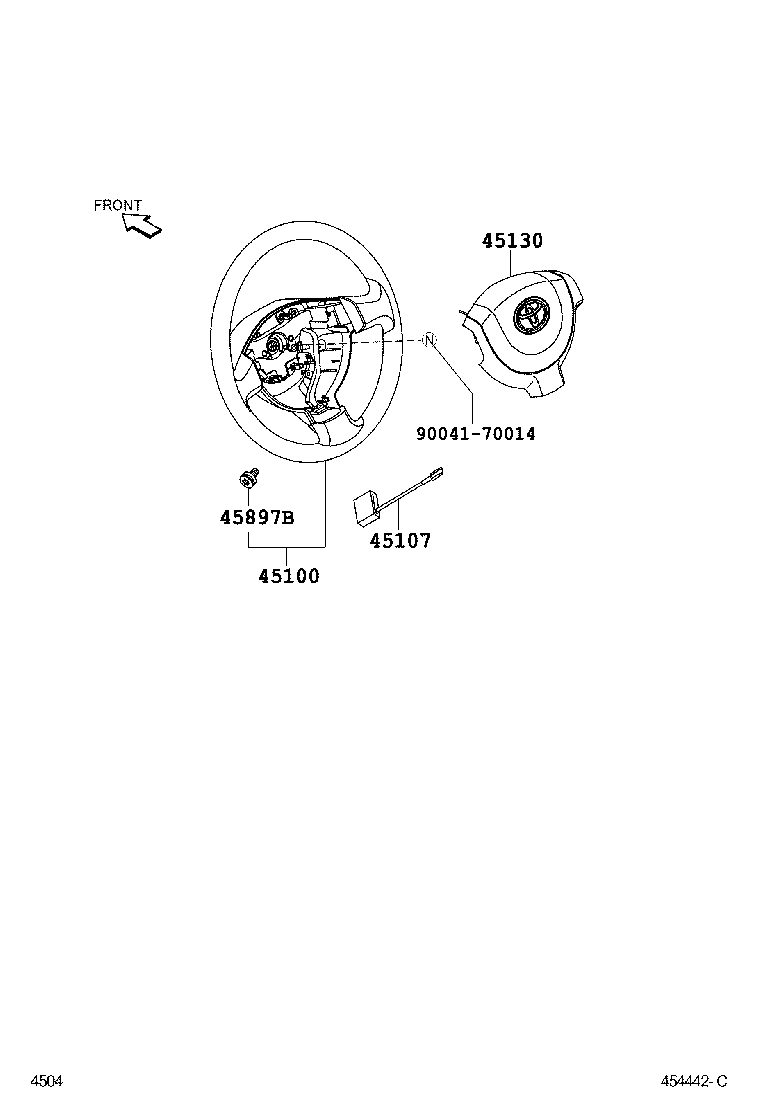

diagram 45100 45107 45130 45897B 9004170014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45102-B4020B0

J200,210..X

ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ−革巻き(A/B Tﾏｰｸ),DK.GRAY,TRIM1#

 1
45102-B4020B0

J200,210..G

DK.GRAY,TRIM1#

 1
45102-B4010B0

J200,210..X

DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2010

J200,210

 1
45130 - BUTTON ASSY, HORN
45130-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
45897B - BOLT, STEERING LOCK SET
45897-97202

J200,210

 2
Common parts
90041-70014
