J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

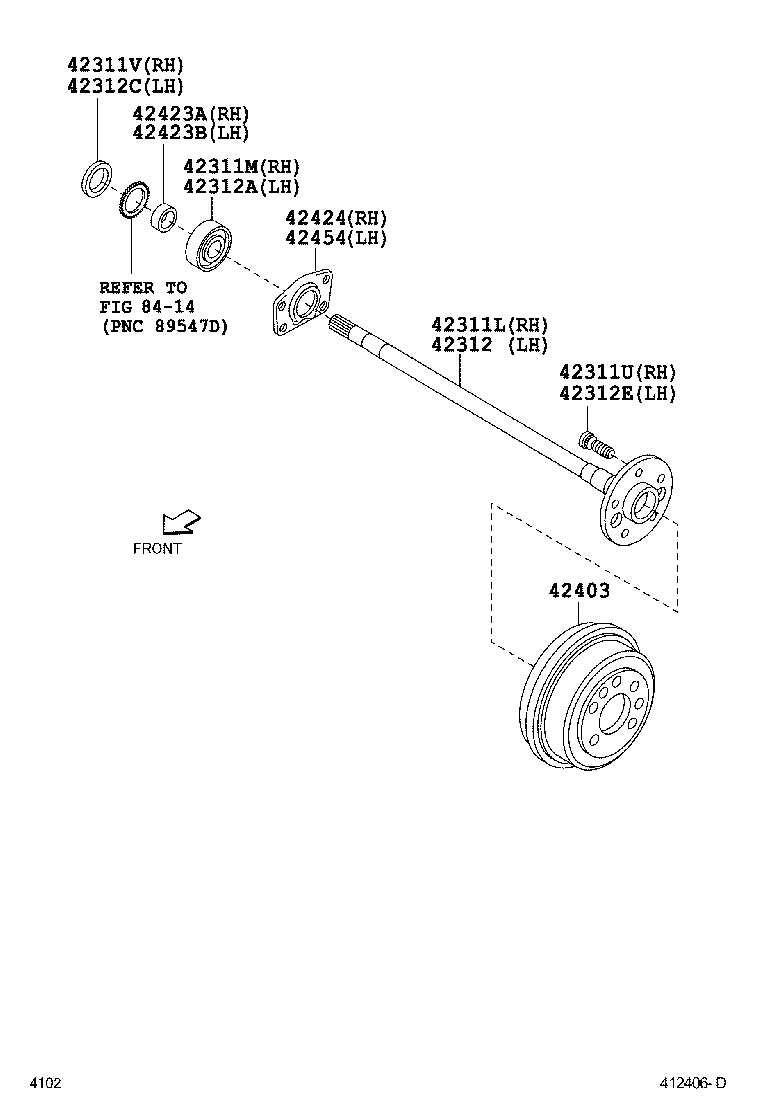

Click highlighted areas on diagram

diagram 42311L 42311M 42311U 42311V 42312 42312A 42312C 42312E 42403 42423A 42423B 42424 42454 8414
Part # Description Qty Price
42311L - SHAFT, REAR AXLE, RH
42311-B4010

J200,210

 1
42311-B4030

J210

#−LSD

 1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90043-63248

J200,210

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90049-12055

J200,210

 5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90043-11291

J200,210

 1
42312 - SHAFT, REAR AXLE, LH
42312-B4030

J210

#−LSD

 1
42312-B4010

J200,210

 1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90043-63248

J200,210

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90043-11291

J200,210

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90049-12055

J200,210

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-87401

J200,210

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-97502

J200,210

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-97502

J200,210

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-87401

J200,210

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-87401

J200,210

 1
Linked diagrams
8414
