J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)J210

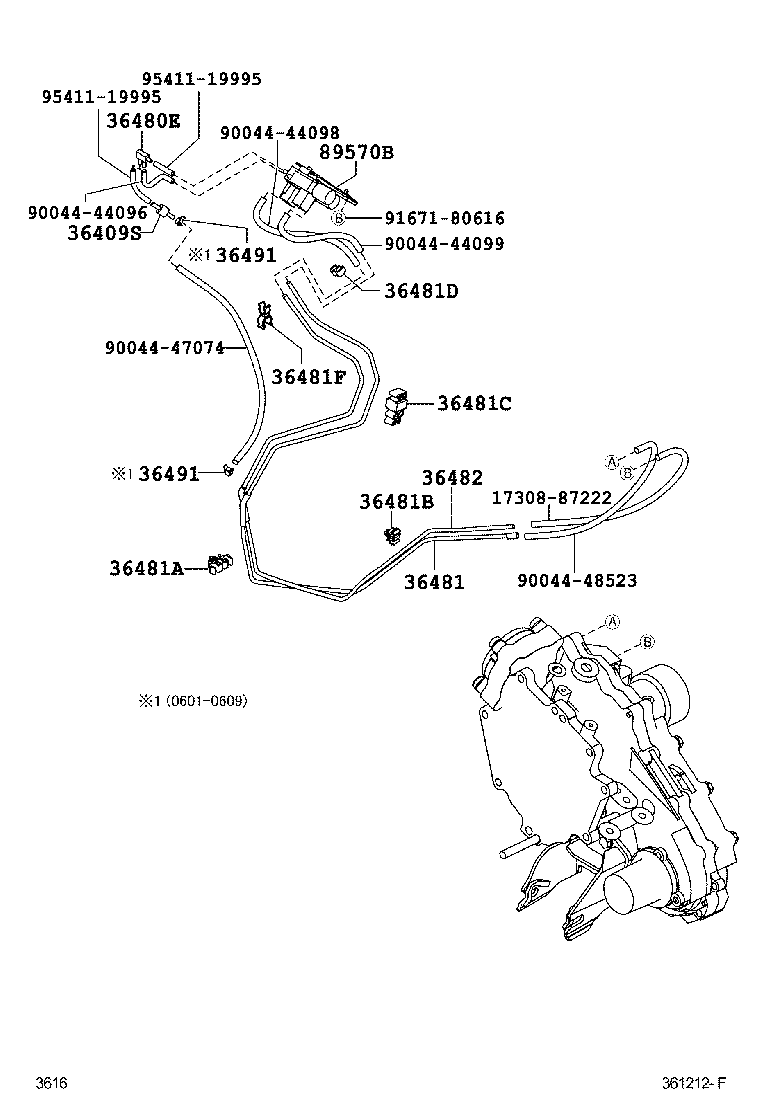

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT) | ||||
| 90048-20008 |
J210 |
1 | ||
| 36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE) | ||||
| 90044-13034 |
J210 |
1 | ||
| 36481 - TUBE, FRONT DRIVE VACUUM, NO.1 | ||||
| 36481-B4010 |
J210 |
1 | ||
| 36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE) | ||||
| 90044-64742 |
J210 |
1 | ||
| 36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1 | ||||
| 90044-64687 |
J210 |
1 | ||
| 36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2 | ||||
| 90044-64781 |
J210 |
1 | ||
| 36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM) | ||||
| 90044-64108 |
J210 |
1 | ||
| 36481F - CLAMP, NO.3(FOR TRANSFER VACUUM) | ||||
| 90044-64805 |
J210 |
1 | ||
| 36482 - TUBE, FRONT DRIVE VACUUM, NO.2 | ||||
| 36482-B4010 |
J210 |
1 | ||
| 36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1 | ||||
| 90044-67122 |
J210 |
2 | ||
| 36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1 | ||||
| 90044-67122 |
J210 |
2 | ||
| 89570B - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-B4010 |
J210 |
1 | ||
| Common parts | ||||
| 17308-87222 | ||||
| 90044-44096 | ||||
| 90044-44098 | ||||
| 90044-44099 | ||||
| 90044-47074 | ||||
| 90044-48523 | ||||
| 91671-80616 | ||||
| 95411-19995 | ||||
