J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)J210

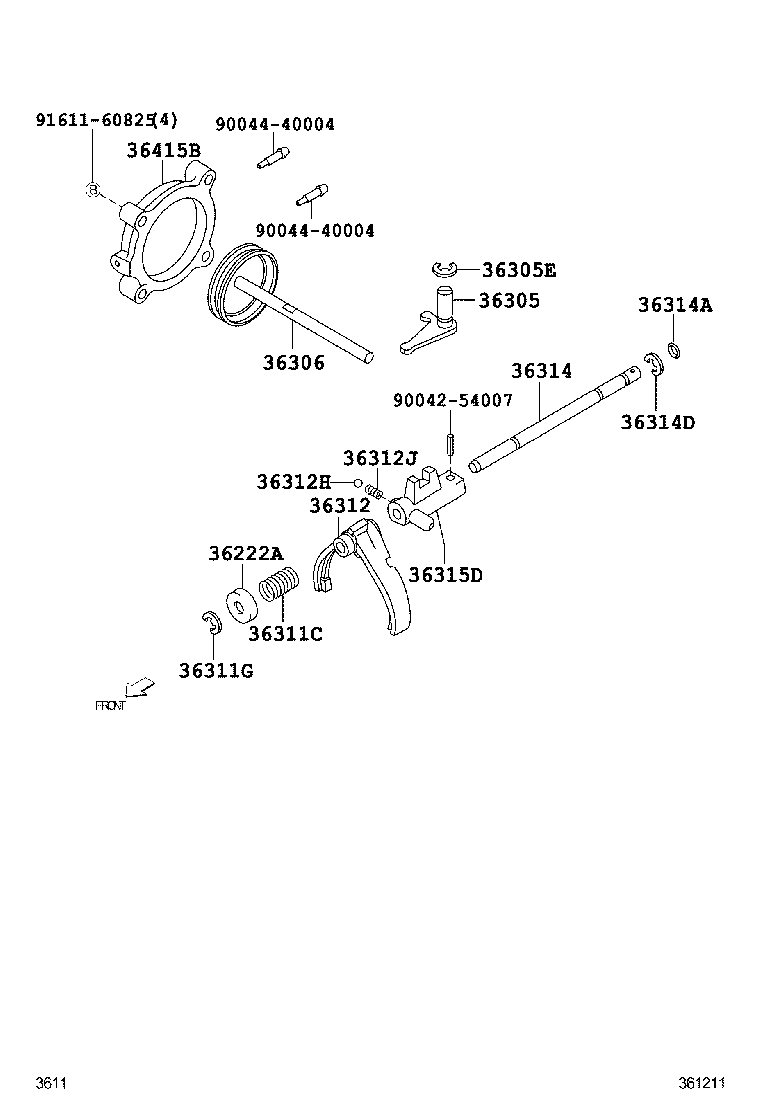

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36222A - WASHER, TRANSFER CONTROL SHAFT | ||||
| 36222-87401 |
J210 |
1 | ||
| 36305 - LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK | ||||
| 36305-87502 |
J210 |
1 | ||
| 36305E - RING, E(FOR FRONT DRIVE SHIFT LINK LEVER) | ||||
| 90045-23007 |
J210 |
1 | ||
| 36306 - SHAFT SUB-ASSY, CONTROL | ||||
| 36306-87508 |
J210 |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90045-01739 |
J210 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90045-20262 |
J210 |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-87401 |
J210 |
1 | ||
| 36312H - BALL (FOR TRANSFER GEAR SHIFT FORK NO.2) | ||||
| 90043-60003 |
J210 |
1 | ||
| 36312J - SPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2) | ||||
| 90045-01267 |
J210 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-87401 |
J210..5F |
1 | ||
| 36314A - RING, O (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96711-19009 |
J210 |
1 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01000 |
J210 |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36316-87401 |
J210 |
1 | ||
| 36415B - COVER, DIAPHRAGM CYLINDER | ||||
| 36415-87501 |
J210 |
1 | ||
| Common parts | ||||
| 90042-54007 | ||||
| 90044-40004 | ||||
| 91611-60825 | ||||
