J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)J210

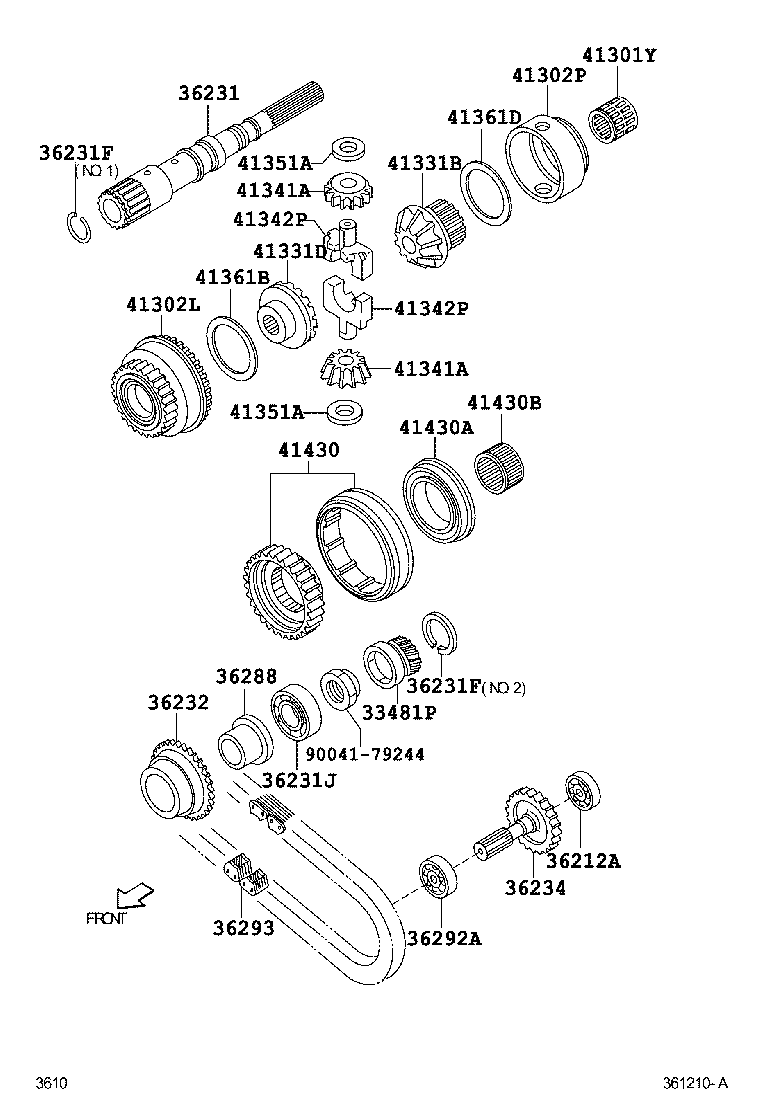

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-B4010 |
J210..5F |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 97100-06203 |
J210 |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-87401 |
J210..5F |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96150-02200 |
J210 NO.2 |
1 | ||
| 90045-20287 |
J210 NO.1 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96150-02200 |
J210 NO.2 |
1 | ||
| 90045-20287 |
J210 NO.1 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90043-63232 |
J210 |
1 | ||
| 36232 - GEAR, TRANSFER FRONT DRIVE | ||||
| 36232-B4010 |
J210 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-B4010 |
J210 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-B4010 |
J210 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 97130-06005 |
J210 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-B4010 |
J210 |
1 | ||
| 41301Y - BEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE) | ||||
| 90043-64144 |
J210 |
1 | ||
| 41302L - CASE SUB-ASSY, DIFFERENTIAL, NO.2 | ||||
| 41302-87401 |
J210..5F |
1 | ||
| 41302-B4010 |
J210..5F |
1 | ||
| 41302P - CASE SUB-ASSY, DIFFERENTIAL, NO.1 | ||||
| 41301-87407 |
J210 |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-87402 |
J210 |
1 | ||
| 41331D - GEAR, DIFFERENTIAL SIDE, NO.2 | ||||
| 41331-87406 |
J210..5F |
1 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-87403 |
J210 |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-87403 |
J210 |
2 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-87401 |
J210 |
2 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-87401 |
J210 |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-87501 |
J210 |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-87501 |
J210 |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87508 |
J210 外径=52,内径=36 |
1 | ||
| 41361D - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-87406 |
J210 外径=53,内径=42 |
1 | ||
| 41430 - HUB, TRANSFER CLUTCH | ||||
| 41430-87501 |
J210 |
1 | ||
| 41430A - BEARING, TRANSFER CLUTCH HUB | ||||
| 90043-63233 |
J210 |
1 | ||
| 41430B - NEEDLE ROLLER BEARING, TRANSFER CLUTCH HUB | ||||
| 90043-64112 |
J210 |
1 | ||
| Common parts | ||||
| 90041-79244 | ||||
