J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)J210

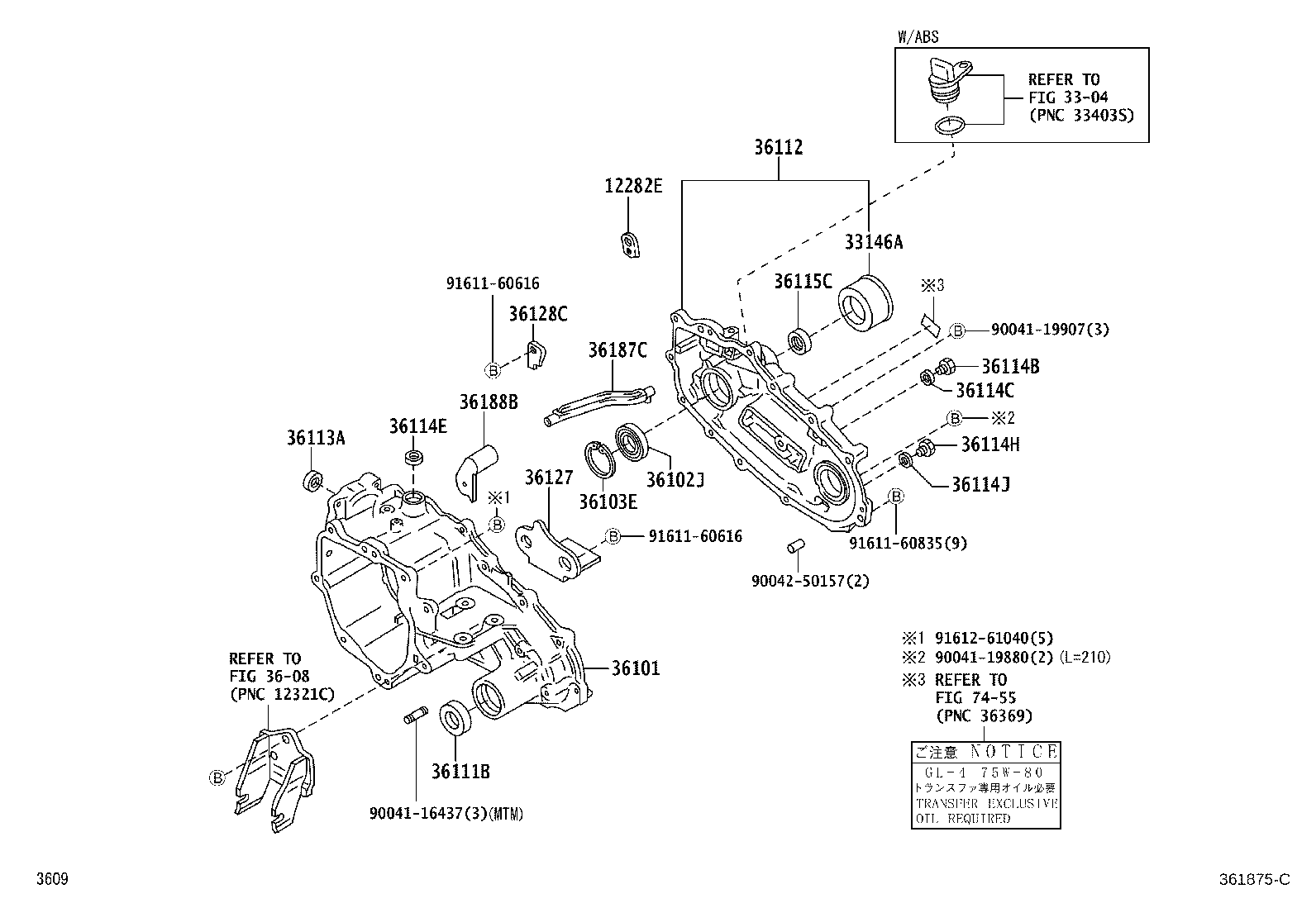

Click highlighted areas on diagram

diagram 12282E 3304 33146A 3608 36101 36102J 36103E 36111B 36112 36113A 36114B 36114C 36114E 36114H 36114J 36115C 36127 36128C 36187C 36188B 7455 9004116437 9004119880 9004119907 9004250157 9161160616 9161160616 9161160835 9161261040
Part # Description Qty Price
12282E - HANGER, TRANSFER CASE
12282-87501

3SZVE..J210

 1
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-87404

J210

 1
36101 - CASE SUB-ASSY, TRANSFER
36103-B4010

J210..5F

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
88364-87501

J210

 1
36103E - RING, HOLE SNAP (FOR TRANSFER CASE BEARING)
90045-21156

J210

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90043-11320

J210

 1
36112 - CASE, TRANSFER, REAR
36104-B4010

J210..5F

 1
36104-B4020

J210..5F

 1
36113A - SEAL, OIL (FOR TRANSFER CASE RH)
90043-11362

J210

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-16012

J210

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90044-30178

J210

 1
36114E - SEAL, OIL (FOR TRANSFER CASE LH)
90043-13008

J210

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90043-41068

J210

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
90044-30055

J210

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90043-11285

J210

 1
36127 - PLATE, TRANSFER OIL
36127-87506

J210

 1
36128C - PLATE, TRANSFER OIL SUPPLY
36128-87503

J210

 1
36187C - PIPE, TRANSFER OIL SUPPLY, RH
36187-87502

J210

 1
36188B - PIPE, TRANSFER OIL SUPPLY, LH
36188-B5010

J210..5F

 1
Common parts
90041-16437
90041-19880
90041-19907
90042-50157
91611-60616
91611-60835
91612-61040
Linked diagrams
3304
3608
7455
