J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1302)5F

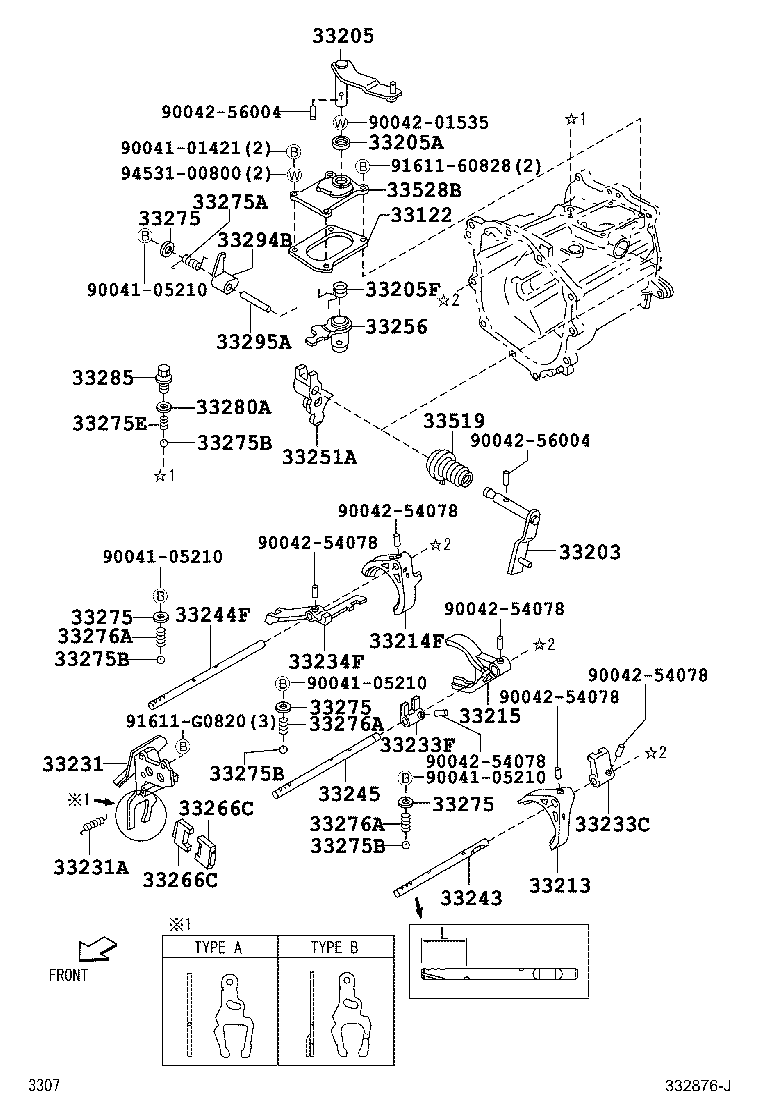

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-87504 |
J210..5F |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-B4010 |
J210..5F |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-B0010 |
J210..5F |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90043-13008 |
J210..5F |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90045-08333 |
J210..5F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-97501 |
J210..5F |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-97501 |
J210..5F |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-B4010 |
J210..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33201-87401 |
J210..5F ﾀｲﾌﾟ A |
1 | ||
| 33201-B0010 |
J210..5F ﾀｲﾌﾟ B |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90045-06241 |
J210..5F |
1 | ||
| 33233C - HEAD, 1ST & 2ND SHIFT | ||||
| 33233-97501 |
J210..5F |
1 | ||
| 33233F - HEAD, 3RD & 4TH SHIFT | ||||
| 33234-97501 |
J210..5F |
1 | ||
| 33234F - HEAD, REVERSE & 5TH SHIFT | ||||
| 33237-87501 |
J210..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-97501 |
J210..5F |
1 | ||
| 33244F - SHAFT,5TH & REVERSE SHIFT | ||||
| 33244-97501 |
J210..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-B4010 |
J210..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-87509 |
J210..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-87501 |
J210..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
J210..5F |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
J210..5F |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
J210..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
J210..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
J210..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
J210..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90045-08332 |
J210..5F |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
J210..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
J210..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
J210..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
J210..5F |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01669 |
J210..5F |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
J210..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
J210..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
J210..5F |
3 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90044-30295 |
J210..5F |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-87501 |
J210..5F |
1 | ||
| 33294B - CAM, REVERSE RESTRICT | ||||
| 33294-87503 |
J210..5F |
1 | ||
| 33295A - SHAFT, REVERSE RESTRICT | ||||
| 33295-87501 |
J210..5F |
1 | ||
| 33519 - BOOT, CONTROL SHAFT DUST | ||||
| 33519-B4010 |
J210..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33528-87503 |
J210..5F |
1 | ||
| Common parts | ||||
| 90041-01421 | ||||
| 90041-05210 | ||||
| 90042-01535 | ||||
| 90042-54078 | ||||
| 90042-56004 | ||||
| 91611-60828 | ||||
| 91611-G0820 | ||||
| 94531-00800 | ||||
