J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

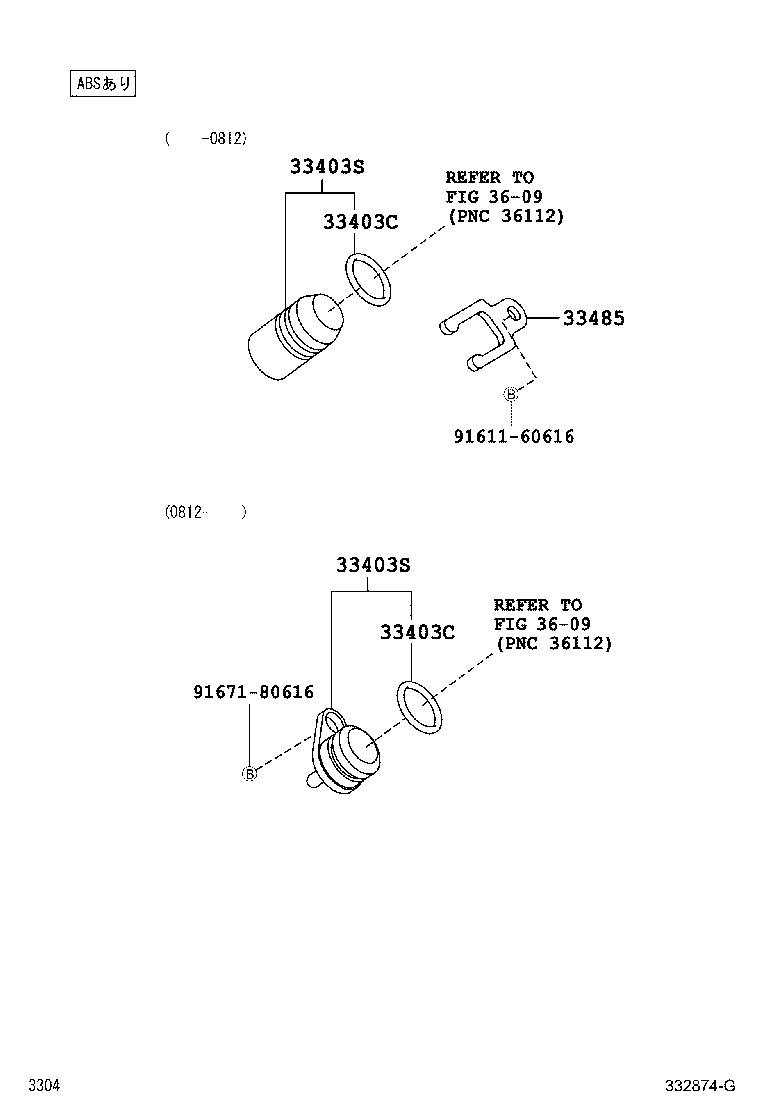

Click highlighted areas on diagram

diagram 33403C 33403C 33403S 33403S 33485 3609 3609 9161160616 9167180616
Part # Description Qty Price
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
96723-24020

J210..5F

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
96723-24020

J210..5F

 1
33403S - PLUG(FOR MTM SPEEDOMETER DRIVEN HOLE)
90043-39133

J210..5F

 1
33403S - PLUG(FOR MTM SPEEDOMETER DRIVEN HOLE)
90043-39133

J210..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-97201

J210..5F

 1
Common parts
91611-60616
91671-80616
Linked diagrams
3609
