J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

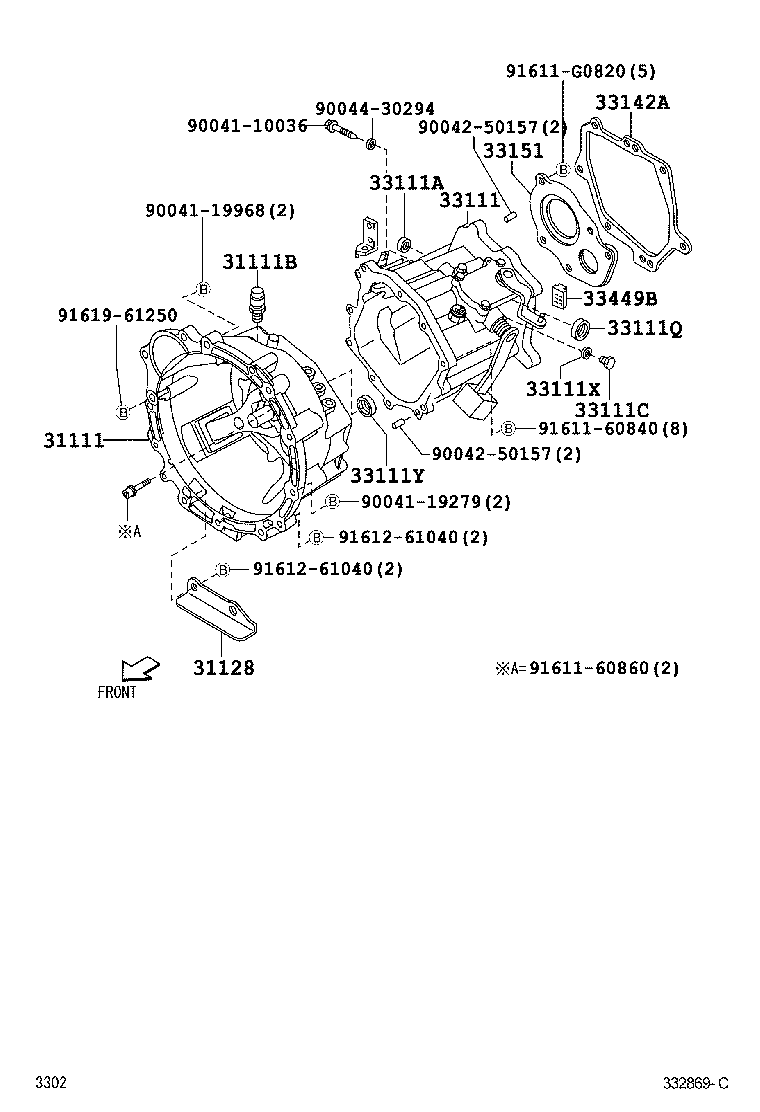

Click highlighted areas on diagram

diagram 31111 31111B 31128 33111 33111A 33111C 33111Q 33111X 33111Y 33142A 33151 33449B 9004110036 9004119279 9004119968 9004250157 9004250157 9004430294 9161160840 9161160860 91611G0820 9161261040 9161261040 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-87403

J210..5F

 1
31111B - PLUG(FOR CLUTCH HOUSING)
90049-15026

J210..5F

 1
31128 - COVER, CLUTCH HOUSING UNDER
31128-87404

J210..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-97501

J210..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90043-31025

J210..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90043-41085

J210..5F

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90043-11308

J210..5F

 1
33111X - GASKET, TRANSMISSION CASE PLUG
90044-30186

J210..5F

 1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
90043-10051

J210..5F

 1
33142A - GASKET, EXTENSION HOUSING
33142-B5010

J210..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-97502

J210..5F

 1
33449B - MAGNET, TRANSMISSION
33449-87501

J210..5F

 1
Common parts
90041-10036
90041-19279
90041-19968
90042-50157
90044-30294
91611-60840
91611-60860
91611-G0820
91612-61040
91619-61250
