J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

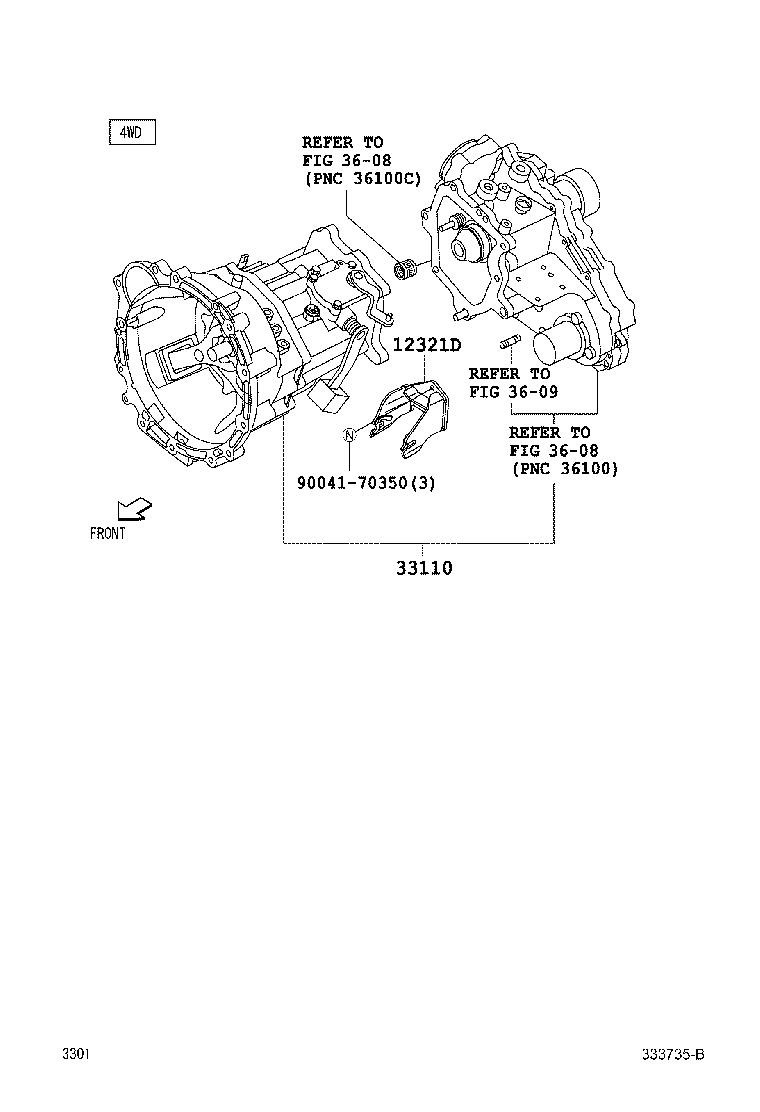

Click highlighted areas on diagram

diagram 12321D 33110 3608 3608 3609 9004170350
Part # Description Qty Price
12321D - BRACKET, ENGINE MOUNTING, REAR
12321-B4020

3SZVE..J210..5F

 1
33110 - TRANSMISSION ASSY, MANUAL
33010-B4020

J210..5F

 1
Common parts
90041-70350
Linked diagrams
3608
3609
