J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

Click highlighted areas on diagram

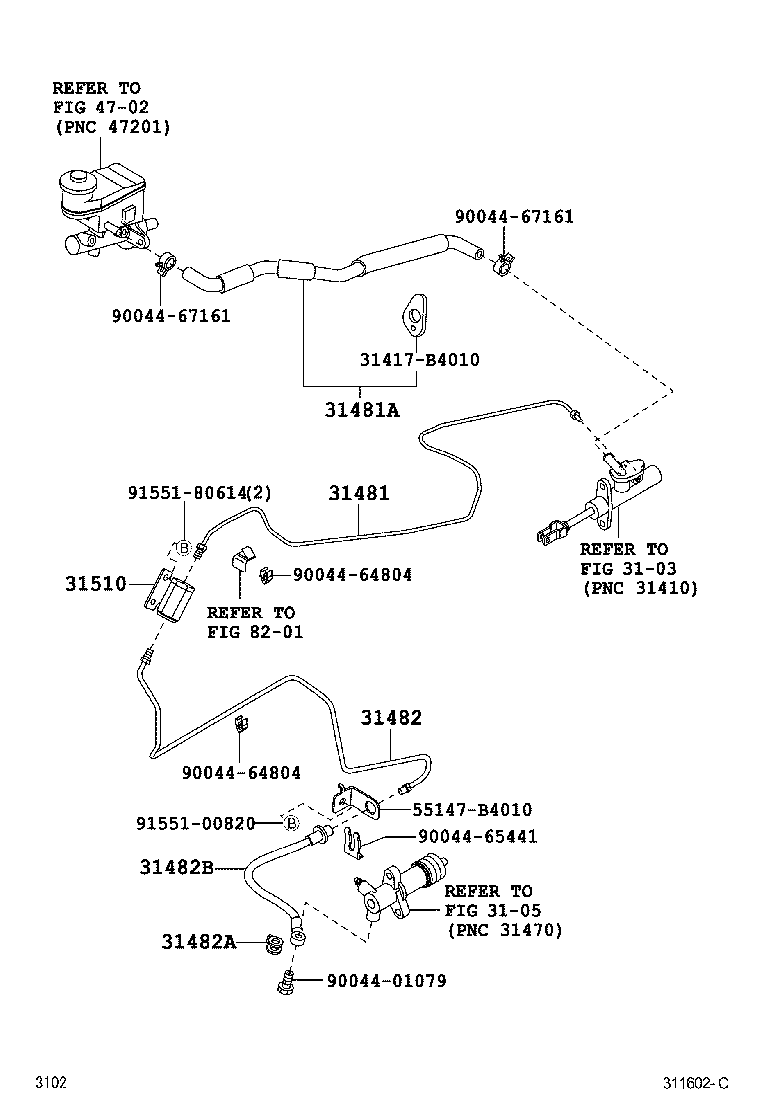

diagram 3103 3105 31417B4010 31481 31481A 31482 31482A 31482B 31510 4702 55147B4010 8201 9004401079 9004464804 9004464804 9004465441 9004467161 9004467161 9155100820 9155180614
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482-B4010

J210..5F

 1
31481A - HOSE, CLUTCH, NO.1
31434-B4010

J210..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-B4030

J210..5F

 1
31482A - GASKET(FOR CLUTCH RELEASE CYLINDER)
47389-97201

J210..5F

 1
31482B - HOSE, CLUTCH, NO.2
90049-22208

J210..5F

 1
31510 - ORIFICE ASSY, CLUTCH
31510-B4010

J210..5F

 1
Common parts
31417-B4010
55147-B4010
90044-01079
90044-64804
90044-65441
90044-67161
91551-00820
91551-80614
Linked diagrams
3103
3105
4702
8201

(0601-1302)5F

Click highlighted areas on diagram

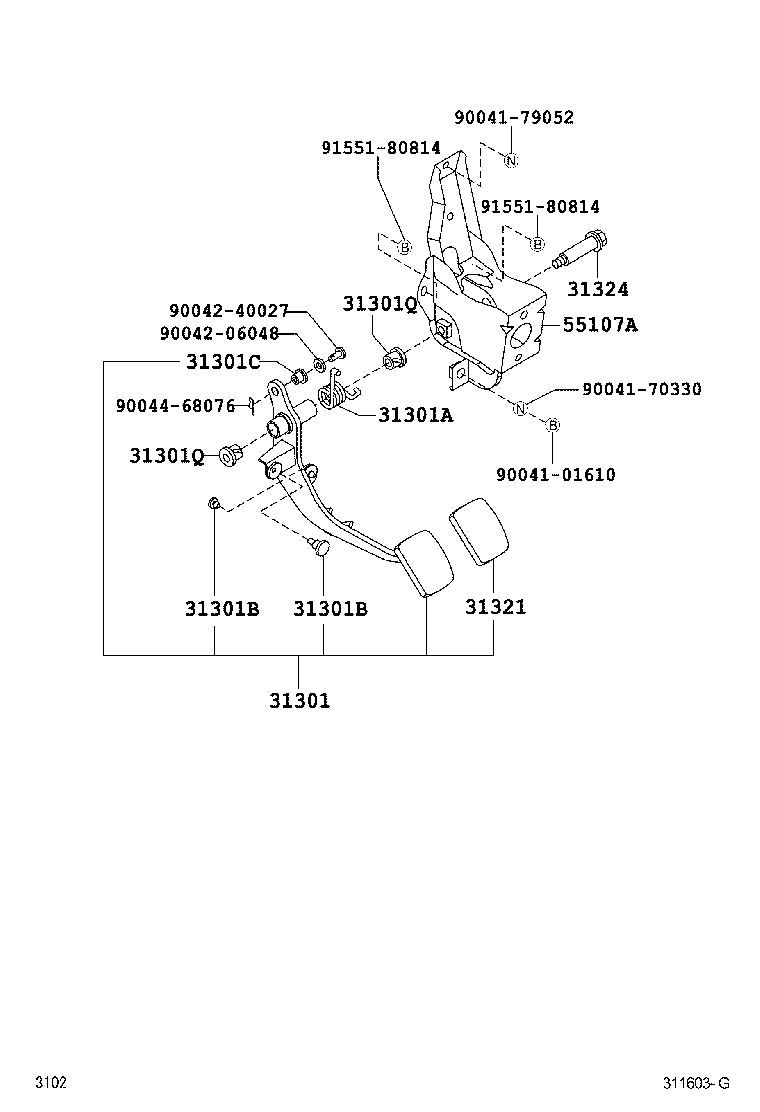

diagram 31301 31301A 31301B 31301B 31301C 31301Q 31301Q 31321 31324 55107A 9004101610 9004170330 9004179052 9004206048 9004240027 9004468076 9155180814 9155180814
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-B4010

J210..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90045-08411

J210..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

J210..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

J210..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86123

J210..5F

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90043-86121

J210..5F

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90043-86121

J210..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-87204

J210..5F

 1
31324 - SHAFT, CLUTCH PEDAL
31324-B2010

J210..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-B4010

J210..5F

 1
Common parts
90041-01610
90041-70330
90041-79052
90042-06048
90042-40027
90044-68076
91551-80814
