J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1302)5F

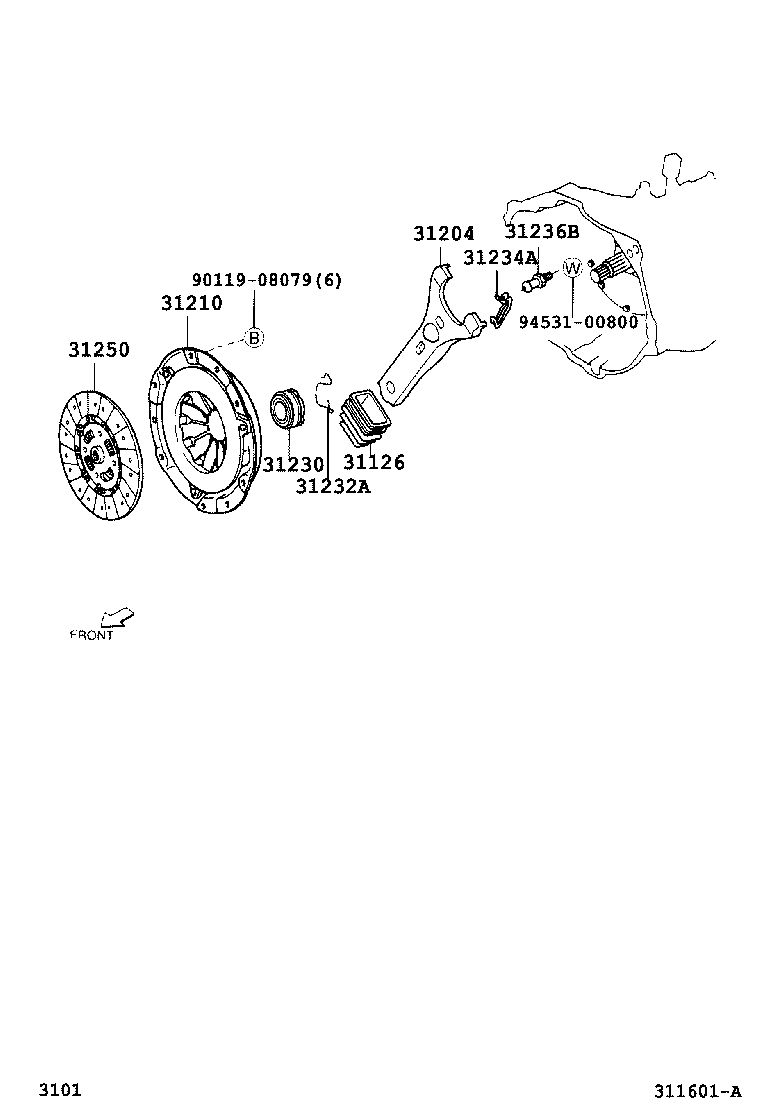

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31234A 31236B 31250 9011908079 9453100800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

J210..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31233-87402

J210..5F

 1
31210 - COVER ASSY, CLUTCH
31210-B4010

J210..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-97502

J210..5F

NSK

 1
31230-87507

J210..5F

KOYO

 1
31232A - CLIP, RELEASE BEARING HUB
31232-87401

J210..5F

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-87402

J210..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-87401

J210..5F

 1
31250 - DISC ASSY, CLUTCH
31250-B4010

J210..5F

 1
Common parts
90119-08079
94531-00800
