J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1010)

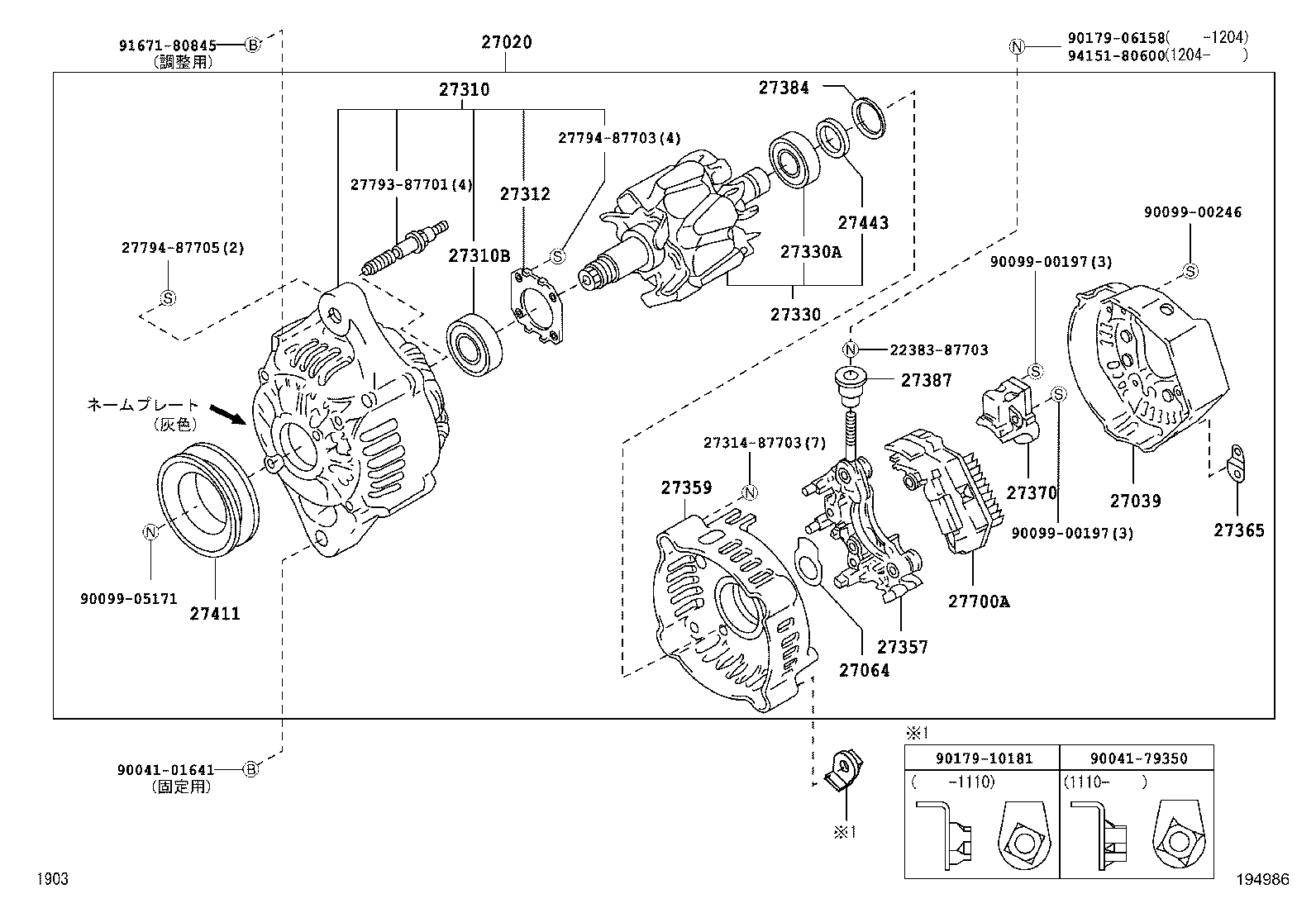

Click highlighted areas on diagram

diagram 2238387703 27020 27039 27064 27310 27310B 27312 2731487703 27330 27330A 27357 27359 27365 27370 27384 27387 27411 27443 27700A 2779387701 2779487703 2779487705 9004101641 9004179350 9009900197 9009900197 9009900246 9009905171 9017906158 9017910181 9167180845 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-B1030

3SZVE..J200,210

12V 80A,ﾈｰﾑﾌﾟﾚｰﾄ:灰色

 1
27039 - COVER, ALTERNATOR REAR END
27039-B1010

3SZVE..J200,210

 1
27064 - SEAL, ALTERNATOR PLATE
27333-87301

3SZVE..J200,210

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-B1010

3SZVE..J200,210

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87703

3SZVE..J200,210

 1
27312 - PLATE, RETAINER
27312-87704

3SZVE..J200,210

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-B1010

3SZVE..J200,210

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87708

3SZVE..J200,210

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-B1010

3SZVE..J200,210

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-B1010

3SZVE..J200,210

 1
27365 - PLATE, TERMINAL
27374-87301

3SZVE..J200,210

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-B1010

3SZVE..J200,210

 1
27384 - WASHER
27384-87702

3SZVE..J200,210

 1
27387 - INSULATOR, TERMINAL
27387-87708

3SZVE..J200,210

 1
27411 - PULLEY, ALTERNATOR
27411-B1010

3SZVE..J200,210

 1
27443 - COVER, ALTERNATOR BEARING
27443-87501

3SZVE..J200,210

 1
27700A - REGULATOR ASSY, GENERATOR
27700-B1010

3SZVE..J200,210

 1
Common parts
22383-87703
27314-87703
27793-87701
27794-87703
27794-87705
90041-01641
90041-79350
90099-00197
90099-00246
90099-05171
90179-06158
90179-10181
91671-80845
94151-80600
