J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

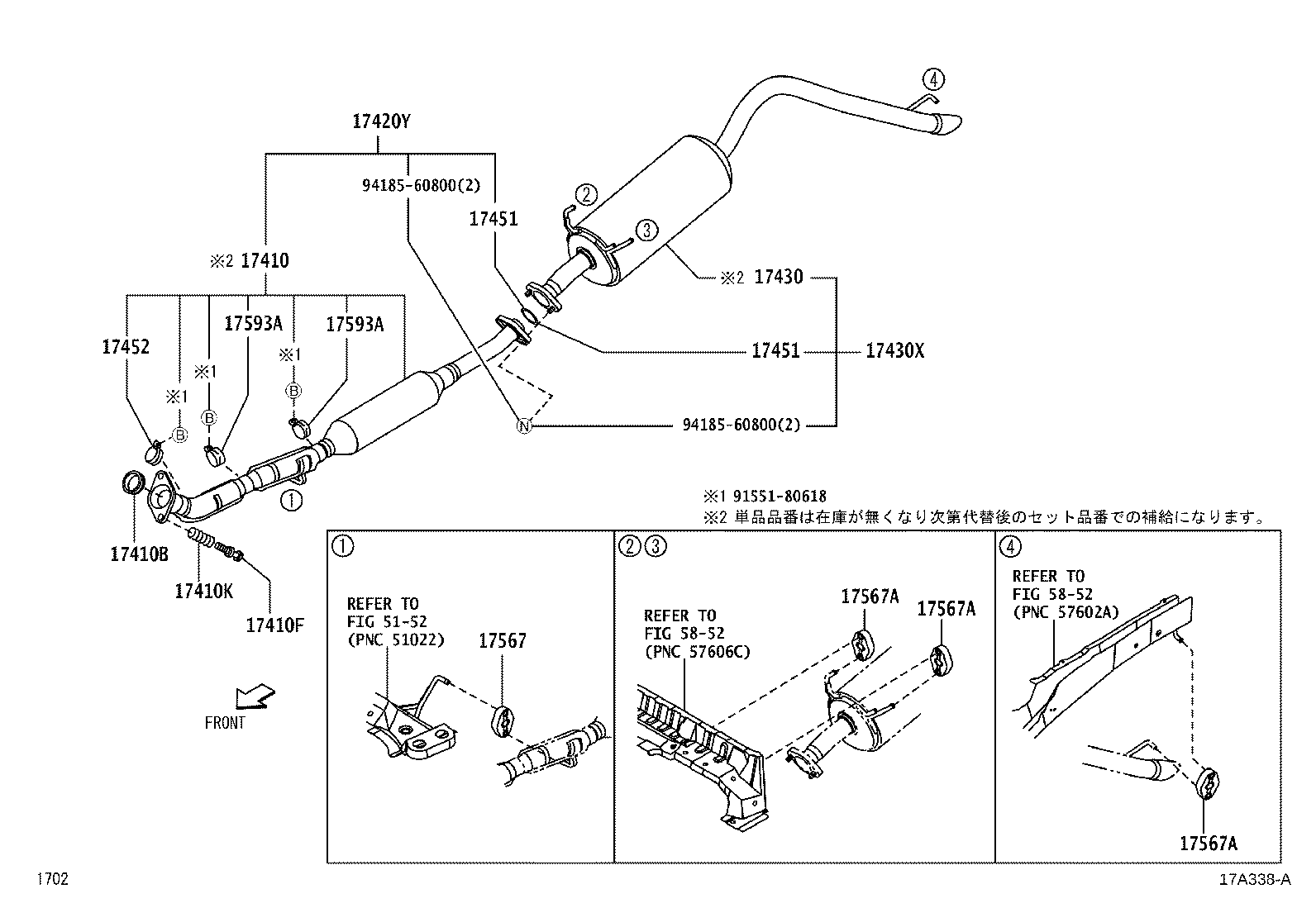

Click highlighted areas on diagram

diagram 17410 17410B 17410F 17410K 17420Y 17430 17430X 17451 17451 17452 17567 17567A 17567A 17567A 17593A 17593A 5152 5852 5852 9155180618 9418560800 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-B4010

3SZVE..J200,210

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

3SZVE..J200,210

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17569-97501

3SZVE..J200,210

 2
17410K - SPRING, EXHAUST PIPE
17152-97503

3SZVE..J200,210

 2
17420Y - PIPE SET, EXHAUST, FRONT
17420-B9660

3SZVE..J200,210

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-B4050

3SZVE..J200,210

 1
17430-B4020

3SZVE..J200,210

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

3SZVE..J200,210

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

3SZVE..J200,210

 1
17452 - CLAMP, EXHAUST PIPE
90461-12350

3SZVE..J200,210

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-87210

3SZVE..J200,210

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-87210

3SZVE..J210..5F

 3
17567-B2010

3SZVE..J210..5F

 3
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-87210

3SZVE..J210..5F

 3
17567-B2010

3SZVE..J210..5F

 3
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-87210

3SZVE..J210..5F

 3
17567-B2010

3SZVE..J210..5F

 3
17593A - CLAMP
90461-12418

3SZVE..J200,210

 2
17593A - CLAMP
90461-12418

3SZVE..J200,210

 2
Common parts
91551-80618
94185-60800
Linked diagrams
5152
5852
