J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

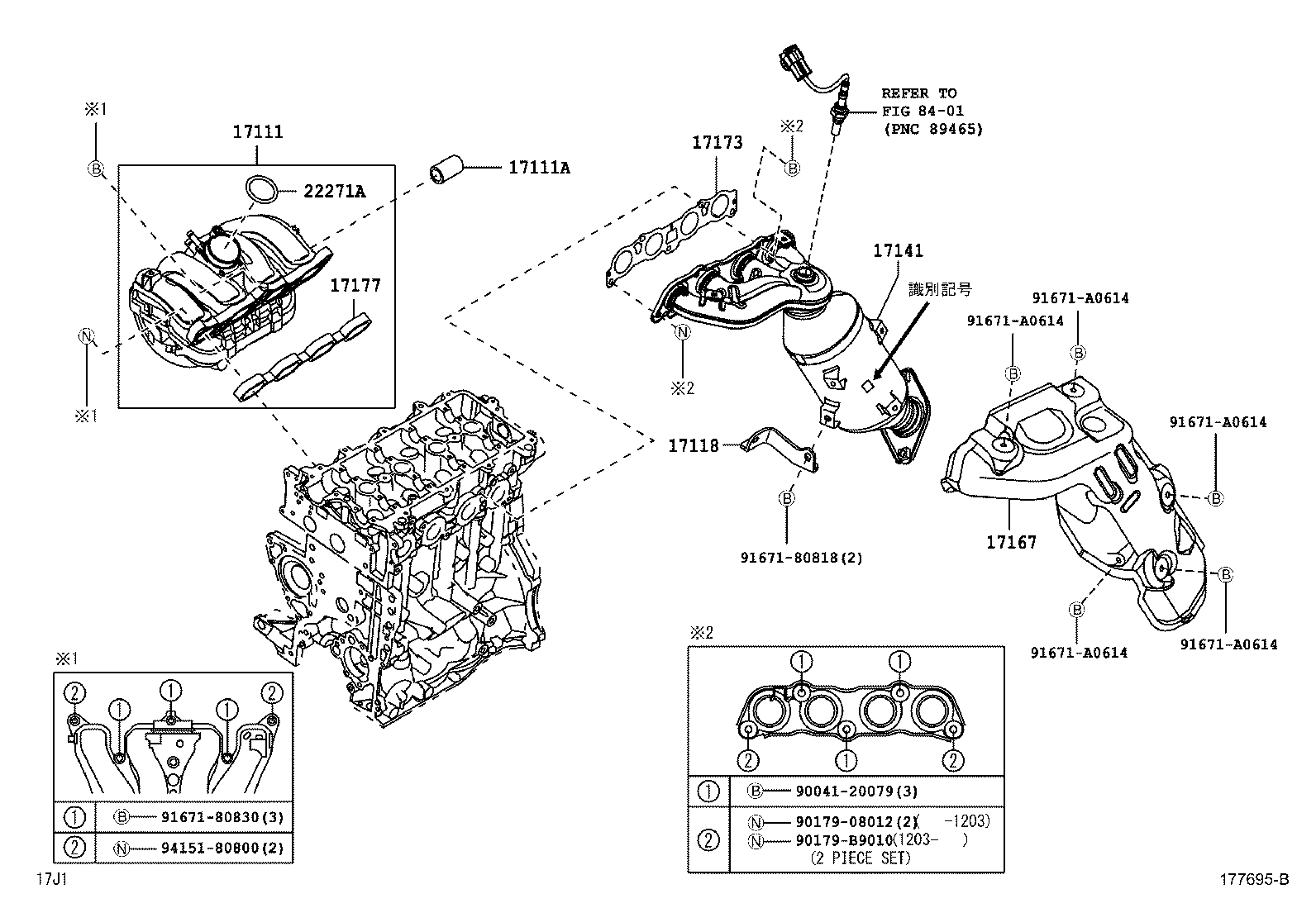

Click highlighted areas on diagram

diagram 17111 17111A 17118 17141 17167 17173 17177 22271A 8401 9004120079 9017908012 90179B9010 9167180818 9167180830 91671A0614 91671A0614 91671A0614 91671A0614 91671A0614 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-B1020

3SZVE..J200,210

 1
17118 - STAY, MANIFOLD
17118-B1030

3SZVE..J200,210

 1
17141 - MANIFOLD, EXHAUST
17140-B1200

3SZVE..J200,210

識別記号=Q

 1
17140-B1100

3SZVE..J200,210

識別記号=A

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-B1020

3SZVE..J200,210

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-97401

3SZVE..J200,210

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B1020

3SZVE..J200,210

 1
22271A - GASKET, THROTTLE BODY
90043-01321

3SZVE..J200,210

 1
Common parts
90041-20079
90179-08012
90179-B9010
91671-80818
91671-80830
91671-A0614
94151-80800
Linked diagrams
8401
