J210E-GMGF (2006)
Toyota Rush

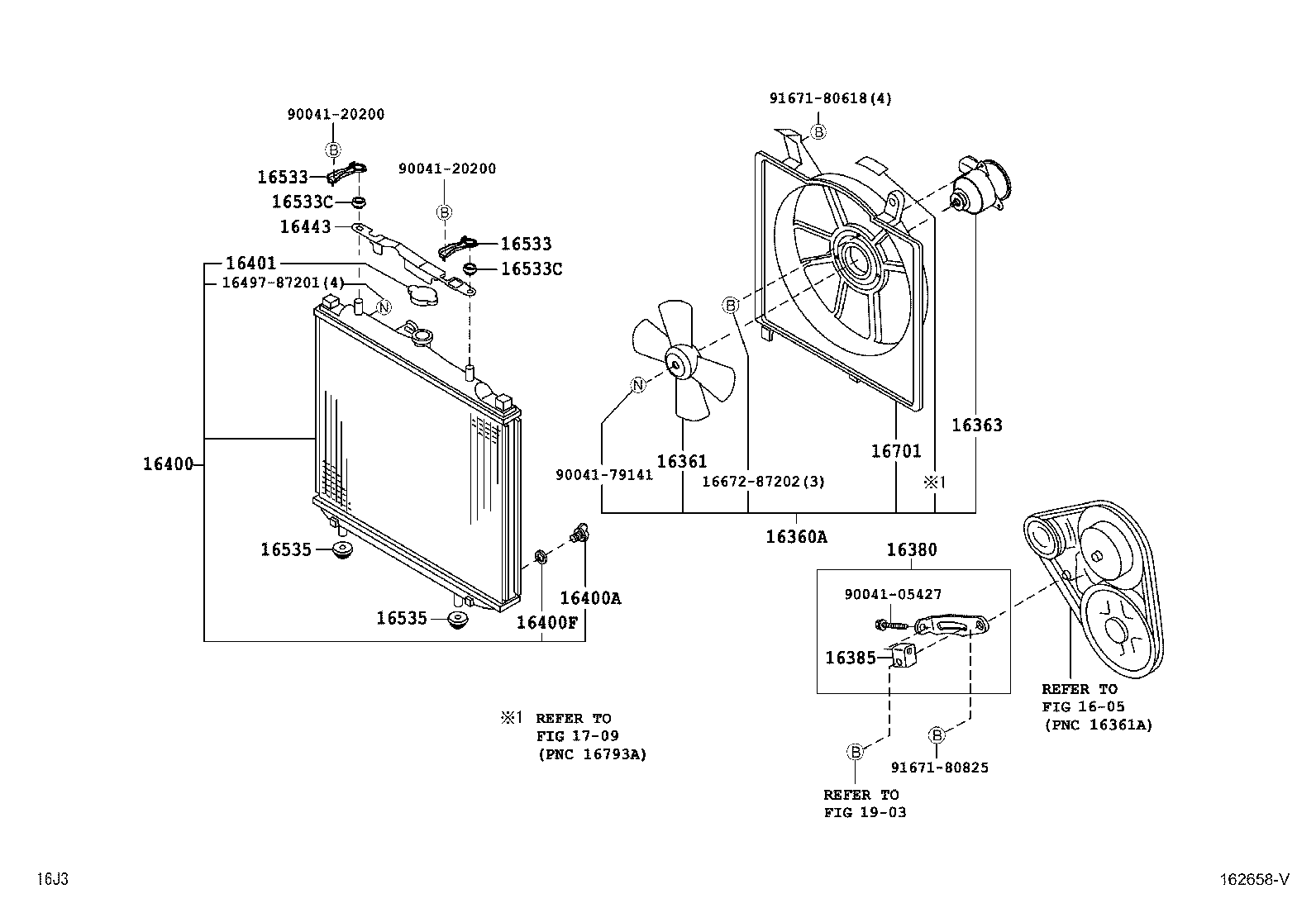

(0601-0811)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B1110 |
3SZVE..J200,210 |
1 | ||
| 16361 - FAN | ||||
| 16361-87402 |
3SZVE..J200,210 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16680-87402 |
3SZVE..J200,210 |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-B1050 |
3SZVE..J200,210 |
1 | ||
| 16380-B1051 |
3SZVE..J200,210 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-23030 |
3SZVE..J200,210 |
1 | ||
| 16385-23030 |
3SZVE..J200,210 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B1181 |
3SZVE..J210..5F |
1 | ||
| 16400-B1180 |
3SZVE..J210..5F |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-30170 |
3SZVE..J200,210 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-87503 |
3SZVE..J200,210 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-97203 |
3SZVE..J200,210 |
1 | ||
| 16401-97203 |
3SZVE..J200,210 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-B1010 |
3SZVE..J200,210 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16582-B1020 |
3SZVE..J200,210 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16582-B1020 |
3SZVE..J200,210 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80617 |
3SZVE..J200,210 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80617 |
3SZVE..J200,210 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80651 |
3SZVE..J200,210 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80651 |
3SZVE..J200,210 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-B1020 |
3SZVE..J200,210 |
1 | ||
| Common parts | ||||
| 16497-87201 | ||||
| 16672-87202 | ||||
| 90041-05427 | ||||
| 90041-20200 | ||||
| 90041-79141 | ||||
| 91671-80618 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1709 | ||||
| 1903 | ||||

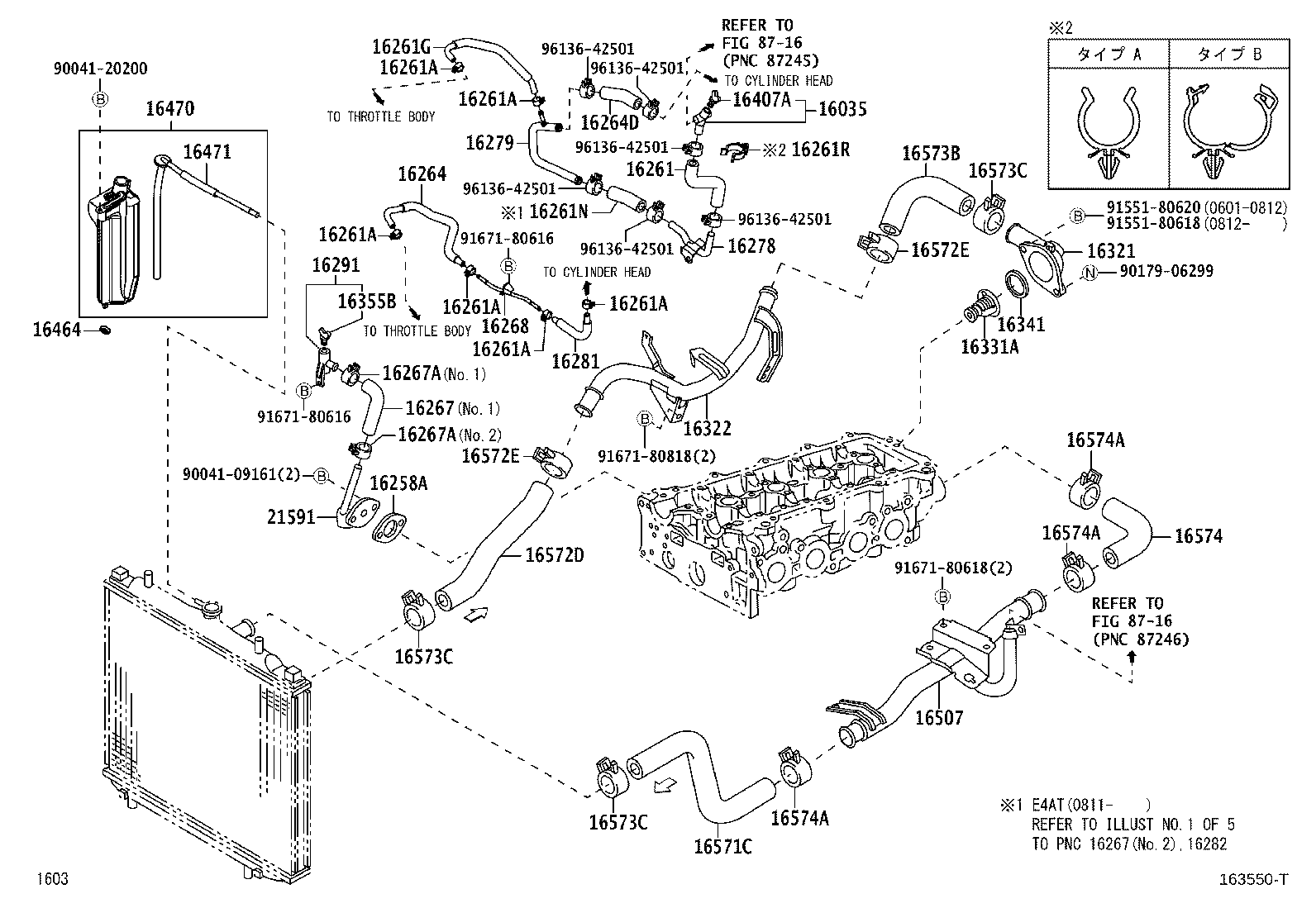

(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16035 - JOINT, WATER HOSE | ||||
| 16035-87401 |
3SZVE..J200,210 |
1 | ||
| 16035-B0010 |
3SZVE..J200,210 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-97401 |
3SZVE..J200,210 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-B1070 |
3SZVE..J200,210 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
3SZVE..J200,210 |
6 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B1060 |
3SZVE..J200,210 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B1090 |
3SZVE..J200,210 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-64772 |
3SZVE..J200,210 ﾀｲﾌﾟ A |
1 | ||
| 90044-64830 |
3SZVE..J200,210 ﾀｲﾌﾟ B |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B1020 |
3SZVE..J200,210 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16337-97401 |
3SZVE..J200,210 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-97401 |
3SZVE..J200,210 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90044-67029 |
3SZVE..J200,210 NO.2 |
1 | ||
| 90044-67219 |
3SZVE..J200,210 NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90044-67029 |
3SZVE..J200,210 NO.2 |
1 | ||
| 90044-67219 |
3SZVE..J200,210 NO.1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-B1030 |
3SZVE..J200,210 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-B1010 |
3SZVE..J200,210 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-B1010 |
3SZVE..J200,210 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-B1010 |
3SZVE..J200,210 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16035-97401 |
3SZVE..J200,210 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-97403 |
3SZVE..J200,210 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-B1010 |
3SZVE..J200,210 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33088 |
3SZVE..J200,210 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
3SZVE..J200,210 |
1 | ||
| 16355B - COCK SUB-ASSY, WATER DRAIN(FOR WATER BY-PASS JOINT) | ||||
| 16407-97201 |
3SZVE..J200,210 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-97201 |
3SZVE..J200,210 |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
3SZVE..J200,210 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B1030 |
3SZVE..J200,210 Lｼﾞｶﾞﾀ ﾌﾞﾗｹｯﾄ ﾂｷ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B1030 |
3SZVE..J200,210 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-B1010 |
3SZVE..J200,210 ｼﾙﾊﾞｰ |
1 | ||
| 16507-B1020 |
3SZVE..J200,210 黄色味を帯びた銀白色 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B1040 |
3SZVE..J200,210 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B1040 |
3SZVE..J200,210 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-66022 |
3SZVE..J200,210 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-66022 |
3SZVE..J200,210 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-87401 |
3SZVE..J200,210 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90044-66022 |
3SZVE..J200,210 |
3 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90044-66022 |
3SZVE..J200,210 |
3 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90044-66022 |
3SZVE..J200,210 |
3 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-97401 |
3SZVE..J200,210 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
3SZVE..J200,210 |
3 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
3SZVE..J200,210 |
3 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
3SZVE..J200,210 |
3 | ||
| 21591 - PLATE, WATER BY-PASS | ||||
| 21591-97401 |
3SZVE..J200,210 |
1 | ||
| Common parts | ||||
| 90041-09161 | ||||
| 90041-20200 | ||||
| 90179-06299 | ||||
| 91551-80618 | ||||
| 91551-80620 | ||||
| 91671-80616 | ||||
| 91671-80618 | ||||
| 91671-80818 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 8716 | ||||

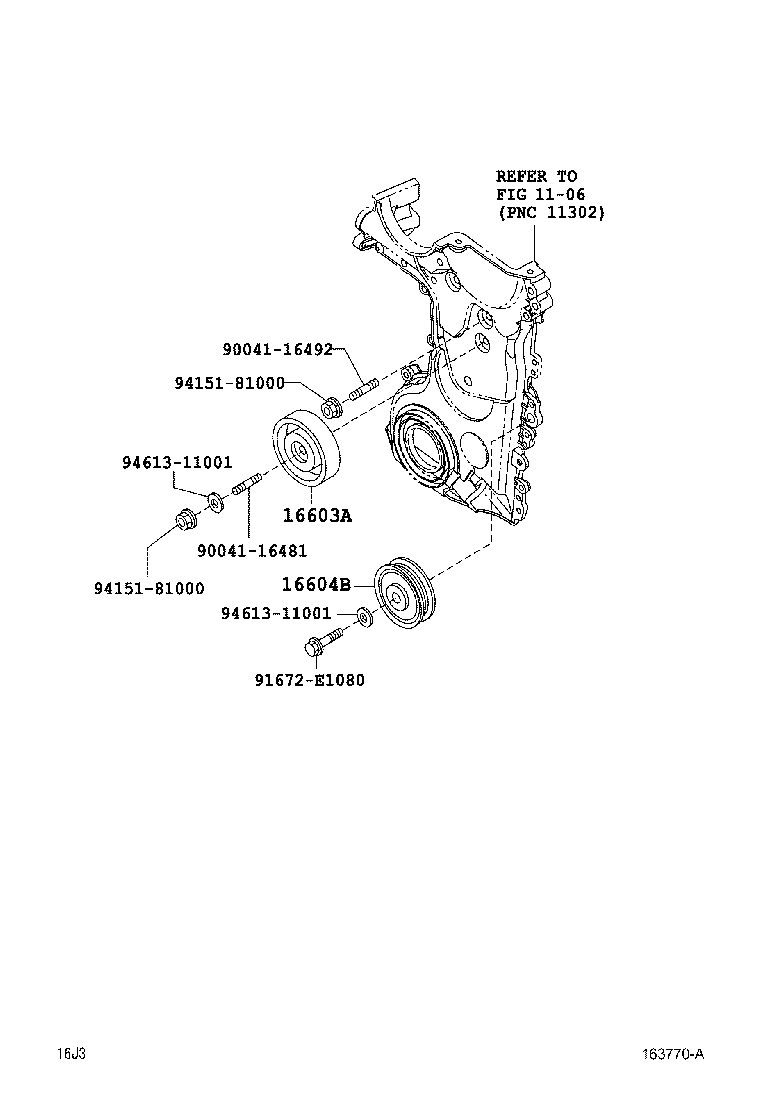

(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-23021 |
3SZVE..J200,210 |
1 | ||
| 16603-23020 |
3SZVE..J200,210 |
1 | ||
| 16603-23022 |
3SZVE..J200,210 |
1 | ||
| 16604B - PULLEY SUB-ASSY, IDLER, NO.2 | ||||
| 16604-23011 |
3SZVE..J200,210 |
1 | ||
| Common parts | ||||
| 90041-16481 | ||||
| 90041-16492 | ||||
| 91672-E1080 | ||||
| 94151-81000 | ||||
| 94613-11001 | ||||
| Linked diagrams | ||||
| 1106 | ||||
