J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

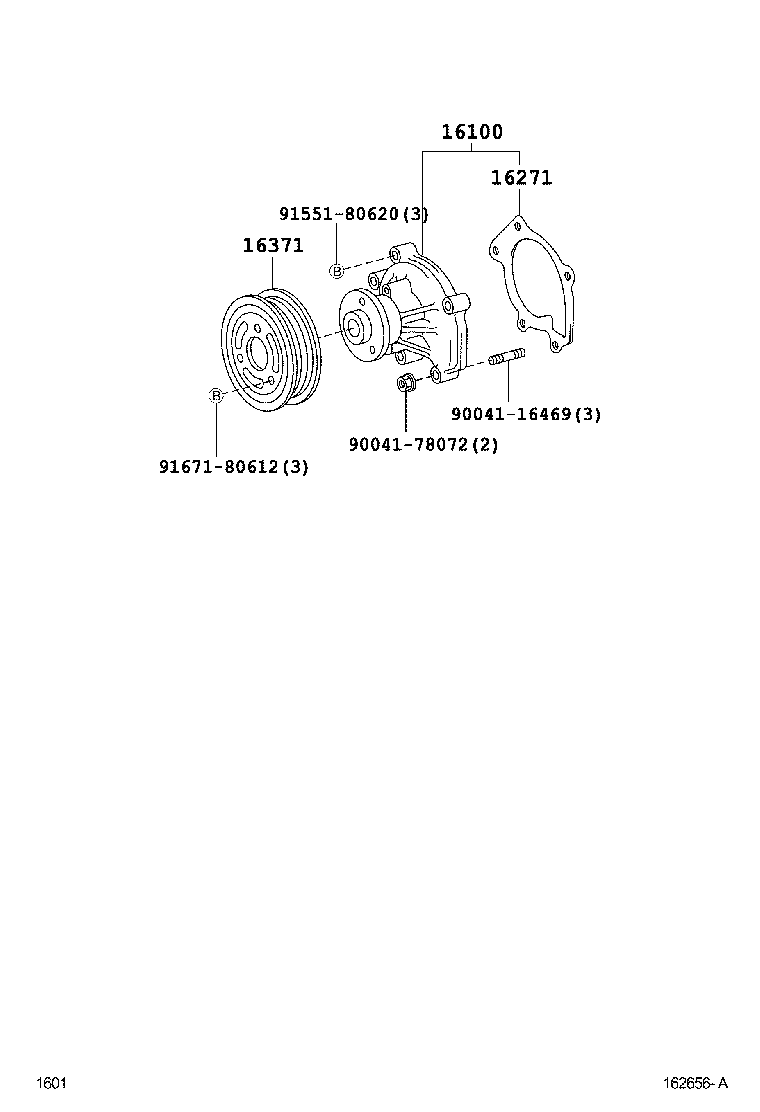

diagram 16100 16271 16371 9004116469 9004178072 9155180620 9167180612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-B9010

3SZVE..J200,210

 1
16271 - GASKET, WATER PUMP
16271-B1010

3SZVE..J200,210

 1
16271-97401

3SZVE..J200,210

 1
16371 - PULLEY, FAN
16173-23040

3SZVE..J200,210

 1
Common parts
90041-16469
90041-78072
91551-80620
91671-80612
