J210E-GMGF (2006)
Toyota Rush
(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-B1010 |
3SZVE..J200,210 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-B1020 |
3SZVE..J200,210 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-97401 |
3SZVE..J200,210 |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-B1020 |
3SZVE..J200,210 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-B1010 |
3SZVE..J200,210 |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-23020 |
3SZVE..J200,210 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-B1010 |
3SZVE..J200,210 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-B1020 |
3SZVE..J200,210 |
1 | ||
| 13567A - GUIDE, TIMING CHAIN, NO.2 | ||||
| 13567-23030 |
3SZVE..J200,210 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-B1020 |
3SZVE..J200,210 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-B1020 |
3SZVE..J200,210 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
3SZVE..J200,210 |
16 | ||
| 90048-12026 |
3SZVE..J200,210 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
3SZVE..J200,210 |
16 | ||
| 90048-12026 |
3SZVE..J200,210 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01859 |
3SZVE..J200,210 CHUO HATSUJO |
16 | ||
| 90045-01898 |
3SZVE..J200,210 ｻﾝｺｰﾙ |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01859 |
3SZVE..J200,210 CHUO HATSUJO |
16 | ||
| 90045-01898 |
3SZVE..J200,210 ｻﾝｺｰﾙ |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-B1020 |
3SZVE..J200,210 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
3SZVE..J200,210 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
3SZVE..J200,210 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
3SZVE..J200,210 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
3SZVE..J200,210 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
3SZVE..J200,210 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
3SZVE..J200,210 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-9740120 |
3SZVE..J200,210 MARK20 |
16 | ||
| 13751-9740114 |
3SZVE..J200,210 MARK14 |
16 | ||
| 13751-9740128 |
3SZVE..J200,210 MARK28 |
16 | ||
| 13751-9740126 |
3SZVE..J200,210 MARK26 |
16 | ||
| 13751-9740130 |
3SZVE..J200,210 MARK30 |
16 | ||
| 13751-9740124 |
3SZVE..J200,210 MARK24 |
16 | ||
| 13751-9740140 |
3SZVE..J200,210 MARK40 |
16 | ||
| 13751-9740144 |
3SZVE..J200,210 MARK44 |
16 | ||
| 13751-9740116 |
3SZVE..J200,210 MARK16 |
16 | ||
| 13751-9740134 |
3SZVE..J200,210 MARK34 |
16 | ||
| 13751-9740136 |
3SZVE..J200,210 MARK36 |
16 | ||
| 13751-9740118 |
3SZVE..J200,210 MARK18 |
16 | ||
| 13751-9740148 |
3SZVE..J200,210 MARK48 |
16 | ||
| 13751-9740132 |
3SZVE..J200,210 MARK32 |
16 | ||
| 13751-9740146 |
3SZVE..J200,210 MARK46 |
16 | ||
| 13751-9740152 |
3SZVE..J200,210 MARK52 |
16 | ||
| 13751-9740154 |
3SZVE..J200,210 MARK54 |
16 | ||
| 13751-9740150 |
3SZVE..J200,210 MARK50 |
16 | ||
| 13751-9740158 |
3SZVE..J200,210 MARK58 |
16 | ||
| 13751-9740138 |
3SZVE..J200,210 MARK38 |
16 | ||
| 13751-9740166 |
3SZVE..J200,210 MARK66 |
16 | ||
| 13751-9740122 |
3SZVE..J200,210 MARK22 |
16 | ||
| 13751-9740162 |
3SZVE..J200,210 MARK62 |
16 | ||
| 13751-9740142 |
3SZVE..J200,210 MARK42 |
16 | ||
| 13751-9740160 |
3SZVE..J200,210 MARK60 |
16 | ||
| 13751-9740168 |
3SZVE..J200,210 MARK68 |
16 | ||
| 13751-9740156 |
3SZVE..J200,210 MARK56 |
16 | ||
| 13751-9740164 |
3SZVE..J200,210 MARK64 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-9740120 |
3SZVE..J200,210 MARK20 |
16 | ||
| 13751-9740114 |
3SZVE..J200,210 MARK14 |
16 | ||
| 13751-9740128 |
3SZVE..J200,210 MARK28 |
16 | ||
| 13751-9740126 |
3SZVE..J200,210 MARK26 |
16 | ||
| 13751-9740130 |
3SZVE..J200,210 MARK30 |
16 | ||
| 13751-9740124 |
3SZVE..J200,210 MARK24 |
16 | ||
| 13751-9740140 |
3SZVE..J200,210 MARK40 |
16 | ||
| 13751-9740144 |
3SZVE..J200,210 MARK44 |
16 | ||
| 13751-9740116 |
3SZVE..J200,210 MARK16 |
16 | ||
| 13751-9740134 |
3SZVE..J200,210 MARK34 |
16 | ||
| 13751-9740136 |
3SZVE..J200,210 MARK36 |
16 | ||
| 13751-9740118 |
3SZVE..J200,210 MARK18 |
16 | ||
| 13751-9740148 |
3SZVE..J200,210 MARK48 |
16 | ||
| 13751-9740132 |
3SZVE..J200,210 MARK32 |
16 | ||
| 13751-9740146 |
3SZVE..J200,210 MARK46 |
16 | ||
| 13751-9740152 |
3SZVE..J200,210 MARK52 |
16 | ||
| 13751-9740154 |
3SZVE..J200,210 MARK54 |
16 | ||
| 13751-9740150 |
3SZVE..J200,210 MARK50 |
16 | ||
| 13751-9740158 |
3SZVE..J200,210 MARK58 |
16 | ||
| 13751-9740138 |
3SZVE..J200,210 MARK38 |
16 | ||
| 13751-9740166 |
3SZVE..J200,210 MARK66 |
16 | ||
| 13751-9740122 |
3SZVE..J200,210 MARK22 |
16 | ||
| 13751-9740162 |
3SZVE..J200,210 MARK62 |
16 | ||
| 13751-9740142 |
3SZVE..J200,210 MARK42 |
16 | ||
| 13751-9740160 |
3SZVE..J200,210 MARK60 |
16 | ||
| 13751-9740168 |
3SZVE..J200,210 MARK68 |
16 | ||
| 13751-9740156 |
3SZVE..J200,210 MARK56 |
16 | ||
| 13751-9740164 |
3SZVE..J200,210 MARK64 |
16 | ||
| Common parts | ||||
| 90041-05236 | ||||
| 90041-09149 | ||||
| 90041-78072 | ||||
| 91551-80610 | ||||
| 91551-80616 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||

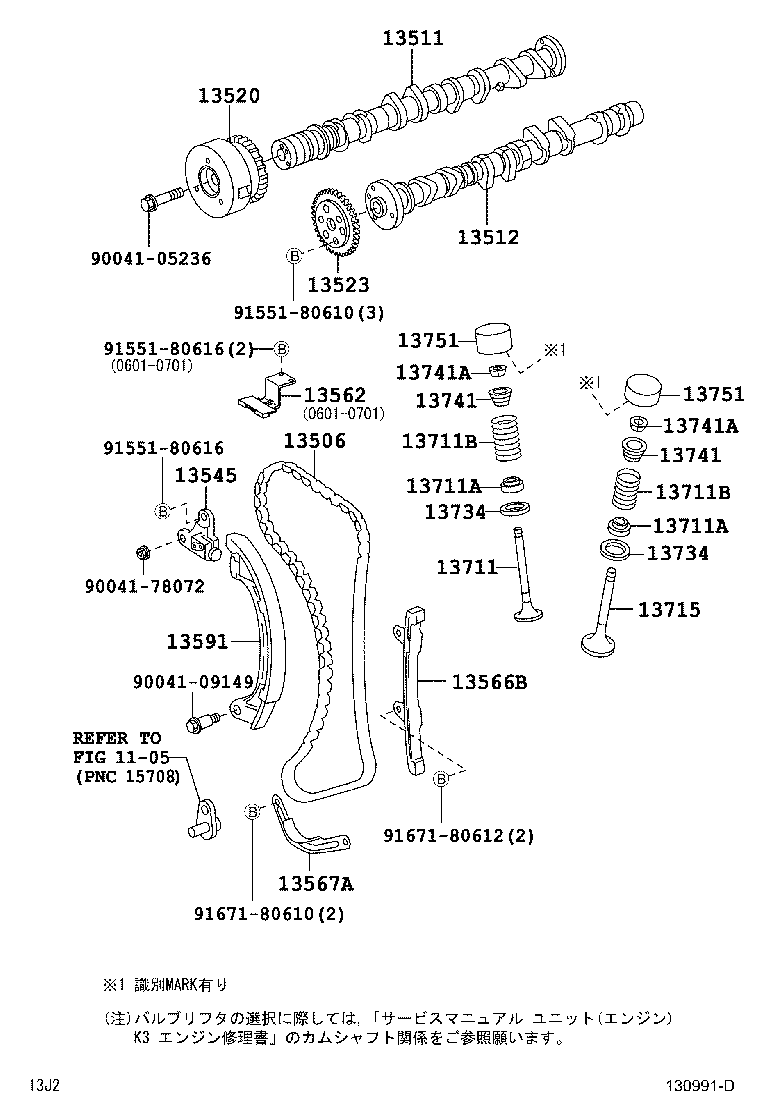

| Linked diagrams | ||||
| 1105 | ||||
