J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

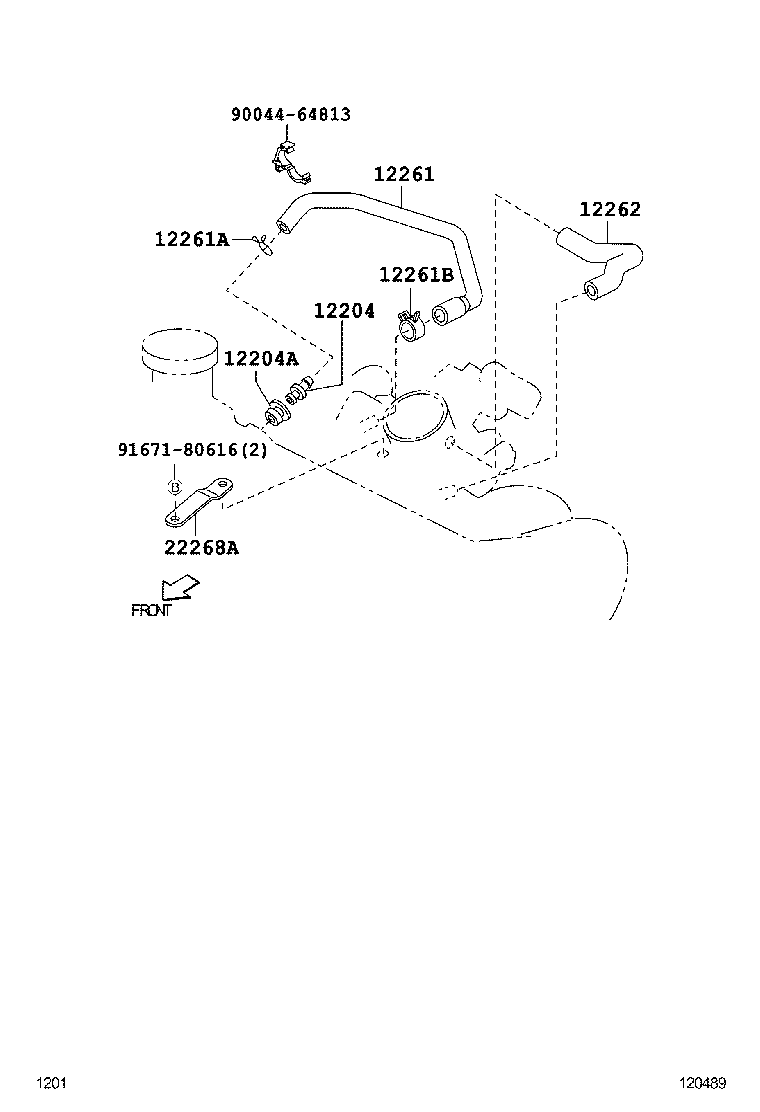

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261B 12262 22268A 9004464813 9167180616
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-97401

3SZVE..J200,210

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90044-80655

3SZVE..J200,210

 1
12261 - HOSE, VENTILATION
12261-B1010

3SZVE..J200,210

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

3SZVE..J200,210

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90044-67279

3SZVE..J200,210

 1
12262 - HOSE, VENTILATION, NO.2
12262-97401

3SZVE..J200,210

 1
22268A - BRACKET, THROTTLE BODY
22268-97401

3SZVE..J200,210

 1
Common parts
90044-64813
91671-80616
