J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)

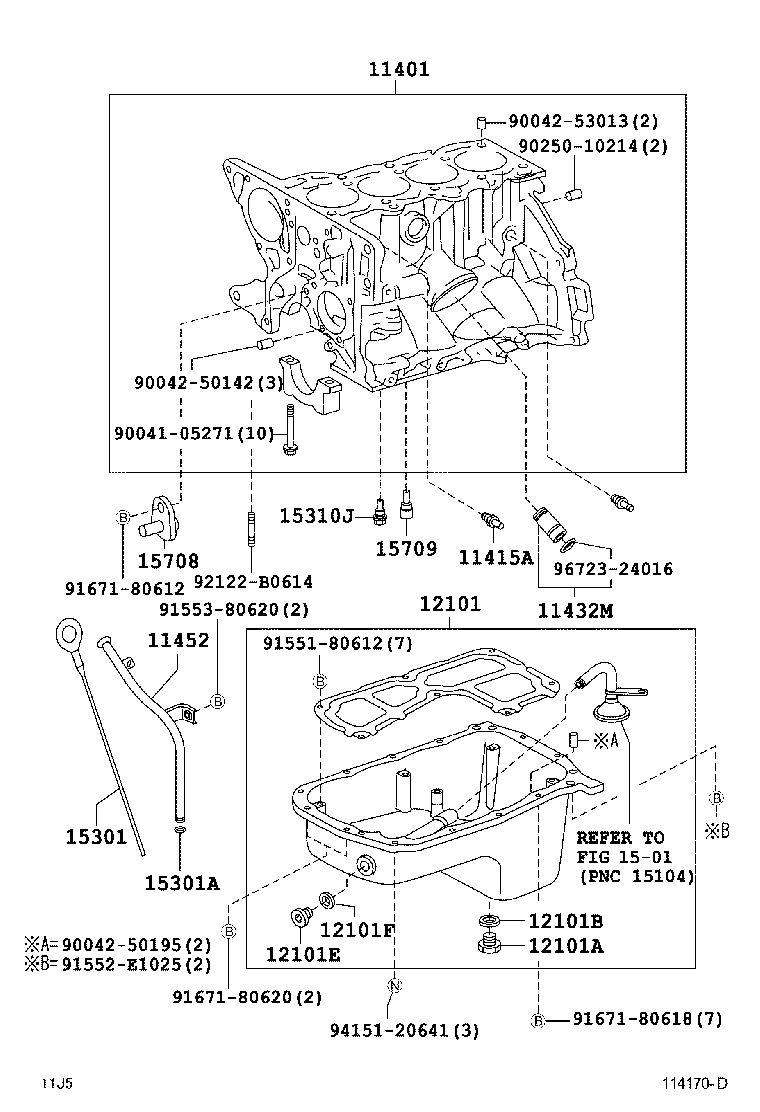

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B1020 |
3SZVE..J200,210 |
1 | ||
| 11401-B102010 |
3SZVE..J200,210 . |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90048-08005 |
3SZVE..J200,210 |
1 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| 90044-04120 |
3SZVE..J200,210 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-B1030 |
3SZVE..J200,210 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-B1030 |
3SZVE..J200,210 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41087 |
3SZVE..J200,210 |
1 | ||
| 90043-41041 |
3SZVE..J200,210 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
3SZVE..J200,210 |
1 | ||
| 12101E - PLUG, OIL PAN(FOR OIL COOLER) | ||||
| 90043-41076 |
3SZVE..J200,210 |
1 | ||
| 12101F - GASKET(FOR OIL COOLER) | ||||
| 90044-30290 |
3SZVE..J200,210 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B1040 |
3SZVE..J200,210 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96723-19010 |
3SZVE..J200,210 |
1 | ||
| 15310J - REGULATOR ASSY, OIL | ||||
| 15310-97401 |
3SZVE..J200,210 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-97402 |
3SZVE..J200,210 |
1 | ||
| 15709 - NOZZLE SUB-ASSY, OIL, NO.2 | ||||
| 15790-87201 |
3SZVE..J200,210 |
4 | ||
| Common parts | ||||
| 90041-05271 | ||||
| 90042-50142 | ||||
| 90042-50195 | ||||
| 90042-53013 | ||||
| 90250-10214 | ||||
| 91551-80612 | ||||
| 91552-E1025 | ||||
| 91553-80620 | ||||
| 91671-80612 | ||||
| 91671-80618 | ||||
| 91671-80620 | ||||
| 92122-B0614 | ||||
| 94151-20641 | ||||
| 96723-24016 | ||||
| Linked diagrams | ||||
| 1501 | ||||
