J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

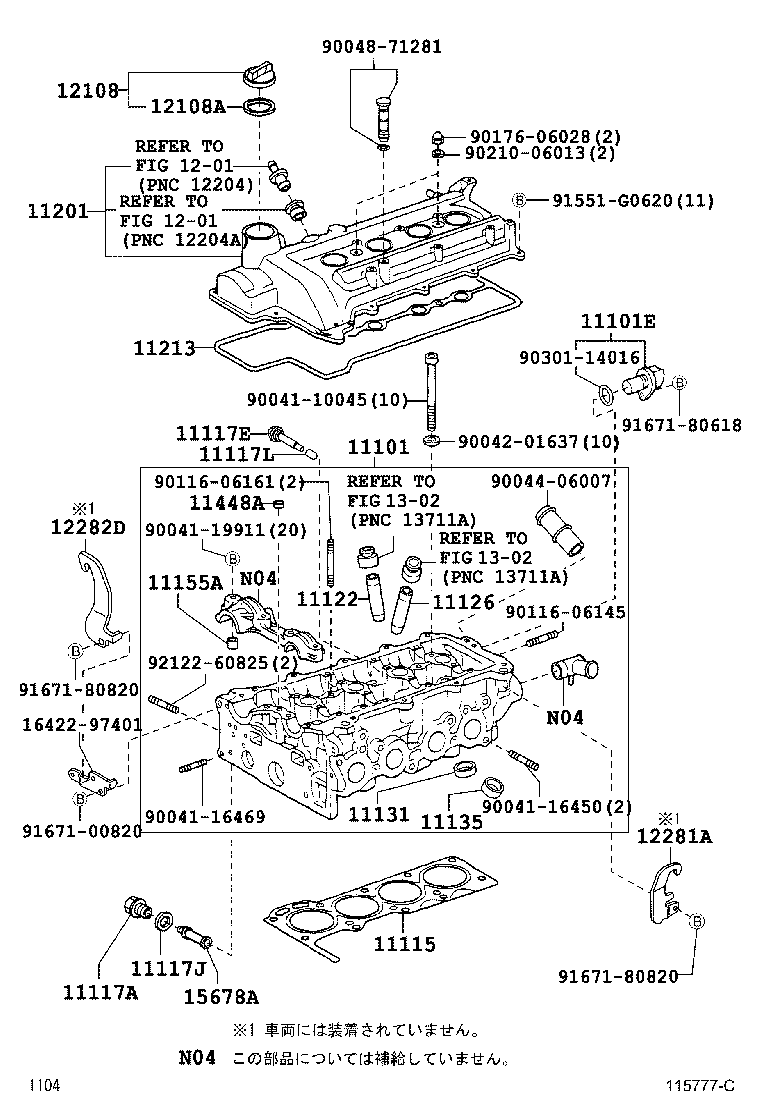

Click highlighted areas on diagram

diagram 11101 11101E 11115 11117A 11117E 11117J 11117L 11122 11126 11131 11135 11155A 11201 11213 11448A 1201 1201 12108 12108A 12281A 12282D 1302 1302 15678A 1642297401 9004110045 9004116450 9004116469 9004119911 9004201637 9004406007 9004871281 9011606145 9011606161 9017606028 9021006013 9030114016 91551G0620 9167100820 9167180618 9167180820 9167180820 9212260825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-B9140

3SZVE..J200,210

 1
11101-B9260

3SZVE..J200,210

 1
11101-B9240

3SZVE..J200,210

 1
11101E - SENSOR, CAM POSITION
90919-05024

3SZVE..J200,210

 1
11115 - GASKET, CYLINDER HEAD
11115-B1030

3SZVE..J200,210

厚さ=0.41,日本ｶﾞｽｹﾂﾄ

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14013

3SZVE..J200,210

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90043-39124

3SZVE..J200,210

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

3SZVE..J200,210

 1
11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2
90043-39129

3SZVE..J200,210

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-21010

3SZVE..J200,210

STD

 8
11123-21010

3SZVE..J200,210

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010

3SZVE..J200,210

O/S 0.05

 8
11122-21010

3SZVE..J200,210

STD

 8
11131 - SEAT, INTAKE VALVE
11131-23020

3SZVE..J200,210

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-23030

3SZVE..J200,210

STD

 8
11155A - PIN, RING W/HEAD
90042-53010

3SZVE..J200,210

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B1020

3SZVE..J200,210

 1
11201-B1021

3SZVE..J200,210

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-97401

3SZVE..J200,210

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-87201

3SZVE..J200,210

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97401

3SZVE..J200,210

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

3SZVE..J200,210

 1
12281A - HANGER, ENGINE, NO.1
12281-97401

3SZVE..J200,210

 1
12282D - HANGER, ENGINE, NO.2
12282-97403

3SZVE..J200,210

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

3SZVE..J200,210

 1
Common parts
16422-97401
90041-10045
90041-16450
90041-16469
90041-19911
90042-01637
90044-06007
90048-71281
90116-06145
90116-06161
90176-06028
90210-06013
90301-14016
91551-G0620
91671-00820
91671-80618
91671-80820
92122-60825
Linked diagrams
1201
1302
