Toyota Rush J210E ENGINE OVERHAUL GASKET KIT

Home Blog About Contact Search

J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008

Engine 3SZVE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

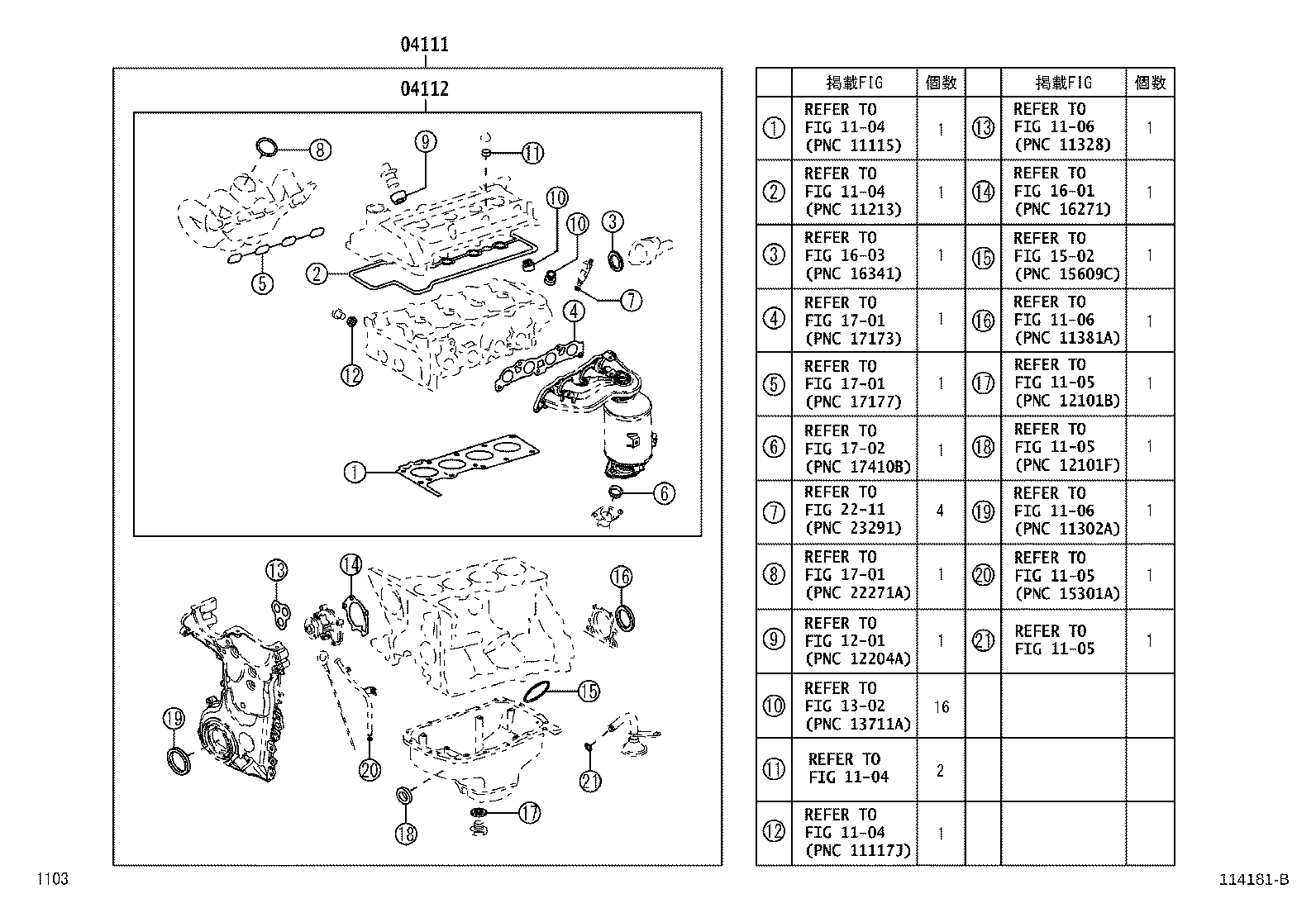

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-B1970	3SZVE..J200,210	01/2007 - 02/2007	1
04111-B1710	3SZVE..J200,210	01/2006 - 09/2006	1
04111-B1890	3SZVE..J200,210	09/2006 - 01/2007	1
04111-BA170	3SZVE..J200,210	03/2007 - 11/2008	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-B1480	3SZVE..J200,210	09/2006 - 11/2008	1
04112-B1380	3SZVE..J200,210	01/2006 - 09/2006	1
Linked diagrams
1104
1105
1106
1201
1302
1502
1601
1603
1701
1702
2211
