J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

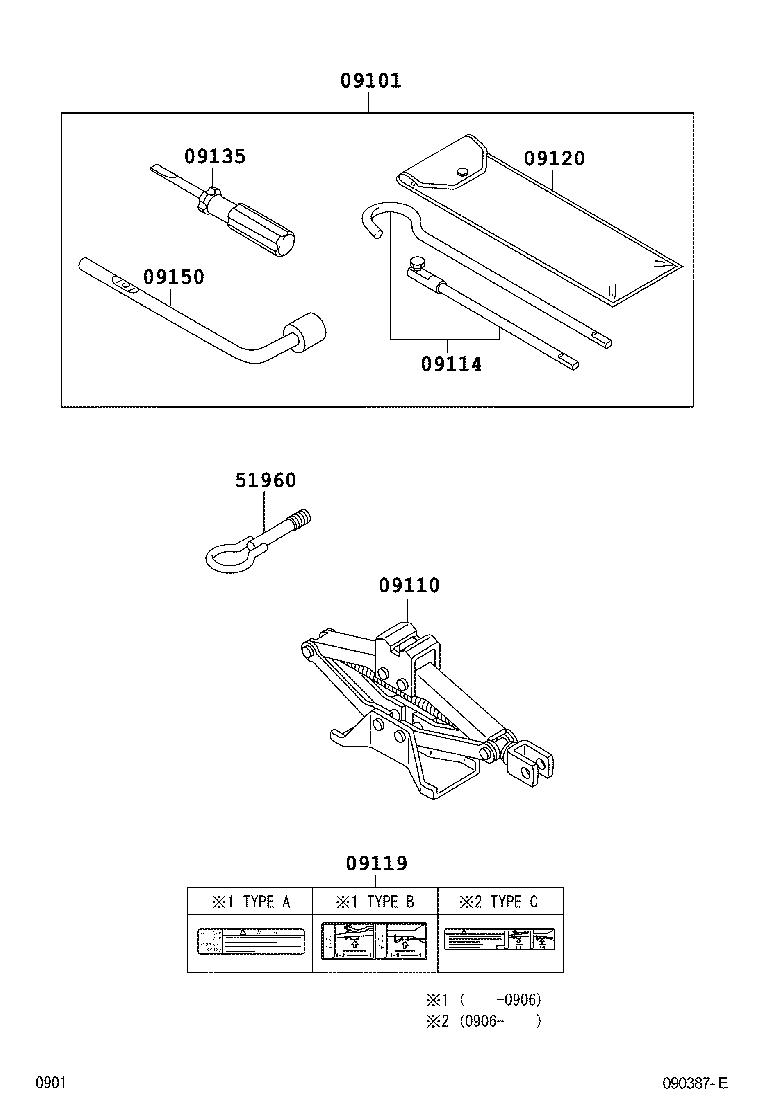

diagram 09101 09110 09114 09119 09120 09135 09150 51960
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-B4010

J200,210

 1
09110 - JACK ASSY
09111-B4010

J200,210

 1
09111-B4011

J200,210

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-B4010

J200,210

 1
09119 - LABEL, JACK CAUTION
09119-B4010

J200,210

ﾀｲﾌﾟ A

 1
09119-B4040

J200,210

ﾀｲﾌﾟ B

 1
09120 - BAG, TOOL
09120-B4010

J200,210

 1
09135 - DRIVER, SCREW
09135-B4010

J200,210

 1
09150 - WRENCH, HUB NUT BOX
09151-B4010

J200,210

 1
51960 - HOOK ASSY, FRONT
51960-B4010

J200,210

 2
