J200E-GQPF (2008)
Toyota Rush
Production
Nov 2008
-
May 2016
Engine
3SZVE
Transmission
E4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)

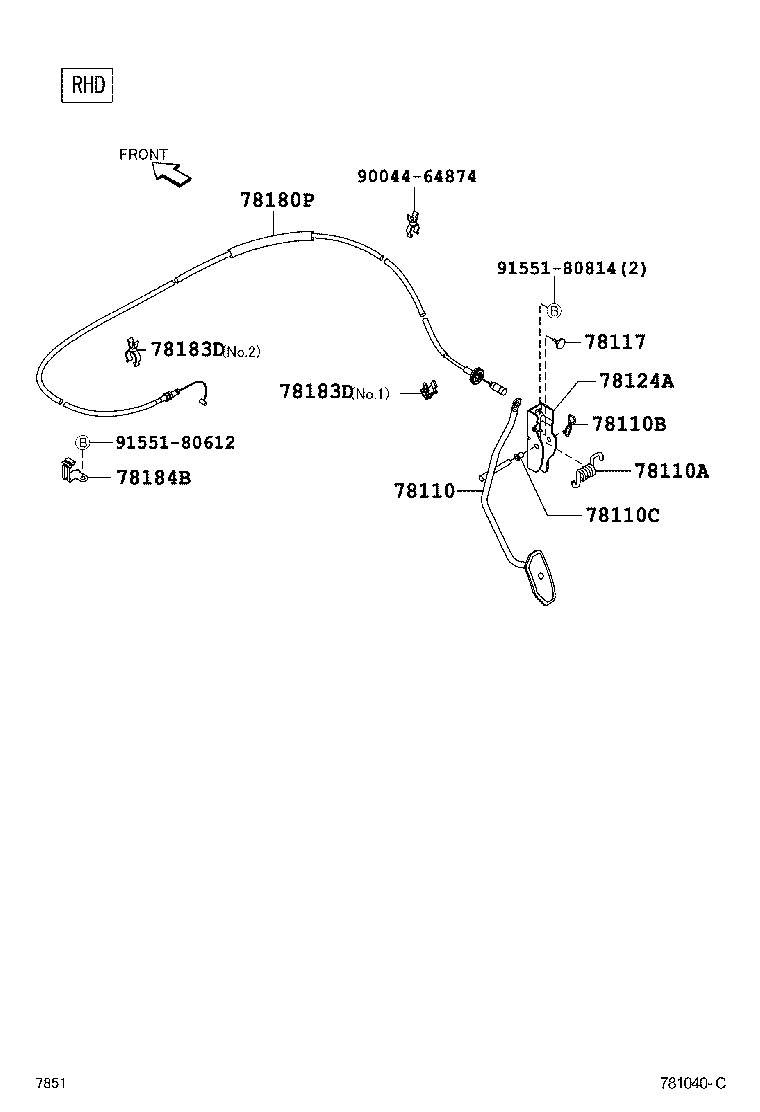

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78101-B4010 |
J200,210 |
1 | ||
| 78101-B4010 |
J200 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 78214-B4010 |
J200 |
1 | ||
| 78214-B4010 |
J200,210 |
1 | ||
| 78110B - CLIP, ACCELERATOR BELLCRANK | ||||
| 90044-68207 |
J200 |
1 | ||
| 90044-68207 |
J200,210 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90043-86112 |
J200 |
1 | ||
| 90043-86112 |
J200,210 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90045-40158 |
J200,210 |
1 | ||
| 90045-40158 |
J200 |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-B4010 |
J200,210 |
1 | ||
| 78124-B4010 |
J200 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-B4010 |
J200 |
1 | ||
| 78180-B4010 |
J200,210 |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90044-64815 |
J200,210 NO.2 |
1 | ||
| 90044-64693 |
J200,210 NO.1 |
1 | ||
| 90044-64693 |
J200 NO.1 |
1 | ||
| 90044-64815 |
J200 NO.2 |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90044-64815 |
J200,210 NO.2 |
1 | ||
| 90044-64693 |
J200,210 NO.1 |
1 | ||
| 90044-64693 |
J200 NO.1 |
1 | ||
| 90044-64815 |
J200 NO.2 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-B4010 |
J200,210 |
1 | ||
| 78184-B4010 |
J200 |
1 | ||
| Common parts | ||||
| 90044-64874 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
