J200E-GQGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission E4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

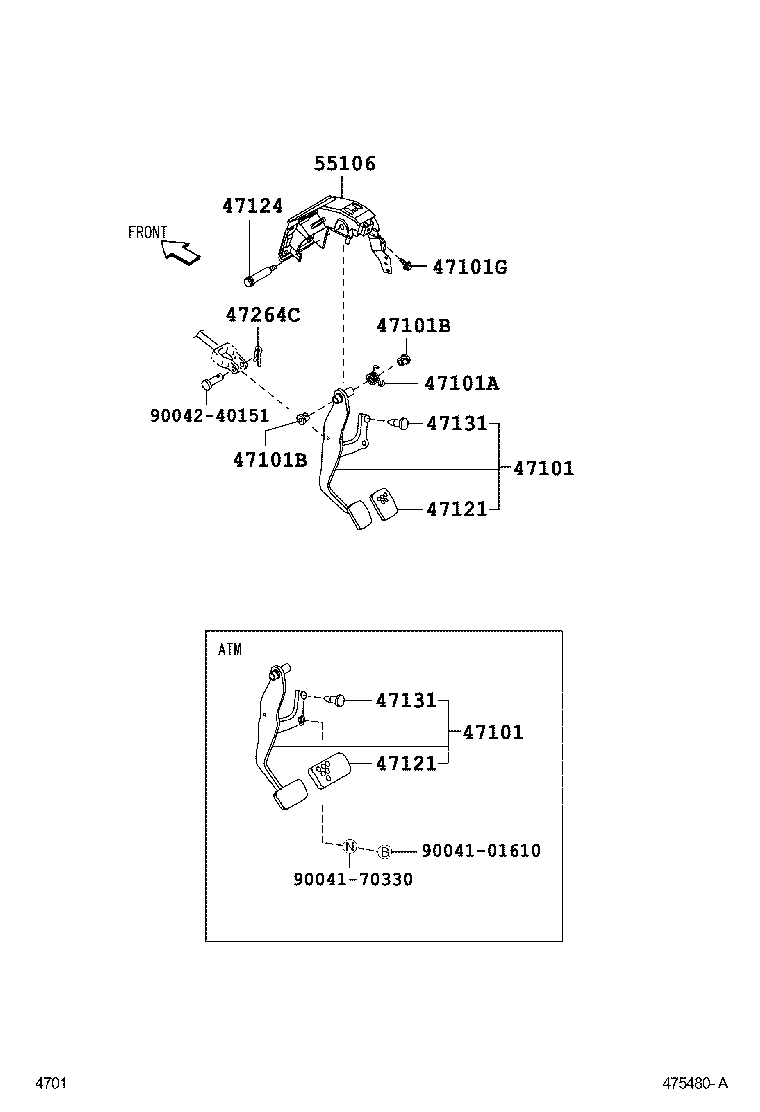

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101B 47101B 47101G 47121 47121 47124 47131 47131 47264C 55106 9004101610 9004170330 9004240151
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47110-B4020

J200,210..E4AT

 1
47101 - PEDAL SUB-ASSY, BRAKE
47110-B4020

J200,210..E4AT

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90045-08408

J200,210

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

J200,210

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

J200,210

 2
47101G - BOLT, BRAKE PEDAL STOP, NO.1
45898-B2010

J200,210

 1
47121 - PAD, BRAKE PEDAL
47121-87202

J200,210..E4AT

 1
47121 - PAD, BRAKE PEDAL
47121-87202

J200,210..E4AT

 1
47124 - SHAFT, BRAKE PEDAL
31324-B2010

J200,210

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

J200,210

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

J200,210

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

J200,210

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-B4010

J200,210

 1
Common parts
90041-01610
90041-70330
90042-40151
